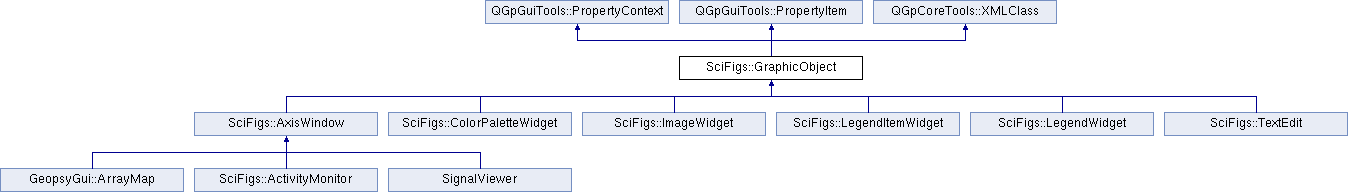

The GraphicObject is the base class for all children of a GraphicSheet. More...
#include <GraphicObject.h>
Public Types | |
| enum | PositionAnchor { XMask = 1, YMask = 2, TopLeft = 3, TopRight = 2, BottomLeft = 1, BottomRight = 0 } |
Public Slots | |
| void | copy () |
| void | copyImage (int dpi=0) |
| void | copyMakeUp () |
| virtual void | deepUpdate () |
| void | deleteObject () |
| void | exportImage (QString fileName=QString::null, QString imageFormat=QString::null, int dpi=0) |
| QPixmap | image (int dpi=0) |
| void | keyPopupMenu () |
| void | pasteMakeUp () |
| void | print (int dpi=0) |
| void | print (bool outputToFile, QString name, int dpi) |
| void | restoreMakeUp (QString fileName=QString::null) |
| void | saveMakeUp (QString fileName=QString::null) |
| void | savePage (QString fileName=QString::null) |
| void | showProperties () |
| virtual void | update () |
| virtual void | updateGeometry () |
Signals | |
| void | dragged (Point2D delta) |
| void | positionChanged () |
| void | sizeChanged () |
| void | wantToBeSelected (GraphicObject *, Qt::KeyboardModifiers) |
| void | wantToStartDragging () |
Public Member Functions | |
| GraphicObject * | activeObject (const char *className=0) const |
| virtual void | addProperties (PropertyProxy *pp) |
| PositionAnchor | anchor () const |
| QString | anchorString () const |
| bool | constantWidthHeightRatio () const |
| void | drag (Point2D delta) |
| GraphicObject (QWidget *parent=0, Qt::WFlags f=0) | |
| bool | isActive () const |
| bool | isRemovable () |
| bool | isSelected () const |
| GraphicObject & | operator= (const GraphicObject &o) |
| virtual void | polish () |
| void | print (QPrinter &printer) |
| double | printBottom (double refHeight=0.0) const |
| double | printBottomMargin () const |
| double | printHeight () const |
| double | printLeft (double refWidth=0.0) const |
| double | printLeftMargin () const |
| int | printResolution () const |
| double | printRight (double refWidth=0.0) const |
| double | printRightMargin () const |
| double | printTop (double refHeight=0.0) const |
| double | printTopMargin () const |
| double | printWidth () const |
| double | printXAnchor () const |
| double | printYAnchor () const |
| virtual void | properties (PropertyWidget *w) const |
| PropertyProxy * | proxy () const |
| virtual void | removeProperties (PropertyProxy *pp) |
| SelectionWidget * | selectionWidget () const |
| void | setActive (Qt::KeyboardModifiers m) |
| void | setAnchor (PositionAnchor pa) |
| void | setAnchor (QString pa) |
| void | setConstantWidthHeightRatio (bool c) |
| virtual void | setObjectName (QString name) |
| bool | setOrderIndex (int index) |
| void | setPrintAnchor (Point2D pos) |
| void | setPrintBottom (double val) |
| void | setPrintBottomMargin (double val) |
| void | setPrintHeight (double val) |
| void | setPrintLeft (double val) |
| void | setPrintLeftMargin (double val) |
| void | setPrintResolution (int val) |
| void | setPrintRight (double val) |
| void | setPrintRightMargin (double val) |
| void | setPrintTop (double val) |
| void | setPrintTopMargin (double val) |
| void | setPrintWidth (double val) |
| void | setPrintXAnchor (double val) |
| void | setPrintYAnchor (double val) |
| virtual void | setProperty (uint wid, int pid, QVariant val) |
| void | setRemovable (bool r) |
| void | setSelected (SelectionWidget *s) |
| void | setToolTip (const QString &t) |
| void | setTransparency (int val) |
| void | setTransparentMask (bool val) |
| GraphicSheet * | sheet () |
| virtual QSize | sizeHint () const |
| void | startDragging () |
| int | transparency () const |
| bool | transparentMask () const |
| void | updateGeometryProperties (PropertyProxy *pp) |
| virtual const QString & | xml_tagName () const |
| ~GraphicObject () | |
Static Public Member Functions | |
| static QBitmap | colorMask (const QPixmap &pixmap, uint blankColor) |
| static int | scaleFont (QFont &f, double scale, bool *changed=0) |
Static Public Attributes | |
| static const QString | allImageFilter = ";;" + GraphicObject::pixelImageFilter |
| static const QString | pixelImageFilter = "PNG (*.png);;PPM (*.ppm);;XBM (*.xbm);;XPM (*.xpm)" |
| static const QString | vectorialImageFilter = "PS (*.ps);;PDF (*.pdf);;SVG (*.svg)" |
| static const QString | xmlGraphicObjectTag = "GraphicObject" |
Protected Member Functions | |
| virtual void | addActions () |
| virtual void | enterEvent (QEvent *e) |
| virtual void | leaveEvent (QEvent *e) |
| virtual void | mouseDoubleClickEvent (QMouseEvent *e) |
| virtual void | mouseMoveEvent (QMouseEvent *e) |
| virtual void | mousePressEvent (QMouseEvent *e) |
| virtual void | mouseReleaseEvent (QMouseEvent *e) |
| virtual void | paint (QPainter &p, double dotpercm, int w, int h, bool mask) |
| virtual void | paintEvent (QPaintEvent *e) |
| virtual void | print (QPainter &p, double dotpercm, int x0Sheet, int y0Sheet, bool mask) |
| void | printSvg (const QString &fileName, int dpi) |
| virtual void | restoreScaleFonts (int *fontSizeStorage) |
| virtual int * | scaleFonts (double scale) |
| int | scaleWidgetFonts (QWidget *w, double scale) |
| virtual void | setPrintSize (double dotpercm) |
| virtual void | showEvent (QShowEvent *e) |
| void | updateMask () |
| virtual XMLMember | xml_member (XML_MEMBER_ARGS) |
| virtual void | xml_polish (XML_POLISH_ARGS) |
| virtual bool | xml_setProperty (XML_SETPROPERTY_ARGS) |
| virtual void | xml_writeProperties (XML_WRITEPROPERTIES_ARGS) const |
Protected Attributes | |
| PositionAnchor | _anchor |
| Point2D | _printAnchor |
| double | _printBottomMargin |
| double | _printHeight |
| double | _printLeftMargin |
| double | _printRightMargin |
| double | _printTopMargin |
| double | _printWidth |
Properties | |
| QString | anchor |
| bool | constantWidthHeightRatio |
| DUMMY_PROPERTIES | |
| QString | name |
| QString | objectName |
| double | printBottomMargin |
| double | printHeight |
| double | printLeftMargin |
| int | printResolution |
| double | printRightMargin |
| double | printTopMargin |
| double | printWidth |
| double | printX |
| double | printY |
| int | transparency |
| bool | transparentMask |
Friends | |
| class | GraphicSheet |
| class | SelectionWidget |
The GraphicObject is the base class for all children of a GraphicSheet.
GraphicObject handles main geometric properties of objects (position, size, margins, printing resolution and user name). It works with two modes:
In the first mode, it responds only to mouse click events to display its general context menu containing (also available through CTRL+M):
In the second mode, the same actions are supported, but the following menu items are added:
Moreover, the mouse clicks are handled to move and to select the object in the sheet. Multiple selections are supported with the SHIFT key.
The selected object is marked by a SelectionWidget that is slightly larger than this object, showing a black (active selection) or grey (passive selection) border. The mouse events on the border are redirected to this object. Usually, it is not necessary to use it explicitely. See setSelected(), selected(), active(), activeObject().
The margins are useful when exporting to bitmaps or when the object is located close to the edge of a GraphicSheet. It extends the printing or image size by a few millimeters. Units for margins are always cm. See printLeftMargin(), printRightMargin(), printTopMargin(), printBottomMargin(), and setPrintLeftMargin(), setPrintRightMargin(), setPrintTopMargin(), setPrintBottomMargin().
{XMask=1, YMask=2, TopLeft=3, TopRight=2, BottomLeft=1, BottomRight=0};
| SciFigs::GraphicObject::GraphicObject | ( | QWidget * | parent = 0, |
| Qt::WFlags | f = 0 |
||
| ) |
Construct a generic graphical object. This function is generally not called directly. Use one of the derived objects (AxisWindow, TextEdit, ImageWidget, ColorPaletteWidget).
References _anchor, _printAnchor, _printBottomMargin, _printHeight, _printLeftMargin, _printRightMargin, _printTopMargin, _printWidth, keyPopupMenu(), QGpGuiTools::setWidgetColor(), TopLeft, QGpCoreTools::tr(), and TRACE.
:
QWidget(parent, f)
{
TRACE;
_selected=0;
_sheet=0;
_orderTip=0;
_isRemovable=false;
new QShortcut(tr( "Ctrl+M" ), this, SLOT(keyPopupMenu()) );
setWidgetColor(this, Qt::white);
setAttribute(Qt::WA_DeleteOnClose);
// Just a test to check if mask still necessary or directly implemented in Qt
// setAttribute(Qt::WA_OpaquePaintEvent);
_printAnchor=Point2D(1.0, 1.0);
_anchor=TopLeft;
_printWidth=5.0;
_printHeight=5.0;
_constantWidthHeightRatio=false;
_printResolution=300;
_printLeftMargin=0.5;
_printRightMargin=0.5;
_printTopMargin=0.5;
_printBottomMargin=0.5;
_transparency=255;
_mask=false;
}
| GraphicObject * SciFigs::GraphicObject::activeObject | ( | const char * | className = 0 | ) | const |
Return the active object of the parent GraphicSheet.
References SciFigs::GraphicSheet::activeObject(), and TRACE.
Referenced by keyPopupMenu().
{
TRACE;
return _sheet->activeObject(className);
}
| void SciFigs::GraphicObject::addActions | ( | ) | [protected, virtual] |
Initialize context menu
References copy(), copyImage(), copyMakeUp(), deleteObject(), exportImage(), isRemovable(), pasteMakeUp(), print(), restoreMakeUp(), saveMakeUp(), savePage(), sheet(), showProperties(), QGpCoreTools::tr(), and TRACE.
Referenced by polish().
{
TRACE;
QAction * a;
a=new QAction(tr( "&Properties" ), this);
a->setObjectName( "Properties" );
a->setStatusTip(tr("Set properties of object"));
a->setShortcut(tr("Ctrl+Alt+P"));
a->setShortcutContext(Qt::WidgetShortcut);
connect(a, SIGNAL(triggered( bool) ) , this, SLOT(showProperties()) );
QWidget::addAction(a);
if(sheet()) {
a=new QAction(this);
a->setSeparator(true);
QWidget::addAction(a);
QMenu * m=new QMenu(this);
m->addAction(tr( "Bring to &front" ), sheet(), SLOT(raiseSelection()) );
m->addAction(tr( "Send to &back" ), sheet(), SLOT(lowerSelection()) );
a=new QAction(tr( "&Order" ), this);
a->setObjectName( "Order" );
a->setMenu(m);
QWidget::addAction(a);
m=new QMenu(this);
m->addAction(tr( "&Left" ), sheet(), SLOT(alignLeft()) );
m->addAction(tr( "&Centered" ), sheet(), SLOT(alignHCenter()) );
m->addAction(tr( "&Right" ), sheet(), SLOT(alignRight()) );
m->addSeparator();
m->addAction(tr( "&Top" ), sheet(), SLOT(alignTop()) );
m->addAction(tr( "C&entered" ), sheet(), SLOT(alignVCenter()) );
m->addAction(tr( "&Bottom" ), sheet(), SLOT(alignBottom()) );
a=new QAction(tr( "&Alignment" ), this);
a->setObjectName( "Alignment" );
a->setMenu(m);
QWidget::addAction(a);
if(isRemovable()) {
a=new QAction(tr( "&Delete" ), this);
a->setObjectName( "Delete" );
connect(a, SIGNAL(triggered( bool) ) , this, SLOT(deleteObject()) );
QWidget::addAction(a);
}
}
a=new QAction(this);
a->setSeparator(true);
QWidget::addAction(a);
a=new QAction(tr("&Copy"), this);
a->setStatusTip(tr("Copy this object to the clipboard (compatible with figue)"));
connect(a, SIGNAL(triggered(bool)) , this, SLOT(copy()));
QWidget::addAction(a);
a=new QAction(tr("Copy &image"), this);
a->setStatusTip(tr("Copy this object as an image to the clipboard (compatible with office suites)"));
connect(a, SIGNAL(triggered(bool)) , this, SLOT(copyImage()));
QWidget::addAction(a);
a=new QAction(tr( "Save as a page" ), this);
a->setObjectName( "Save as a page" );
a->setStatusTip(tr("Save this object as a page file. Open and edit it with figue."));
connect(a, SIGNAL(triggered(bool)), this, SLOT(savePage()));
QWidget::addAction(a);
a=new QAction(tr( "&Export image as ..." ), this);
a->setObjectName( "Export image" );
a->setStatusTip(tr("Export this object as an image (PNG, JPG, PS, PDF,...). Adjust resolution in object properties."));
connect( a, SIGNAL(triggered(bool)) , this, SLOT(exportImage()));
QWidget::addAction(a);
a=new QAction(tr( "&Print" ), this);
a->setObjectName( "Print" );
connect(a, SIGNAL(triggered( bool) ) , this, SLOT(print()) );
QWidget::addAction(a);
a=new QAction(this);
a->setSeparator(true);
QWidget::addAction(a);
a=new QAction(tr("&Copy make-up"), this);
a->setObjectName("Copy make-up");
a->setStatusTip(tr("Copy object format to the clipboard"));
connect(a, SIGNAL(triggered(bool)) , this, SLOT(copyMakeUp()));
QWidget::addAction(a);
a=new QAction(tr("&Paste make-up"), this);
a->setObjectName("Paste make-up");
a->setStatusTip(tr("Restore object format from the clipboard"));
connect(a, SIGNAL(triggered(bool)) , this, SLOT(pasteMakeUp()));
QWidget::addAction(a);
a=new QAction(tr( "&Save make-up" ), this);
a->setObjectName( "Save make-up" );
a->setStatusTip(tr("Save object format to a file"));
connect(a, SIGNAL(triggered( bool)) , this, SLOT(saveMakeUp()));
QWidget::addAction(a);
a=new QAction(tr( "&Restore make-up" ), this);
a->setObjectName( "Restore make-up" );
a->setStatusTip(tr("Restore object format from a file"));
connect(a, SIGNAL(triggered(bool)), this, SLOT(restoreMakeUp()));
QWidget::addAction(a);
}
| void SciFigs::GraphicObject::addProperties | ( | PropertyProxy * | pp | ) | [virtual] |
Reimplemented in SciFigs::LegendWidget, SciFigs::ColorPaletteWidget, SciFigs::AxisWindow, SciFigs::TextEdit, and SciFigs::ImageWidget.
References QGpGuiTools::PropertyProxy::addCategory(), QGpGuiTools::PropertyProxy::addReference(), QGpGuiTools::PropertyProxy::addTab(), QGpGuiTools::PropertyProxy::setCurrentCategory(), QGpGuiTools::PropertyProxy::setCurrentTab(), QGpCoreTools::tr(), TRACE, and w.
Referenced by SciFigs::GraphicSheet::selectObjects(), showProperties(), and SciFigs::GraphicSheet::showProperties().
{
TRACE;
if( !pp->setCurrentCategory(_category) ) {
pp->addCategory(_category, tr("Object"), QIcon( ":/images/graphicobject.png"));
}
if(pp->setCurrentTab(_tabId)) {
pp->addReference(this);
} else {
GraphicObjectIdProperties * w=new GraphicObjectIdProperties;
pp->addTab(_tabId, tr("Identification"), w, this);
}
if(pp->setCurrentTab(_tabGeomery)) {
pp->addReference(this);
} else {
GraphicObjectGeometryProperties * w=new GraphicObjectGeometryProperties;
pp->addTab(_tabGeomery, tr("Geometry"), w, this);
}
if(pp->setCurrentTab(_tabPrint)) {
pp->addReference(this);
} else {
GraphicObjectPrintProperties * w=new GraphicObjectPrintProperties;
pp->addTab(_tabPrint, tr("Print"), w, this);
}
}
| PositionAnchor SciFigs::GraphicObject::anchor | ( | ) | const [inline] |
Referenced by anchorString(), and properties().
{return _anchor;}
| QString SciFigs::GraphicObject::anchorString | ( | ) | const |
References anchor(), BottomLeft, BottomRight, TopRight, and TRACE.
{
TRACE;
switch (anchor()) {
case TopRight:
return "TopRight";
case BottomLeft:
return "BottomLeft";
case BottomRight:
return "BottomRight";
default:
return "TopLeft";
}
}
| QBitmap SciFigs::GraphicObject::colorMask | ( | const QPixmap & | pixmap, |
| uint | blankColor | ||
| ) | [static] |
References TRACE, TRACE_BUG, TRACE_BUG_INT, TRACE_BUG_N, and TRACE_BUG_POINTER.
Referenced by image(), SciFigs::GraphicSheet::image(), and updateMask().
{
TRACE;
int nHeight=pixmap.height();
int nWidth=pixmap.width();
TRACE_BUG;
TRACE_BUG_INT(nWidth);
TRACE_BUG_INT(nHeight);
QBitmap pmask(nWidth, nHeight);
TRACE_BUG_N(1);
if(nWidth==0 || nHeight==0) {
return pmask;
}
QImage mask(nWidth, nHeight, QImage::Format_Mono);
QImage imPixmap=pixmap.toImage();
int nWidth8=nWidth-8;
TRACE_BUG_N(2);
for(int ih=0; ih<nHeight; ih++) {
TRACE_BUG_N(5);
TRACE_BUG_INT(ih);
uint * bPixmap=(uint* ) imPixmap.scanLine(ih);
TRACE_BUG_POINTER(bPixmap);
uchar * bmask=mask.scanLine(ih);
TRACE_BUG_POINTER(bmask);
int im=0, iw=0;
uchar maskByte;
TRACE_BUG_N(6);
while(iw < nWidth8) {
maskByte=0;
if(bPixmap[ iw ]==blankColor) maskByte += 0x80;
if(bPixmap[ iw + 1 ]==blankColor) maskByte += 0x40;
if(bPixmap[ iw + 2 ]==blankColor) maskByte += 0x20;
if(bPixmap[ iw + 3 ]==blankColor) maskByte += 0x10;
if(bPixmap[ iw + 4 ]==blankColor) maskByte += 0x08;
if(bPixmap[ iw + 5 ]==blankColor) maskByte += 0x04;
if(bPixmap[ iw + 6 ]==blankColor) maskByte += 0x02;
if(bPixmap[ iw + 7 ]==blankColor) maskByte += 0x01;
bmask[ im ]=maskByte;
iw += 8;
im++;
}
uchar maskBit=0x80;
maskByte=0;
TRACE_BUG_N(7);
while(iw < nWidth) {
ASSERT(maskBit);
if(bPixmap[ iw++ ]==blankColor) maskByte += maskBit;
maskBit=maskBit >> 1;
}
bmask[ im ]=maskByte;
TRACE_BUG_N(8);
}
TRACE_BUG_N(3);
pmask=QBitmap::fromImage(mask);
TRACE_BUG_N(4);
return pmask;
}
| bool SciFigs::GraphicObject::constantWidthHeightRatio | ( | ) | const [inline] |
Referenced by properties(), and setProperty().
{return _constantWidthHeightRatio;}
| void SciFigs::GraphicObject::copy | ( | ) | [slot] |
Copy this object to the clipboard
References SciFigs::XMLSciFigs::Page, SciFigs::XMLSciFigs::saveByteArray(), and TRACE.
Referenced by addActions().
{
TRACE;
QClipboard * cb=QApplication::clipboard();
XMLSciFigs s;
QByteArray object=s.saveByteArray(this, XMLSciFigs::Page);
QMimeData * mime=new QMimeData;
mime->setData("XMLSciFigs::Page", object);
cb->setMimeData(mime, QClipboard::Clipboard);
}
| void SciFigs::GraphicObject::copyImage | ( | int | dpi = 0 | ) | [slot] |
Transform object into a pixmap and copy it to the clipboard
References image(), and TRACE.
Referenced by addActions().
| void SciFigs::GraphicObject::copyMakeUp | ( | ) | [slot] |
Copy make-up to the clipboard
References SciFigs::XMLSciFigs::MakeUp, SciFigs::MakeUpFilter::saveByteArray(), SciFigs::XMLSciFigs::saveString(), SciFigs::MakeUpFilter::setXml(), and TRACE.
Referenced by addActions().
{
TRACE;
XMLSciFigs s;
MakeUpFilter * d=new MakeUpFilter(this);
d->setXml(s.saveString(this, XMLSciFigs::MakeUp));
if(d->exec()==QDialog::Accepted) {
QClipboard * cb=QApplication::clipboard();
QMimeData * mime=new QMimeData;
mime->setData("XMLSciFigs::ObjectMakeUp", d->saveByteArray());
cb->setMimeData(mime, QClipboard::Clipboard);
}
}
| virtual void SciFigs::GraphicObject::deepUpdate | ( | ) | [inline, virtual, slot] |
Reimplemented in SciFigs::AxisWindow, and SciFigs::ColorPaletteWidget.
Referenced by SciFigs::GraphicSheet::deepUpdate(), pasteMakeUp(), and LinearFKActiveResults::stackGrids().
{update();}
| void SciFigs::GraphicObject::deleteObject | ( | ) | [slot] |
Delete all selected object after confirmation from the user . It is not working if not docked in a sheet.
References isRemovable(), MSG_ID, SciFigs::GraphicSheet::removeObject(), SciFigs::GraphicSheet::selectedObjects(), QGpCoreTools::tr(), and TRACE.
Referenced by addActions(), and SciFigs::GraphicSheet::cut().
{
TRACE;
if( !_sheet) return ;
QList<GraphicObject *> tmpList=_sheet->selectedObjects<GraphicObject *>();
if(tmpList.isEmpty()) {
Message::warning(MSG_ID, tr( "Deleting objects" ), tr( "Empty selection." ), Message::ok());
return;
}
// Count removable objects
int nToRemove=0;
GraphicObject * obj;
foreach(obj, tmpList) {
if(obj->isRemovable()) nToRemove++;
}
if (tmpList.count()>nToRemove) {
static QString title=tr("Deleting objects");
switch(nToRemove) {
case 0:
if(tmpList.count()==1) {
Message::warning(MSG_ID, title,
tr("This object is not removable.")
.arg(tmpList.count()), Message::ok(), true);
} else {
Message::warning(MSG_ID, title,
tr("These %1 objects are not removable.")
.arg(tmpList.count()), Message::ok(), true);
}
break;
case 1:
Message::warning(MSG_ID, title,
tr("Only 1 object out of %2 selected is removable.")
.arg(tmpList.count()), Message::ok(), true);
break;
default:
Message::warning(MSG_ID, title,
tr("Only %1 objects out of %2 selected are removable.")
.arg(nToRemove).arg( tmpList.count()), Message::ok(), true);
break;
}
if (nToRemove==1) {
Message::warning(MSG_ID, tr("Deleting objects"),
tr("Only 1 object out of %2 selected are removable.")
.arg(tmpList.count()), Message::ok(), true);
} else {
Message::warning(MSG_ID, tr( "Deleting objects"),
tr( "Only %1 objects out of %2 selected are removable.")
.arg(nToRemove).arg( tmpList.count()), Message::ok(), true);
}
}
switch(nToRemove) {
case 0:
break;
case 1:
if(Message::warning(MSG_ID, "Deleting objects",
tr( "Do you really want to delete 1 object?" ),
Message::no() , Message::yes())==Message::Answer0) {
return;
}
break;
default:
if(Message::warning(MSG_ID, "Deleting objects",
tr( "Do you really want to delete %1 objects?" ).arg(nToRemove),
Message::no() , Message::yes())==Message::Answer0) {
return;
}
break;
}
foreach(obj, tmpList) _sheet->removeObject(obj);
}
| void SciFigs::GraphicObject::drag | ( | Point2D | delta | ) |
References setPrintAnchor(), and TRACE.
{
TRACE;
setPrintAnchor(_oldPrintPos + delta);
}
| void SciFigs::GraphicObject::dragged | ( | Point2D | delta | ) | [signal] |
Referenced by mouseMoveEvent().
| void SciFigs::GraphicObject::enterEvent | ( | QEvent * | e | ) | [protected, virtual] |
References SciFigs::GraphicSheet::addSelection(), SciFigs::SelectionWidget::Hoover, selectionWidget(), SciFigs::SelectionWidget::setState(), sheet(), TRACE, TRACE_BUG, TRACE_BUG_N, and TRACE_BUG_POINTER.
{
TRACE;
TRACE_BUG;
// 2012-12-05: reccursion still observed under Mac
if(antiReccurFlag) {
antiReccurFlag=false;
if (sheet() && !selectionWidget()) {
sheet()->addSelection(this);
// Here and not in addSelection(), bug observed with Qt 4.6 under Mac, show() calls GraphicObject::enterEvent()
ASSERT(_selected);
TRACE_BUG_N(1);
TRACE_BUG_POINTER(this);
_selected->setState(SelectionWidget::Hoover);
TRACE_BUG_N(2);
_selected->show();
TRACE_BUG_N(3);
}
antiReccurFlag=true;
}
}
| void SciFigs::GraphicObject::exportImage | ( | QString | fileName = QString::null, |
| QString | imageFormat = QString::null, |
||
| int | dpi = 0 |
||
| ) | [slot] |
Export the object to an image file, imageFormat may be any of the format accetped by QImage. Additionally, the 'PS' and 'PDF' are accepted.
If dpi is different from 0, it override the resolution specified in object properties.
References allImageFilter, image(), MSG_ID, print(), printSvg(), DinverCore::qHash(), QGpCoreTools::tr(), TRACE, transparentMask(), and updateMask().
Referenced by addActions().
{
TRACE;
if(fileName.isEmpty()) {
fileName=Message::getSaveFileName(tr( "Export image as ..." ), allImageFilter);
}
if(fileName.length() > 0) {
if(imageFormat.isEmpty()) {
imageFormat=Settings::getFilter( "filter-" + QString::number(qHash( allImageFilter) )).
section( ' ', 0, 0);
}
if(imageFormat =="PS" || imageFormat =="PDF" ) {
QPrinter printer(QPrinter::HighResolution);
if(dpi==0) dpi=_printResolution;
printer.setResolution(dpi);
printer.setFullPage(true);
printer.setOutputFileName(fileName);
printer.setOutputFormat(imageFormat =="PDF" ? QPrinter::PdfFormat : QPrinter::PostScriptFormat);
print(printer);
} else if(imageFormat =="SVG" ) {
printSvg(fileName, dpi);
} else {
QPixmap pixmap=image(dpi);
if(!pixmap.isNull()) {
// Save pixmap to disk
if(!pixmap.save(fileName, imageFormat.toAscii().data())) {
Message::warning(MSG_ID, tr("Exporting as image"), tr("Failed to export image to file %1 with format %2")
.arg(fileName).arg(imageFormat.toAscii().data()));
}
}
if(transparentMask()) updateMask();
}
}
}
| QPixmap SciFigs::GraphicObject::image | ( | int | dpi = 0 | ) | [slot] |
References _printBottomMargin, _printHeight, _printLeftMargin, _printRightMargin, _printTopMargin, _printWidth, colorMask(), MSG_ID, objectName, print(), printLeft(), printTop(), restoreScaleFonts(), scaleFonts(), SciFigs::SciFigsGlobal::screenResolution(), setPrintSize(), QGpCoreTools::tr(), TRACE, and transparentMask().
Referenced by copyImage(), and exportImage().
{
TRACE;
double resolution;
if(dpi==0) resolution=_printResolution/2.54;
else resolution=dpi/2.54;
double factor=resolution/SciFigsGlobal::screenResolution();
double hMargins=_printLeftMargin + _printRightMargin;
double vMargins=_printTopMargin + _printBottomMargin;
int * tmpSize=scaleFonts(factor);
setPrintSize(resolution);
int totalw=(int)((_printWidth+hMargins)*resolution);
int totalh=(int)((_printHeight+vMargins)*resolution);
QPixmap pixmap;
if(totalw>0 && totalh>0) {
QPainter p;
pixmap=QPixmap(totalw, totalh);
p.begin(&pixmap);
p.eraseRect(0, 0, totalw, totalh);
p.save();
p.translate(-(printLeft()-_printLeftMargin)*resolution, -(printTop()-_printTopMargin)*resolution);
print(p, resolution, 0, 0, false);
p.restore();
//SciFigsGlobal::footprint(p, resolution, totalw, totalh);
p.end();
if(transparentMask()) {
QBitmap mask=colorMask(pixmap, 0xFFFFFFFF);
p.begin(&mask);
p.translate( -(printLeft() - _printLeftMargin) * resolution, -(printTop() - _printTopMargin) * resolution);
print(p, resolution, 0, 0, true);
p.end();
pixmap.setMask(mask);
}
if(_transparency < 255) {
}
} else {
Message::warning(MSG_ID, tr("Drawing image"), tr("Null size for image of object %1 (%2, %3).").arg(objectName()).arg(totalw).arg(totalh), Message::cancel());
}
restoreScaleFonts(tmpSize);
setPrintSize(SciFigsGlobal::screenResolution());
return pixmap;
}
| bool SciFigs::GraphicObject::isActive | ( | ) | const |
Tells whether the object is selected and is the active selection.
References SciFigs::SelectionWidget::Activated, SciFigs::SelectionWidget::state(), and TRACE.
Referenced by keyPopupMenu(), and updateGeometryProperties().
{
TRACE;
return !_sheet || (_selected && _selected->state()==SelectionWidget::Activated);
}
| bool SciFigs::GraphicObject::isRemovable | ( | ) | [inline] |
Referenced by addActions(), deleteObject(), and SciFigs::GraphicSheet::removeObject().
{return _isRemovable;}
| bool SciFigs::GraphicObject::isSelected | ( | ) | const |
Tells whether the object is selected
References SciFigs::SelectionWidget::Activated, SciFigs::SelectionWidget::Selected, SciFigs::SelectionWidget::state(), and TRACE.
Referenced by SciFigs::GraphContent::addProperties(), LinearFKActiveResults::exportCurves(), MonoStation::WinResults::options(), MonoStation::PeakItemModel::reset(), MonoStation::WinResults::saveResults(), MonoStation::WinResults::selectAll(), MonoStation::WinResults::setPeaks(), and LinearFKActiveResults::stackGrids().
{
TRACE;
return !_sheet || (_selected && (_selected->state()==SelectionWidget::Selected ||
_selected->state()==SelectionWidget::Activated) );
}
| void SciFigs::GraphicObject::keyPopupMenu | ( | ) | [slot] |
Show context menu after CTRL+M request, or for other reason. The menu is displayed in the to left corner.
TODO: it doesn't work...
References activeObject(), isActive(), keyPopupMenu(), and TRACE.
Referenced by GraphicObject(), and keyPopupMenu().
{
TRACE;
if(isActive()) {
QMenu m;
m.addActions(actions());
m.exec(mapToGlobal( QPoint(0, 0) ));
} else { // Insure that the menu will be displayed in the active object
GraphicObject * obj=activeObject();
if(obj) obj->keyPopupMenu();
}
}
| void SciFigs::GraphicObject::leaveEvent | ( | QEvent * | e | ) | [protected, virtual] |
References SciFigs::SelectionWidget::Hoover, sheet(), SciFigs::SelectionWidget::state(), and TRACE.
{
TRACE;
if(_selected && _selected->state()==SelectionWidget::Hoover) {
ASSERT(sheet());
QPoint p=sheet()->mapFromGlobal(QCursor::pos());
QRect r=geometry();
if( !r.contains(p)) {
_selected->deleteLater();
_selected=0;
}
}
}
| void SciFigs::GraphicObject::mouseDoubleClickEvent | ( | QMouseEvent * | e | ) | [protected, virtual] |
Select the object if not already selected and active.
Open the property dialog box.
Reimplemented in SciFigs::ActivityMonitor.
References setActive(), showProperties(), and TRACE.
Referenced by SciFigs::ColorPaletteWidget::eventFilter(), and SciFigs::SelectionWidget::mouseDoubleClickEvent().
{
TRACE;
setActive(e->modifiers());
if(e->buttons() & Qt::LeftButton) {
showProperties();
}
}
| void SciFigs::GraphicObject::mouseMoveEvent | ( | QMouseEvent * | e | ) | [protected, virtual] |
If dragging is on and if the mouse is at more than 10 pixels from its original position, true dragging is started. It only emits a dragged() signal to be interpreted by GraphicSheet which is in charge of moving all selected object at the same time.
References QGpCoreTools::abs(), dragged(), SciFigs::SciFigsGlobal::screenResolution(), and TRACE.
Referenced by SciFigs::ColorPaletteWidget::eventFilter(), and SciFigs::SelectionWidget::mouseMoveEvent().
{
TRACE;
if(_draggingOn) {
QPoint d=e->globalPos();
d -= _oldMousePos;
if(_draggingStarted || abs(d.x()) > 10 || abs(d.y()) > 10) {
_draggingStarted=true;
emit dragged(Point2D( (double) d.x()/SciFigsGlobal::screenResolution(),
(double) d.y()/SciFigsGlobal::screenResolution()) );
}
} else QWidget::mouseMoveEvent (e);
}
| void SciFigs::GraphicObject::mousePressEvent | ( | QMouseEvent * | e | ) | [protected, virtual] |
Selection of object is not already selected and active.
Start dragging the object, the initial position is recorded in static members.
Reimplemented in SciFigs::ActivityMonitor.
References setActive(), TRACE, and wantToStartDragging().
Referenced by SciFigs::ColorPaletteWidget::eventFilter(), and SciFigs::SelectionWidget::mousePressEvent().
{
TRACE;
setActive(e->modifiers());
switch (e->button()) {
case Qt::LeftButton:
_oldMousePos=e->globalPos();
emit wantToStartDragging();
_draggingOn=true;
_draggingStarted=false;
break;
case Qt::RightButton: {
QMenu m;
m.addActions(actions());
m.exec(mapToGlobal( e->pos()) );
}
break;
default:
break;
}
}
| void SciFigs::GraphicObject::mouseReleaseEvent | ( | QMouseEvent * | e | ) | [protected, virtual] |
Stop dragging the object.
Reimplemented in SciFigs::ActivityMonitor.
References SciFigs::GraphicSheet::setOrderIndex(), sheet(), and TRACE.
Referenced by SciFigs::ColorPaletteWidget::eventFilter(), and SciFigs::SelectionWidget::mouseReleaseEvent().
{
TRACE;
if(_draggingOn) {
_draggingOn=false;
if(sheet() && sheet() ->isOrderIndex()) sheet() ->setOrderIndex(this);
}
}
| GraphicObject & SciFigs::GraphicObject::operator= | ( | const GraphicObject & | o | ) |
References _anchor, _printAnchor, _printBottomMargin, _printHeight, _printLeftMargin, _printRightMargin, _printTopMargin, _printWidth, and TRACE.
{
TRACE;
_printAnchor=o._printAnchor;
_anchor=o._anchor;
_printWidth=o._printWidth;
_printHeight=o._printHeight;
_constantWidthHeightRatio=o._constantWidthHeightRatio;
_printResolution=o._printResolution;
_printLeftMargin=o._printLeftMargin;
_printRightMargin=o._printRightMargin;
_printTopMargin=o._printTopMargin;
_printBottomMargin=o._printBottomMargin;
_transparency=o._transparency;
_mask=o._mask;
setFont(o.font());
return *this;
}
| void SciFigs::GraphicObject::paint | ( | QPainter & | p, |
| double | dotpercm, | ||
| int | w, | ||
| int | h, | ||
| bool | mask | ||
| ) | [protected, virtual] |
Virtual function to be re-implemented for each type of object to paint specific content. It is different than the classical QWidget function of the same type. Actually, the needed resolution is passed as argument as well as the screen width and height of the object. It is called by print().
Nothing is done, calling it in re-implemented function is useless.
Reimplemented in SciFigs::LegendWidget, and SciFigs::TextEdit.
References TRACE.
Referenced by paintEvent(), print(), and updateMask().
{
TRACE;
}
| void SciFigs::GraphicObject::paintEvent | ( | QPaintEvent * | e | ) | [protected, virtual] |
Reimplemented in SciFigs::LegendItemWidget.
References paint(), SciFigs::SciFigsGlobal::screenResolution(), and TRACE.
{
TRACE;
QPainter p(this);
p.fillRect(0,0,width(),height(), Qt::white);
paint(p, SciFigsGlobal::screenResolution(), width(), height(), false);
}
| void SciFigs::GraphicObject::pasteMakeUp | ( | ) | [slot] |
Restore make-up from the clipboard if there are any
References deepUpdate(), QGpCoreTools::XMLErrorReport::exec(), SciFigs::XMLSciFigs::MakeUp, SciFigs::XMLSciFigs::restoreByteArray(), QGpCoreTools::XMLErrorReport::setTitle(), QGpCoreTools::tr(), and TRACE.
Referenced by addActions().
{
TRACE;
static QString title=tr("Paste make-up");
QClipboard * cb=QApplication::clipboard();
const QMimeData * mime=cb->mimeData(QClipboard::Clipboard);
if(mime->hasFormat("XMLSciFigs::ObjectMakeUp")) {
QByteArray makeup=mime->data("XMLSciFigs::ObjectMakeUp");
XMLErrorReport xmler(XMLErrorReport::Read);
xmler.setTitle(title);
XMLSciFigs s;
xmler.exec(s.restoreByteArray(makeup, this, XMLSciFigs::MakeUp));
deepUpdate();
}
}
| void SciFigs::GraphicObject::polish | ( | ) | [virtual] |
Ensure that the widget is at least updated once.
Reimplemented in SciFigs::LegendWidget, SciFigs::TextEdit, and SciFigs::AxisWindow.
References addActions(), TRACE, and update().
Referenced by showEvent().
{
TRACE;
//setMouseTracking(true);
if(actions().isEmpty()) addActions();
update();
}
| void SciFigs::GraphicObject::positionChanged | ( | ) | [signal] |
| void SciFigs::GraphicObject::print | ( | QPrinter & | printer | ) |
References TRACE.
Referenced by addActions(), exportImage(), image(), SciFigs::GraphicSheet::image(), SciFigs::GraphicSheet::print(), print(), and printSvg().
| void SciFigs::GraphicObject::print | ( | int | dpi = 0 | ) | [slot] |
User slot for printing the object at a defined resolution, overridding the internal printResolution.
If dpi is null, the internal printResolution is used.
| void SciFigs::GraphicObject::print | ( | bool | outputToFile, |
| QString | name, | ||
| int | dpi | ||
| ) | [slot] |
Slot to be used from a script to print using the current print settings (from QSA::getPrintInfo())
References print(), printResolution(), and TRACE.
{
TRACE;
QPrinter printer(QPrinter::HighResolution);
if(dpi==0) printer.setResolution(printResolution());
else printer.setResolution(dpi);
if(outputToFile) printer.setOutputFileName(name);
else printer.setPrinterName(name);
QPainter p;
p.begin(&printer);
print(p,((double)printer.resolution())/2.54, 0, 0, false);
p.end();
}
| void SciFigs::GraphicObject::print | ( | QPainter & | p, |
| double | dotpercm, | ||
| int | x0Sheet, | ||
| int | y0Sheet, | ||
| bool | mask | ||
| ) | [protected, virtual] |
Print the object to a Qpainter using relative coordinates. Relative coordinates are usefull for printing various pages. This basic implementation call the virtual function paint() to draw the object's content.
Reimplemented in SciFigs::ColorPaletteWidget, and SciFigs::AxisWindow.
References _printHeight, _printWidth, paint(), printLeft(), printTop(), TRACE, transparentMask(), and w.
{
TRACE;
int w=(int) (_printWidth * dotpercm);
int h=(int) (_printHeight * dotpercm);
int orX=(int) (printLeft() * dotpercm) - x0Sheet;
int orY=(int) (printTop() * dotpercm) - y0Sheet;
p.setWindow(0, 0, w, h);
p.setViewport(orX, orY, w, h);
if(mask && !transparentMask())
p.fillRect(0, 0, w, h, Qt::color1);
else
paint(p, dotpercm, w, h, mask);
}
| double SciFigs::GraphicObject::printBottom | ( | double | refHeight = 0.0 | ) | const |
Return the printing Y position (Bottom) of the object in cm, taking anchor into account.
If refHeight is greater than 0.0, it is used rather than the current height.
References _anchor, _printAnchor, printHeight(), TRACE, QGpCoreTools::Point2D::y(), and YMask.
Referenced by SciFigs::GraphicSheet::printBottom().
{
TRACE;
if(_anchor & YMask) {
if(refHeight>0.0)
return _printAnchor.y()+refHeight;
else
return _printAnchor.y()+printHeight();
} else {
return _printAnchor.y();
}
}
| double SciFigs::GraphicObject::printBottomMargin | ( | ) | const [inline] |
Referenced by properties().
{return _printBottomMargin;}
| double SciFigs::GraphicObject::printHeight | ( | ) | const [inline] |
Referenced by SciFigs::ColorPaletteWidget::print(), printBottom(), printTop(), properties(), setProperty(), and SciFigs::ColorPaletteWidget::xml_polishChild().
{return _printHeight;}
| double SciFigs::GraphicObject::printLeft | ( | double | refWidth = 0.0 | ) | const |
Return the printing X position (Left) of the object in cm, taking anchor into account.
If refWidth is greater than 0.0, it is used rather than the current width.
References _anchor, _printAnchor, printWidth(), TRACE, QGpCoreTools::Point2D::x(), and XMask.
Referenced by DinverDCGui::DCModelViewer::addText(), SciFigs::GraphicSheet::alignX(), image(), SciFigs::GraphicSheet::moveObject(), SciFigs::GraphicSheet::paste(), SciFigs::AxisWindow::print(), print(), printSvg(), MonoStation::WinResults::setLayout(), and SciFigs::GraphicSheet::showObject().
{
TRACE;
if(_anchor & XMask) {
return _printAnchor.x();
} else {
if(refWidth>0.0)
return _printAnchor.x()-refWidth;
else
return _printAnchor.x()-printWidth();
}
}
| double SciFigs::GraphicObject::printLeftMargin | ( | ) | const [inline] |
Referenced by properties().
{return _printLeftMargin;}
| int SciFigs::GraphicObject::printResolution | ( | ) | const [inline] |
Referenced by SciFigs::ColorPaletteWidget::print(), print(), and properties().
{return _printResolution;}
| double SciFigs::GraphicObject::printRight | ( | double | refWidth = 0.0 | ) | const |
Return the printing X position (Right) of the object in cm, taking anchor into account.
If refWidth is greater than 0.0, it is used rather than the current width.
References _anchor, _printAnchor, printWidth(), TRACE, QGpCoreTools::Point2D::x(), and XMask.
Referenced by SciFigs::GraphicSheet::printRight(), and MonoStation::WinResults::setLayout().
{
TRACE;
if(_anchor & XMask) {
if(refWidth>0.0)
return _printAnchor.x()+refWidth;
else
return _printAnchor.x()+printWidth();
} else {
return _printAnchor.x();
}
}
| double SciFigs::GraphicObject::printRightMargin | ( | ) | const [inline] |
Referenced by properties().
{return _printRightMargin;}
| void SciFigs::GraphicObject::printSvg | ( | const QString & | fileName, |
| int | dpi | ||
| ) | [protected] |
References _printBottomMargin, _printHeight, _printLeftMargin, _printRightMargin, _printTopMargin, _printWidth, print(), printLeft(), printTop(), restoreScaleFonts(), scaleFonts(), SciFigs::SciFigsGlobal::screenResolution(), setPrintSize(), and TRACE.
Referenced by exportImage().
{
TRACE;
QSvgGenerator gen;
gen.setFileName(fileName);
if(dpi==0) dpi=_printResolution;
gen.setResolution(dpi);
double resolution=dpi/2.54;
double factor=resolution/SciFigsGlobal::screenResolution();
double hMargins=_printLeftMargin + _printRightMargin;
double vMargins=_printTopMargin + _printBottomMargin;
int * tmpSize=scaleFonts(factor);
setPrintSize(resolution);
int totalw=(int) (( _printWidth + hMargins) * resolution);
int totalh=(int) (( _printHeight + vMargins) * resolution);
gen.setSize(QSize( totalw, totalh) );
QPainter p;
p.begin(&gen);
if( !_mask) p.eraseRect(0, 0, totalw, totalh);
p.save();
p.translate( -(printLeft() - _printLeftMargin) * resolution, -(printTop() - _printTopMargin) * resolution);
print(p, resolution, 0, 0, false);
p.restore();
p.end();
restoreScaleFonts(tmpSize);
setPrintSize(SciFigsGlobal::screenResolution());
}
| double SciFigs::GraphicObject::printTop | ( | double | refHeight = 0.0 | ) | const |
Return the printing Y position (Top) of the object in cm, taking anchor into account.
If refHeight is greater than 0.0, it is used rather than the current height.
References _anchor, _printAnchor, printHeight(), TRACE, QGpCoreTools::Point2D::y(), and YMask.
Referenced by SciFigs::GraphicSheet::alignY(), image(), SciFigs::GraphicSheet::moveObject(), SciFigs::GraphicSheet::paste(), SciFigs::AxisWindow::print(), print(), printSvg(), MonoStation::WinResults::setLayout(), and SciFigs::GraphicSheet::showObject().
{
TRACE;
if(_anchor & YMask) {
return _printAnchor.y();
} else {
if(refHeight>0.0)
return _printAnchor.y()-refHeight;
else
return _printAnchor.y()-printHeight();
}
}
| double SciFigs::GraphicObject::printTopMargin | ( | ) | const [inline] |
Referenced by properties().
{return _printTopMargin;}
| double SciFigs::GraphicObject::printWidth | ( | ) | const [inline] |
Referenced by SciFigs::ColorPaletteWidget::print(), printLeft(), printRight(), properties(), setProperty(), and SciFigs::ColorPaletteWidget::xml_polishChild().
{return _printWidth;}
| double SciFigs::GraphicObject::printXAnchor | ( | ) | const [inline] |
Referenced by SciFigs::GraphicSheet::fileOpen(), SciFigs::GraphicSheet::paste(), SciFigs::ColorPaletteWidget::print(), and properties().
{return _printAnchor.x();}
| double SciFigs::GraphicObject::printYAnchor | ( | ) | const [inline] |
Referenced by SciFigs::GraphicSheet::fileOpen(), SciFigs::GraphicSheet::paste(), SciFigs::ColorPaletteWidget::print(), and properties().
{return _printAnchor.y();}
| void SciFigs::GraphicObject::properties | ( | PropertyWidget * | w | ) | const [virtual] |
Implements QGpGuiTools::PropertyItem.
Reimplemented in SciFigs::LegendWidget, SciFigs::ColorPaletteWidget, SciFigs::TextEdit, and SciFigs::ImageWidget.
References SciFigs::GraphicObjectGeometryProperties::Anchor, anchor(), SciFigs::GraphicObjectGeometryProperties::anchor2item(), SciFigs::GraphicObjectPrintProperties::BottomMargin, SciFigs::GraphicObjectGeometryProperties::ConstantWidthHeightRatio, constantWidthHeightRatio(), SciFigs::GraphicObjectGeometryProperties::Height, QGpGuiTools::PropertyWidget::id(), SciFigs::GraphicObjectPrintProperties::LeftMargin, SciFigs::GraphicObjectIdProperties::Name, objectName, printBottomMargin(), printHeight(), printLeftMargin(), printResolution(), printRightMargin(), printTopMargin(), printWidth(), printXAnchor(), printYAnchor(), SciFigs::GraphicObjectPrintProperties::Resolution, SciFigs::GraphicObjectPrintProperties::RightMargin, QGpGuiTools::PropertyWidget::setValue(), SciFigs::GraphicObjectPrintProperties::TopMargin, TRACE, SciFigs::GraphicObjectPrintProperties::Transparency, transparency(), SciFigs::GraphicObjectPrintProperties::TransparentMask, transparentMask(), SciFigs::GraphicObjectIdProperties::Type, SciFigs::GraphicObjectGeometryProperties::Width, SciFigs::GraphicObjectGeometryProperties::WidthHeightRatio, SciFigs::GraphicObjectGeometryProperties::X, and SciFigs::GraphicObjectGeometryProperties::Y.
{
TRACE;
if(w->id()==_tabGeomery) {
w->setValue(GraphicObjectGeometryProperties::X, printXAnchor());
w->setValue(GraphicObjectGeometryProperties::Y, printYAnchor());
w->setValue(GraphicObjectGeometryProperties::Anchor, GraphicObjectGeometryProperties::anchor2item(anchor()) );
w->setValue(GraphicObjectGeometryProperties::Width, printWidth());
w->setValue(GraphicObjectGeometryProperties::Height, printHeight());
w->setValue(GraphicObjectGeometryProperties::ConstantWidthHeightRatio, constantWidthHeightRatio());
w->setValue(GraphicObjectGeometryProperties::WidthHeightRatio, printWidth()/printHeight());
} else if(w->id()==_tabPrint) {
w->setValue(GraphicObjectPrintProperties::LeftMargin, printLeftMargin());
w->setValue(GraphicObjectPrintProperties::RightMargin, printRightMargin());
w->setValue(GraphicObjectPrintProperties::TopMargin, printTopMargin());
w->setValue(GraphicObjectPrintProperties::BottomMargin, printBottomMargin());
w->setValue(GraphicObjectPrintProperties::Resolution, printResolution());
w->setValue(GraphicObjectPrintProperties::Transparency, transparency());
w->setValue(GraphicObjectPrintProperties::TransparentMask, transparentMask());
} else if(w->id()==_tabId) {
w->setValue(GraphicObjectIdProperties::Name, objectName());
w->setValue(GraphicObjectIdProperties::Type, metaObject()->className());
}
}
| PropertyProxy * SciFigs::GraphicObject::proxy | ( | ) | const |
Reimplemented from QGpGuiTools::PropertyContext.
References QGpGuiTools::PropertyContext::proxy(), and TRACE.
Referenced by SciFigs::GraphContent::addProperties(), SciFigs::GraphContent::removeLayer(), SciFigs::LineLayer::resetLineProperties(), and showProperties().
{
TRACE;
return _sheet ? _sheet->proxy() : PropertyContext::proxy();
}
| void SciFigs::GraphicObject::removeProperties | ( | PropertyProxy * | pp | ) | [virtual] |
Reimplemented in SciFigs::LegendWidget, SciFigs::ColorPaletteWidget, SciFigs::AxisWindow, SciFigs::TextEdit, and SciFigs::ImageWidget.
References QGpGuiTools::PropertyProxy::removeTab(), QGpGuiTools::PropertyProxy::setCurrentCategory(), and TRACE.
Referenced by SciFigs::GraphicSheet::removeObject().
{
TRACE;
if(pp->setCurrentCategory(_category) ) {
pp->removeTab(_tabId, this);
pp->removeTab(_tabGeomery, this);
pp->removeTab(_tabPrint, this);
}
}
| void SciFigs::GraphicObject::restoreMakeUp | ( | QString | fileName = QString::null | ) | [slot] |
Restore make-up properties from fileName.
References QGpCoreTools::XMLErrorReport::exec(), SciFigs::XMLSciFigs::MakeUp, SciFigs::XMLSciFigs::restoreFile(), QGpCoreTools::XMLErrorReport::setFileName(), QGpCoreTools::XMLErrorReport::setTitle(), QGpCoreTools::tr(), and TRACE.
Referenced by addActions(), addPlot(), ChronogramWindow::ChronogramWindow(), GraphicWindow::GraphicWindow(), MapWindow::MapWindow(), MonoStation::WinResults::restoreMakeUp(), ChronogramWindow::subPoolUpdate(), MapWindow::subPoolUpdate(), and GraphicWindow::subPoolUpdate().
{
TRACE;
static QString title=tr( "Open an exisiting make-up" );
if(fileName.isEmpty()) {
fileName=Message::getOpenFileName(title, tr( "Graph make-up (*.mkup)" ));
}
if(fileName.length() > 0) {
XMLErrorReport xmler(XMLErrorReport::Read);
xmler.setTitle(title);
xmler.setFileName(fileName);
QFileInfo fi(fileName);
XMLSciFigs s;
xmler.exec(s.restoreFile(fileName, this, XMLSciFigs::MakeUp));
}
}
| void SciFigs::GraphicObject::restoreScaleFonts | ( | int * | fontSizeStorage | ) | [protected, virtual] |
Restore a saved scale for fonts
Reimplemented in SciFigs::ColorPaletteWidget, and SciFigs::AxisWindow.
References TRACE.
Referenced by image(), SciFigs::GraphicSheet::image(), and printSvg().
{
TRACE;
ASSERT (fontSizeStorage!=0);
QFont f=font();
f.setPointSize( *fontSizeStorage);
setFont(f);
delete fontSizeStorage;
}
| void SciFigs::GraphicObject::saveMakeUp | ( | QString | fileName = QString::null | ) | [slot] |
Save make-up properties to fileName
References SciFigs::XMLSciFigs::MakeUp, SciFigs::MakeUpFilter::saveFile(), SciFigs::XMLSciFigs::saveString(), SciFigs::MakeUpFilter::setXml(), QGpCoreTools::tr(), and TRACE.
Referenced by addActions().
{
TRACE;
XMLSciFigs s;
MakeUpFilter * d=new MakeUpFilter(this);
d->setXml(s.saveString(this, XMLSciFigs::MakeUp));
if(d->exec()==QDialog::Accepted) {
if(fileName.isEmpty()) {
fileName=Message::getSaveFileName(tr( "Save make-up as ..." ),
tr( "Object make-up (*.mkup)" ));
}
if(fileName.length() > 0) {
d->saveFile(fileName);
}
}
delete d;
}
| void SciFigs::GraphicObject::savePage | ( | QString | fileName = QString::null | ) | [slot] |
Save object in a .page file
References SciFigs::XMLSciFigs::Page, SciFigs::XMLSciFigs::saveFile(), QGpCoreTools::tr(), and TRACE.
Referenced by addActions().
| int SciFigs::GraphicObject::scaleFont | ( | QFont & | f, |
| double | scale, | ||
| bool * | changed = 0 |
||
| ) | [static] |
Scale the font, and replace familly if not scalable
Return the original pointSize
References QGpCoreTools::endl(), QGpCoreTools::tr(), and TRACE.
Referenced by SciFigs::SlopeEstimator::paintText(), SciFigs::NameLineLayer::paintText(), and scaleWidgetFonts().
{
TRACE;
int fontSizeStorage=f.pointSize();
int scaledSize=(int) round(fontSizeStorage * scale);
/* Test if it is a scalable font type.
"Helvetica" is used as the default in this package, which is not
a scalable font on my system. ghoscript replace it by "Nimbus Sans L".
To get the same rendering for exported images, if the font familly is
"Helvetica" and the that it is not scalable, replace it by "Nimbus Sans L"
*/
static QFontDatabase fdb;
if( !fdb.isScalable(f.family()) ) {
App::stream() << tr( "WARNING font cannot be scaled: %1\n"
" needed size=%2" ).arg(f.toString()).arg(scaledSize) << endl;
QStringList subFonts=QFont::substitutes(f.family());
QString subFamilly="Nimbus Sans L";
for(QStringList::Iterator it=subFonts.begin();it!=subFonts.end();++it) {
if(fdb.isScalable( *it) ) {
subFamilly=*it;
break;
}
}
App::stream() << tr( " --> replaced by %1" ).arg(subFamilly) << endl;
f.setFamily(subFamilly);
if(changed) * changed=true;
} else if(changed) * changed=false;
f.setPointSize(scaledSize);
return fontSizeStorage;
}
| int * SciFigs::GraphicObject::scaleFonts | ( | double | scale | ) | [protected, virtual] |
For some high resolution bitmap image, fonts must scaled
Reimplemented in SciFigs::ColorPaletteWidget, and SciFigs::AxisWindow.
References scaleWidgetFonts(), and TRACE.
Referenced by image(), SciFigs::GraphicSheet::image(), and printSvg().
{
TRACE;
int * fontSizeStorage=new int;
QFont f=font();
*fontSizeStorage=scaleWidgetFonts(this, scale);
return fontSizeStorage;
}
| int SciFigs::GraphicObject::scaleWidgetFonts | ( | QWidget * | w, |
| double | scale | ||
| ) | [protected] |
Scale the fonts of any widget, might be called by any re-implemetation of scaleFonts().
Return the original pointSize.
Used by scaleFonts(double scale) or by any re-implementation.
References scaleFont(), TRACE, and update().
Referenced by SciFigs::AxisWindow::scaleFonts(), and scaleFonts().
| SelectionWidget* SciFigs::GraphicObject::selectionWidget | ( | ) | const [inline] |
Referenced by SciFigs::GraphicSheet::deepUpdate(), enterEvent(), SciFigs::GraphicSheet::lowerSelection(), SciFigs::GraphicSheet::moveObject(), SciFigs::GraphicSheet::raiseSelection(), SciFigs::GraphicSheet::removeObject(), SciFigs::GraphicSheet::resizeObject(), SciFigs::GraphicSheet::selectObjects(), SciFigs::GraphicSheet::setOrderIndex(), and SciFigs::GraphicSheet::update().
{return _selected;}
| void SciFigs::GraphicObject::setActive | ( | Qt::KeyboardModifiers | s | ) |
Force the object to be selected and to be the active selection.
References SciFigs::SelectionWidget::Activated, SciFigs::SelectionWidget::state(), TRACE, and wantToBeSelected().
Referenced by mouseDoubleClickEvent(), and mousePressEvent().
{
TRACE;
if( !_selected || _selected->state()!=SelectionWidget::Activated)
emit wantToBeSelected(this, s);
}
| void SciFigs::GraphicObject::setAnchor | ( | PositionAnchor | pa | ) | [inline] |
Referenced by TFAResults::createObjects(), MonoStation::WinResults::loadResults(), setAnchor(), setProperty(), and MonoStation::WinResults::setStations().
{_anchor=pa;}
| void SciFigs::GraphicObject::setAnchor | ( | QString | pa | ) |
References BottomLeft, BottomRight, setAnchor(), TopLeft, TopRight, and TRACE.
| void SciFigs::GraphicObject::setConstantWidthHeightRatio | ( | bool | c | ) | [inline] |
Referenced by SciFigs::ImageWidget::ImageWidget(), and setProperty().
{_constantWidthHeightRatio=c;}
| void SciFigs::GraphicObject::setObjectName | ( | QString | name | ) | [virtual] |
Re-implemetation of QWidget::setObjectName(const char * name) It is used to avoid duplicate names inside the same GraphicSheet
Reimplemented in GeopsyGui::ArrayMap.
References name, TRACE, and SciFigs::GraphicSheet::uniqueName().
Referenced by SciFigs::GraphicSheetMenu::addGraph(), SciFigs::GraphicSheet::addObject(), PSViewer::addPlot(), ArrayGui::ArrayResponse::ArrayResponse(), ChronogramWindow::ChronogramWindow(), MonoStation::AbstractSummary::createBubbleGraph(), SpacSelector::createObjects(), MonoStation::AbstractSummary::createSpectrumGridGraph(), DinverDCGui::DCModelViewer::DCModelViewer(), GraphicWindow::GraphicWindow(), HistogramWidget::HistogramWidget(), DinverDCGui::DCModelViewer::initGraphs(), MonoStation::WinResults::loadResults(), PSViewer::PSViewer(), setProperty(), HVRotateWinResults::setStations(), SpectrumRotateWinResults::setStations(), MonoStation::WinResults::setStations(), DinverDCGui::RefractionViewer::setTitles(), DinverDCGui::DispersionViewer::setTitles(), DinverDCGui::MagnetoTelluricViewer::setTitles(), DinverDCGui::GroundModelViewer::setTitles(), and DinverDCGui::AutocorrViewer::setTitles().
{
TRACE;
QString newUniqueName;
if(_sheet) newUniqueName=_sheet->uniqueName(this, name);
else newUniqueName=name;
QWidget::setObjectName(newUniqueName);
}
| bool SciFigs::GraphicObject::setOrderIndex | ( | int | index | ) |
If index is not negative, create a new OrderTip if does not exist and set its value to index. If index is negative delete the tip.
References SciFigs::OrderTip::setIndex(), and TRACE.
Referenced by SciFigs::GraphicSheet::showOrderIndex().
Set the printing positions of the object in cm. To update the display call updateGeometry().
References _printAnchor, QGpCoreTools::Point2D::setX(), QGpCoreTools::Point2D::setY(), TRACE, QGpCoreTools::Point2D::x(), and QGpCoreTools::Point2D::y().
Referenced by SciFigs::GraphicSheet::addObject(), PSViewer::addPlot(), PSViewer::addThreadData(), drag(), and DinverDCGui::DCModelViewer::initGraphs().
{
TRACE;
_printAnchor=o;
if(_printAnchor.x()<0.0) _printAnchor.setX(0.0);
if(_printAnchor.y()<0.0) _printAnchor.setY(0.0);
}
| void SciFigs::GraphicObject::setPrintBottom | ( | double | val | ) |
References _anchor, _printAnchor, _printHeight, BottomLeft, BottomRight, QGpCoreTools::Point2D::setY(), and TRACE.
Referenced by MonoStation::WinResults::setLayout().
{
TRACE;
if(val<0.0) val=0.0;
switch(_anchor) {
case BottomLeft:
case BottomRight:
_printAnchor.setY(val);
break;
default:
_printAnchor.setY(val - _printHeight);
break;
}
}
| void SciFigs::GraphicObject::setPrintBottomMargin | ( | double | val | ) | [inline] |
| void SciFigs::GraphicObject::setPrintHeight | ( | double | val | ) | [inline] |
Set the printing height of the object in cm. To update the display call updateGeometry().
Referenced by PSViewer::addPlot(), addPlot(), SciFigs::GraphicSheetMenu::addText(), DinverDCGui::DCModelViewer::addText(), SciFigs::TextEdit::adjustSize(), SciFigs::AxisWindow::AxisWindow(), SciFigs::ColorPaletteWidget::ColorPaletteWidget(), MonoStation::AbstractSummary::createBubbleGraph(), TFAResults::createObjects(), ArrayGui::ArrayResponse::createObjects(), MonoStation::AbstractSummary::createSpectrumGridGraph(), DinverDCGui::DCModelViewer::DCModelViewer(), HistogramWidget::HistogramWidget(), DinverDCGui::DCModelViewer::initGraphs(), PSViewer::PSViewer(), MonoStation::AbstractSummary::setLimits(), SciFigs::TextEdit::setPrintSize(), SciFigs::LegendWidget::setPrintSize(), setProperty(), SpectrumRotateWinResults::setStations(), HVRotateWinResults::setStations(), and SciFigs::ColorPaletteWidget::xml_polishChild().
{_printHeight=val;}
| void SciFigs::GraphicObject::setPrintLeft | ( | double | val | ) |
References _anchor, _printAnchor, _printWidth, BottomLeft, QGpCoreTools::Point2D::setX(), TopLeft, and TRACE.
Referenced by HistogramWidget::HistogramWidget(), and MonoStation::WinResults::setLayout().
{
TRACE;
if(val<0.0) val=0.0;
switch(_anchor) {
case TopLeft:
case BottomLeft:
_printAnchor.setX(val);
break;
default:
_printAnchor.setX(val + _printWidth);
break;
}
}
| void SciFigs::GraphicObject::setPrintLeftMargin | ( | double | val | ) | [inline] |
| void SciFigs::GraphicObject::setPrintResolution | ( | int | val | ) | [inline] |
Set the resolution of the object for printing tasks (dot per inch). 300 or 600 dpi is common values for classical printers. For html or slide presentations, it is better to set it as close as possible to the final screen resolution (e.g. 100 dpi). Large resizing in other softwares may reduce the quality of the image.
When printing a whole GraphicSheet, this resolution is just a minimum, it might be greater if other objects require higher resolution. To avoid surprise, select all objects and set resolution to be the same for all objects.
Referenced by SciFigs::ImageWidget::loadImage(), SciFigs::ColorPaletteWidget::print(), and setProperty().
{_printResolution=val;}
| void SciFigs::GraphicObject::setPrintRight | ( | double | val | ) |
References _anchor, _printAnchor, _printWidth, BottomRight, QGpCoreTools::Point2D::setX(), TopRight, and TRACE.
Referenced by MonoStation::WinResults::setLayout().
{
TRACE;
if(val<0.0) val=0.0;
switch(_anchor) {
case TopRight:
case BottomRight:
_printAnchor.setX(val);
break;
default:
_printAnchor.setX(val + _printWidth);
break;
}
}
| void SciFigs::GraphicObject::setPrintRightMargin | ( | double | val | ) | [inline] |
| void SciFigs::GraphicObject::setPrintSize | ( | double | dotpercm | ) | [protected, virtual] |
Called before and after printing to adjust the size of object. Normally what you see is what you get, but there might be some slight modification due to rounding error when scaling fonts. All object that offer options to automatically adjust size and if it depends upon fonts must re-implement this function.
The basic implemetation does nothing.
Reimplemented in SciFigs::LegendWidget, and SciFigs::TextEdit.
Referenced by image(), SciFigs::GraphicSheet::image(), and printSvg().
{
}
| void SciFigs::GraphicObject::setPrintTop | ( | double | val | ) |
References _anchor, _printAnchor, _printHeight, QGpCoreTools::Point2D::setY(), TopLeft, TopRight, and TRACE.
Referenced by HistogramWidget::HistogramWidget(), and MonoStation::WinResults::setLayout().
{
TRACE;
if(val<0.0) val=0.0;
switch(_anchor) {
case TopLeft:
case TopRight:
_printAnchor.setY(val);
break;
default:
_printAnchor.setY(val + _printHeight);
break;
}
}
| void SciFigs::GraphicObject::setPrintTopMargin | ( | double | val | ) | [inline] |
| void SciFigs::GraphicObject::setPrintWidth | ( | double | val | ) | [inline] |
Set the printing width of the object in cm. To update the display call updateGeometry().
Referenced by PSViewer::addPlot(), addPlot(), SciFigs::GraphicSheetMenu::addText(), DinverDCGui::DCModelViewer::addText(), SciFigs::TextEdit::adjustSize(), SciFigs::AxisWindow::AxisWindow(), SciFigs::ColorPaletteWidget::ColorPaletteWidget(), MonoStation::AbstractSummary::createBubbleGraph(), TFAResults::createObjects(), ArrayGui::ArrayResponse::createObjects(), MonoStation::AbstractSummary::createSpectrumGridGraph(), DinverDCGui::DCModelViewer::DCModelViewer(), HistogramWidget::HistogramWidget(), DinverDCGui::DCModelViewer::initGraphs(), PSViewer::PSViewer(), MonoStation::AbstractSummary::setLimits(), SciFigs::TextEdit::setPrintSize(), SciFigs::LegendWidget::setPrintSize(), setProperty(), SpectrumRotateWinResults::setStations(), HVRotateWinResults::setStations(), and SciFigs::ColorPaletteWidget::xml_polishChild().
{_printWidth=val;}
| void SciFigs::GraphicObject::setPrintXAnchor | ( | double | val | ) |
Set the printing X position of the object's anchor in cm. To update the display call updateGeometry().
References _printAnchor, QGpCoreTools::Point2D::setX(), and TRACE.
Referenced by addPlot(), SciFigs::GraphicSheetMenu::addText(), DinverDCGui::DCModelViewer::addText(), SciFigs::GraphicSheet::alignX(), MonoStation::AbstractSummary::createBubbleGraph(), createDotsPlot(), ResultsThread::createLegend(), TFAResults::createObjects(), ArrayGui::ArrayResponse::createObjects(), createPlot(), MonoStation::AbstractSummary::createSpectrumGridGraph(), createText(), DinverDCGui::DCModelViewer::DCModelViewer(), SciFigs::GraphicSheet::fileOpen(), MonoStation::WinResults::loadResults(), SciFigs::GraphicSheet::paste(), SciFigs::ColorPaletteWidget::print(), PSViewer::PSViewer(), SciFigs::GraphicSheetMenu::setGraphGeometry(), setProperty(), HVRotateWinResults::setStations(), SpectrumRotateWinResults::setStations(), and MonoStation::WinResults::setStations().
{
TRACE;
if(val<0.0) val=0.0;
_printAnchor.setX(val);
}
| void SciFigs::GraphicObject::setPrintYAnchor | ( | double | val | ) |
Set the printing Y position of the object's anchor in cm. To update the display call updateGeometry().
References _printAnchor, QGpCoreTools::Point2D::setY(), and TRACE.
Referenced by addPlot(), SciFigs::GraphicSheetMenu::addText(), DinverDCGui::DCModelViewer::addText(), SciFigs::GraphicSheet::alignY(), MonoStation::AbstractSummary::createBubbleGraph(), createDotsPlot(), ResultsThread::createLegend(), TFAResults::createObjects(), ArrayGui::ArrayResponse::createObjects(), createPlot(), MonoStation::AbstractSummary::createSpectrumGridGraph(), createText(), DinverDCGui::DCModelViewer::DCModelViewer(), SciFigs::GraphicSheet::fileOpen(), MonoStation::WinResults::loadResults(), SciFigs::GraphicSheet::paste(), SciFigs::ColorPaletteWidget::print(), PSViewer::PSViewer(), SciFigs::GraphicSheetMenu::setGraphGeometry(), setProperty(), HVRotateWinResults::setStations(), and SpectrumRotateWinResults::setStations().
{
TRACE;
if(val<0.0) val=0.0;
_printAnchor.setY(val);
}
| void SciFigs::GraphicObject::setProperty | ( | uint | wid, |
| int | pid, | ||
| QVariant | val | ||
| ) | [virtual] |
Implements QGpGuiTools::PropertyItem.
Reimplemented in SciFigs::LegendWidget, SciFigs::ColorPaletteWidget, SciFigs::TextEdit, and SciFigs::ImageWidget.
References SciFigs::GraphicObjectGeometryProperties::Anchor, SciFigs::GraphicObjectPrintProperties::BottomMargin, SciFigs::GraphicObjectGeometryProperties::ConstantWidthHeightRatio, constantWidthHeightRatio(), SciFigs::GraphicObjectGeometryProperties::Height, SciFigs::GraphicObjectGeometryProperties::item2anchor(), SciFigs::GraphicObjectPrintProperties::LeftMargin, SciFigs::GraphicObjectIdProperties::Name, positionChanged(), printHeight(), printWidth(), SciFigs::GraphicObjectPrintProperties::Resolution, SciFigs::GraphicObjectPrintProperties::RightMargin, setAnchor(), setConstantWidthHeightRatio(), setObjectName(), setPrintBottomMargin(), setPrintHeight(), setPrintLeftMargin(), setPrintResolution(), setPrintRightMargin(), setPrintTopMargin(), setPrintWidth(), setPrintXAnchor(), setPrintYAnchor(), setTransparency(), setTransparentMask(), sizeChanged(), SciFigs::GraphicObjectPrintProperties::TopMargin, TRACE, SciFigs::GraphicObjectPrintProperties::Transparency, SciFigs::GraphicObjectPrintProperties::TransparentMask, SciFigs::GraphicObjectIdProperties::Type, SciFigs::GraphicObjectGeometryProperties::Width, SciFigs::GraphicObjectGeometryProperties::WidthHeightRatio, SciFigs::GraphicObjectGeometryProperties::X, and SciFigs::GraphicObjectGeometryProperties::Y.
{
TRACE;
if(wid==_tabGeomery) {
switch(pid) {
case GraphicObjectGeometryProperties::X:
setPrintXAnchor(val.toDouble());
emit positionChanged();
break;
case GraphicObjectGeometryProperties::Y:
setPrintYAnchor(val.toDouble());
emit positionChanged();
break;
case GraphicObjectGeometryProperties::Anchor:
setAnchor(GraphicObjectGeometryProperties::item2anchor(val.toInt()) );
emit positionChanged();
break;
case GraphicObjectGeometryProperties::Width:
if(constantWidthHeightRatio()) {
double rhw=printHeight()/printWidth();
setPrintWidth(val.toDouble());
setPrintHeight(rhw * printWidth());
} else {
setPrintWidth(val.toDouble());
}
emit sizeChanged();
break;
case GraphicObjectGeometryProperties::Height:
if(constantWidthHeightRatio()) {
double rwh=printWidth()/printHeight();
setPrintHeight(val.toDouble());
setPrintWidth(rwh * printHeight());
} else {
setPrintHeight(val.toDouble());
}
emit sizeChanged();
break;
case GraphicObjectGeometryProperties::ConstantWidthHeightRatio:
setConstantWidthHeightRatio(val.toBool());
break;
case GraphicObjectGeometryProperties::WidthHeightRatio:
break;
}
} else if(wid==_tabPrint) {
switch(pid) {
case GraphicObjectPrintProperties::LeftMargin:
setPrintLeftMargin(val.toDouble());
emit sizeChanged();
break;
case GraphicObjectPrintProperties::RightMargin:
setPrintRightMargin(val.toDouble());
emit sizeChanged();
break;
case GraphicObjectPrintProperties::TopMargin:
setPrintTopMargin(val.toDouble());
emit sizeChanged();
break;
case GraphicObjectPrintProperties::BottomMargin:
setPrintBottomMargin(val.toDouble());
emit sizeChanged();
break;
case GraphicObjectPrintProperties::Resolution:
setPrintResolution(val.toInt());
break;
case GraphicObjectPrintProperties::Transparency:
setTransparency(val.toInt());
break;
case GraphicObjectPrintProperties::TransparentMask:
setTransparentMask(val.toBool());
break;
}
} else if(wid==_tabId) {
switch(pid) {
case GraphicObjectIdProperties::Name:
setObjectName(val.toString());
break;
case GraphicObjectIdProperties::Type: // Read-only
break;
default:
break;
}
}
}
| void SciFigs::GraphicObject::setRemovable | ( | bool | r | ) | [inline] |
Referenced by SciFigs::GraphicSheet::addObject(), PSViewer::addPlot(), addPlot(), and SciFigs::GraphicSheet::xml_member().
{_isRemovable=r;}
| void SciFigs::GraphicObject::setSelected | ( | SelectionWidget * | s | ) |
Select the object by attribuing a SelectionWidget.
Select object by affecting a new selection widget s.
References TRACE.
Referenced by SciFigs::SelectionWidget::leaveEvent(), SciFigs::GraphicSheet::removeObject(), SciFigs::SelectionWidget::SelectionWidget(), and SciFigs::GraphicSheet::selectObjects().
{
TRACE;
_selected=s;
}
| void SciFigs::GraphicObject::setToolTip | ( | const QString & | t | ) |
Share tooltip with its selection widget if any.
{
if(_selected) {
_selected->setToolTip(t);
}
QWidget::setToolTip(t);
}
| void SciFigs::GraphicObject::setTransparency | ( | int | val | ) | [inline] |
Referenced by setProperty().
{_transparency=val;}
| void SciFigs::GraphicObject::setTransparentMask | ( | bool | val | ) |
References TRACE.
Referenced by setProperty(), and SciFigs::TextEdit::TextEdit().
{
TRACE;
_mask=val;
if( !val) clearMask();
}
| GraphicSheet* SciFigs::GraphicObject::sheet | ( | ) | [inline] |
Referenced by addActions(), enterEvent(), Seismic1DThread::initModelGraphs(), MagnetoTelluricThread::initModelGraphs(), leaveEvent(), mouseReleaseEvent(), SciFigs::AxisWindow::polish(), NAModelsPlot::setParent(), SciFigs::AxisWindow::updateExternalGeometry(), updateGeometryProperties(), and SciFigs::AxisWindow::updateInternalGeometry().
{return _sheet;}
| void SciFigs::GraphicObject::showEvent | ( | QShowEvent * | e | ) | [protected, virtual] |
Ensures that the widget is polished when not docked into a GraphicSheet
References polish(), and TRACE.
{
TRACE;
polish();
QWidget::showEvent(e);
}
| void SciFigs::GraphicObject::showProperties | ( | ) | [slot] |
References addProperties(), QGpGuiTools::PropertyContext::initProxy(), proxy(), QGpGuiTools::PropertyContext::raiseEditor(), QGpGuiTools::PropertyProxy::restoreStates(), QGpGuiTools::PropertyProxy::saveStates(), QGpGuiTools::PropertyContext::setPropertyTitle(), QGpGuiTools::PropertyProxy::setValues(), SciFigs::GraphicSheet::showProperties(), and TRACE.
Referenced by addActions(), and mouseDoubleClickEvent().
{
TRACE;
if(_sheet) {
_sheet->showProperties();
} else {
initProxy();
proxy()->saveStates();
addProperties(proxy());
setPropertyTitle(this);
raiseEditor();
proxy()->restoreStates();
proxy()->setValues();
}
}
| void SciFigs::GraphicObject::sizeChanged | ( | ) | [signal] |
| virtual QSize SciFigs::GraphicObject::sizeHint | ( | ) | const [inline, virtual] |
Reimplemented in SciFigs::ActivityMonitor.
{return QSize(250, 250);}
| void SciFigs::GraphicObject::startDragging | ( | ) | [inline] |
{_oldPrintPos=_printAnchor;}
| int SciFigs::GraphicObject::transparency | ( | ) | const [inline] |
Referenced by properties().
{return _transparency;}
| bool SciFigs::GraphicObject::transparentMask | ( | ) | const [inline] |
Referenced by SciFigs::ColorPaletteWidget::deepUpdate(), SciFigs::AxisWindow::deepUpdate(), exportImage(), image(), print(), properties(), SciFigs::ColorPaletteWidget::update(), SciFigs::AxisWindow::update(), update(), SciFigs::AxisWindow::updateExternalGeometry(), updateGeometry(), and SciFigs::AxisWindow::updateInternalGeometry().
{return _mask;}
| void SciFigs::GraphicObject::update | ( | ) | [virtual, slot] |
Reimplemented in SciFigs::AxisWindow, SciFigs::ColorPaletteWidget, SciFigs::LegendWidget, and SciFigs::TextEdit.
References TRACE, transparentMask(), and updateMask().
Referenced by polish(), scaleWidgetFonts(), and SciFigs::GraphicSheet::update().
{
TRACE;
if(transparentMask()) {
updateMask();
}
QWidget::update();
}
| void SciFigs::GraphicObject::updateGeometry | ( | ) | [virtual, slot] |
Emit the signals positionChanged() and sizeChanged(). When docked in a sheet, it tells GraphicSheet to move or to resize the object together with its selection widget.
Call this function every time you modify the position or the size of the object, e.g. with printX or printWidth properties.
Reimplemented in SciFigs::AxisWindow.
References positionChanged(), sizeChanged(), TRACE, transparentMask(), and updateMask().
Referenced by TFAResults::createObjects(), MonoStation::WinResults::loadResults(), MonoStation::WinResults::setLayout(), MonoStation::WinResults::setStations(), and xml_polish().
{
TRACE;
emit positionChanged();
emit sizeChanged();
if(transparentMask()) updateMask();
}
References QGpGuiTools::PropertyProxy::currentTabWidget(), isActive(), QGpGuiTools::PropertyProxy::setCurrentCategory(), QGpGuiTools::PropertyProxy::setCurrentTab(), QGpGuiTools::PropertyProxy::setCurrentTabValues(), QGpGuiTools::PropertyWidget::setWidgets(), sheet(), TRACE, and w.
Referenced by SciFigs::GraphicSheet::moveObject().
{
TRACE;
if(sheet() && isActive() && pp->setCurrentCategory(_category) && pp->setCurrentTab(_tabGeomery)) {
GraphicObjectGeometryProperties * w=static_cast<GraphicObjectGeometryProperties *>(pp->currentTabWidget());
pp->setCurrentTabValues();
w->setWidgets();
}
}
| void SciFigs::GraphicObject::updateMask | ( | ) | [protected] |
References colorMask(), paint(), SciFigs::SciFigsGlobal::screenResolution(), and TRACE.
Referenced by SciFigs::ColorPaletteWidget::deepUpdate(), exportImage(), SciFigs::GraphicSheet::image(), SciFigs::ColorPaletteWidget::update(), update(), and updateGeometry().
{
TRACE;
// Repaint the widget in a pixmap (like it appear on the screen)
if(width()==0 || height()==0) return;
QPixmap pixmap(width(), height());
QPainter p;
p.begin(&pixmap);
p.fillRect(0, 0, width(), height(), Qt::white);
paint(p, SciFigsGlobal::screenResolution(), width(), height(), false);
p.end();
QBitmap mask=colorMask(pixmap, 0xFFFFFFFF);
setMask(mask); // TODO: on next repaint this mask will be used, but the rest of the widget won't be erased
}
| void SciFigs::GraphicObject::wantToBeSelected | ( | GraphicObject * | , |
| Qt::KeyboardModifiers | |||
| ) | [signal] |
Referenced by setActive().
| void SciFigs::GraphicObject::wantToStartDragging | ( | ) | [signal] |
Referenced by mousePressEvent().
| virtual XMLMember SciFigs::GraphicObject::xml_member | ( | XML_MEMBER_ARGS | ) | [inline, protected, virtual] |
Re-implement this function to offer XML restore (children and properties) support to your class.
From tag and map (with contains the attibute value) return a unique identifier under the format of a XMLMember. XMLMember is initialized with 3 types of contructors:
Map of attributes can be inspected in this way (can be achived also in xml_setProperty()):
static const QString tmp("childrenName"); XMLRestoreAttributeIterator it=map.find(tmp); if(it!=map.end()) { // found attribute "childrenName" }
If the map of attributes is not used:
Q_UNUSED(attributes);
if(tag=="x1") return XMLMember(0);
else if(tag=="y1") return XMLMember(1);
else if(tag=="x2") return XMLMember(2);
else if(tag=="y2") return XMLMember(3);
else return XMLMember(XMLMember::Unknown);
Arithmetic operations + and - apply to XMLMember to avoid confusion of property id numbers between inherited objects. Offset 3 corresponds to the number of properties defined in this object.
if(tag=="anInteger") return XMLMember(0); else if(tag=="aString") return XMLMember(1); else if(tag=="aDouble") return XMLMember(2); return AbstractLine::xml_member(tag, attributes, context)+3;
For the arguments of this function use Macro XML_MEMBER_ARGS.
Reimplemented from QGpCoreTools::XMLClass.
Reimplemented in SciFigs::ColorPaletteWidget, SciFigs::LegendWidget, SciFigs::AxisWindow, and SciFigs::TextEdit.
{return qobject_member(this, tag, attributes, context);}
| void SciFigs::GraphicObject::xml_polish | ( | XML_POLISH_ARGS | ) | [protected, virtual] |
Reimplemented from QGpCoreTools::XMLClass.
Reimplemented in SciFigs::AxisWindow.
References TRACE, and updateGeometry().
{
TRACE;
Q_UNUSED(context);
/* Used to re-order object according to make-up
if(sheet()) {
if(selectionWidget()) selectionWidget()->raise();
raise();
}*/
updateGeometry();
}
| virtual bool SciFigs::GraphicObject::xml_setProperty | ( | XML_SETPROPERTY_ARGS | ) | [inline, protected, virtual] |
Re-implement this function to offer XML restore properties support to your class.
From memberID set the corresponding property with value content. The map of attributes is given as a supplementary information (not useful in all cases).
For a general case:
Q_UNUSED(attributes); double val=content.toDouble(); switch (memberID) { case 0: _x1=val; return true; case 1: _y1=val; return true; case 2: _x2=val; return true; case 3: _y2=val; return true; default: return false; }
For classes inheriting other classes (see also xml_member())
switch (memberID) { case 0: _anInteger=content.toString(); return true; case 1: _aString=content.toInt(); return true; case 2: _aDouble=content.toDouble(); return true; default: return AbstractLine::xml_setProperty(memberID-3, map, content);
For the arguments of this function use Macro XML_SETPROPERTY_ARGS.
Reimplemented from QGpCoreTools::XMLClass.
Reimplemented in SciFigs::TextEdit.
{return qobject_setProperty(this, memberID, tag, attributes, content, context);}
| virtual const QString& SciFigs::GraphicObject::xml_tagName | ( | ) | const [inline, virtual] |
Implements QGpCoreTools::XMLClass.
Reimplemented in SciFigs::ColorPaletteWidget, SciFigs::LegendWidget, SciFigs::AxisWindow, SciFigs::ImageWidget, and SciFigs::TextEdit.
Referenced by SciFigs::GraphicSheet::findObject().
{return xmlGraphicObjectTag;}
| virtual void SciFigs::GraphicObject::xml_writeProperties | ( | XML_WRITEPROPERTIES_ARGS | ) | const [inline, protected, virtual] |
Reimplemented from QGpCoreTools::XMLClass.
{qobject_writeProperties(this, this, s, context);}
friend class GraphicSheet [friend] |
friend class SelectionWidget [friend] |
PositionAnchor SciFigs::GraphicObject::_anchor [protected] |
Referenced by GraphicObject(), operator=(), printBottom(), printLeft(), printRight(), printTop(), setPrintBottom(), setPrintLeft(), setPrintRight(), and setPrintTop().
Point2D SciFigs::GraphicObject::_printAnchor [protected] |
double SciFigs::GraphicObject::_printBottomMargin [protected] |
Referenced by GraphicObject(), image(), operator=(), and printSvg().
double SciFigs::GraphicObject::_printHeight [protected] |
double SciFigs::GraphicObject::_printLeftMargin [protected] |
Referenced by GraphicObject(), image(), operator=(), and printSvg().
double SciFigs::GraphicObject::_printRightMargin [protected] |
Referenced by GraphicObject(), image(), operator=(), and printSvg().
double SciFigs::GraphicObject::_printTopMargin [protected] |
Referenced by GraphicObject(), image(), operator=(), and printSvg().
double SciFigs::GraphicObject::_printWidth [protected] |
const QString SciFigs::GraphicObject::allImageFilter = ";;" + GraphicObject::pixelImageFilter [static] |
Referenced by exportImage(), and SciFigs::GraphicSheet::exportImage().
const QString SciFigs::GraphicObject::pixelImageFilter = "PNG (*.png);;PPM (*.ppm);;XBM (*.xbm);;XPM (*.xpm)" [static] |
const QString SciFigs::GraphicObject::vectorialImageFilter = "PS (*.ps);;PDF (*.pdf);;SVG (*.svg)" [static] |
const QString SciFigs::GraphicObject::xmlGraphicObjectTag = "GraphicObject" [static] |
QString SciFigs::GraphicObject::anchor [read, write] |
bool SciFigs::GraphicObject::constantWidthHeightRatio [read, write] |
QString SciFigs::GraphicObject::name [read, write] |
Referenced by setObjectName().
QString SciFigs::GraphicObject::objectName [read, write] |
double SciFigs::GraphicObject::printBottomMargin [read, write] |
Return the bottom margin in cm.
Referenced by SciFigs::GraphicSheet::autoResizeContent().
double SciFigs::GraphicObject::printHeight [read, write] |
Return the printing height of the object in cm
Referenced by addPlot(), SciFigs::GraphicSheet::alignY(), MonoStation::WinResults::loadResults(), SciFigs::GraphicSheet::paste(), SciFigs::GraphicSheet::resizeObject(), MonoStation::WinResults::setLayout(), and SciFigs::GraphicSheet::showObject().
double SciFigs::GraphicObject::printLeftMargin [read, write] |
Return the left margin in cm.
int SciFigs::GraphicObject::printResolution [read, write] |
Return the printing resolution of the object in dot per inch
Referenced by SciFigs::GraphicSheet::maximumResolution().
double SciFigs::GraphicObject::printRightMargin [read, write] |
Return the right margin in cm.
Referenced by SciFigs::GraphicSheet::autoResizeContent().
double SciFigs::GraphicObject::printTopMargin [read, write] |
Return the top margin in cm.
double SciFigs::GraphicObject::printWidth [read, write] |
Return the printing width of the object in cm
Referenced by addPlot(), SciFigs::GraphicSheet::alignX(), SciFigs::GraphicSheet::paste(), SciFigs::GraphicSheet::resizeObject(), MonoStation::WinResults::setLayout(), and SciFigs::GraphicSheet::showObject().
double SciFigs::GraphicObject::printX [read, write] |
double SciFigs::GraphicObject::printY [read, write] |
int SciFigs::GraphicObject::transparency [read, write] |
bool SciFigs::GraphicObject::transparentMask [read, write] |
Referenced by SciFigs::GraphicSheet::image().
