Draw a legend in a GraphicSheet. More...

#include <LegendWidget.h>

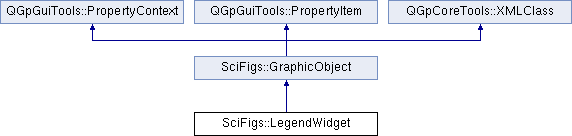

Inheritance diagram for SciFigs::LegendWidget:

Public Slots
Q_SCRIPTABLE void	load (QString fileName)
Q_SCRIPTABLE void	save (QString fileName)
Signals
void	changed (Legend leg)
Public Member Functions
virtual void	addProperties (PropertyProxy *pp)
bool	adjustBox () const
QString	fontString () const
const Legend &	legend () const
Legend &	legend ()
	LegendWidget (QWidget *parent=0, Qt::WFlags f=0)
double	lineSize () const
LegendWidget &	operator= (const LegendWidget &o)
virtual void	polish ()
virtual void	properties (PropertyWidget *w) const
virtual void	removeProperties (PropertyProxy *pp)
void	resize (int n)
void	setAdjustBox (bool t)
void	setFontString (QString fs)
void	setLineSize (double ls)
virtual void	setProperty (uint wid, int pid, QVariant val)
void	setTitle (QString t)
QString	title () const
virtual void	update ()
virtual const QString &	xml_tagName () const
	~LegendWidget ()
Static Public Attributes
static const QString	xmlLegendWidgetTag = "LegendWidget"
Protected Member Functions
virtual void	paint (QPainter &p, double dotpercm, int w, int h, bool mask)
virtual void	setPrintSize (double dotpercm)
XMLMember	xml_member (XML_MEMBER_ARGS)
void	xml_writeChildren (XML_WRITECHILDREN_ARGS) const
Properties
bool	adjustBox
QString	font
double	lineSize
double	lineWidth
QString	title

Detailed Description

Draw a legend in a GraphicSheet.

This is graphical legend that lets you map pen and symbols to a string expression

Constructor & Destructor Documentation

SciFigs::LegendWidget::LegendWidget	(	QWidget *	parent = `0`,
		Qt::WFlags	f = `0`
	)

Description of constructor still missing

References setTitle(), QGpCoreTools::tr(), and TRACE.

    : GraphicObject(parent, f)
{
  TRACE;
  setTitle(tr( "Title" ));
  _lineSize=1.5;
  _adjustBox=true;
  adjustSize();
}

SciFigs::LegendWidget::~LegendWidget ( )

References TRACE.

{
  TRACE;
}

Member Function Documentation

void SciFigs::LegendWidget::addProperties ( PropertyProxy * pp ) [virtual]

Setup property editor

Reimplemented from SciFigs::GraphicObject.

References QGpGuiTools::PropertyProxy::addCategory(), QGpGuiTools::PropertyProxy::addReference(), QGpGuiTools::PropertyProxy::addTab(), SciFigs::LegendTable::All, QGpGuiTools::PropertyProxy::setCurrentCategory(), QGpGuiTools::PropertyProxy::setCurrentTab(), SciFigs::LegendProperties::setPropertySections(), QGpCoreTools::tr(), and TRACE.

{
  TRACE;
  GraphicObject::addProperties(pp);
  if( !pp->setCurrentCategory(_category) ) {
    pp->addCategory(_category, tr("Legend"), QIcon( ":/images/LegendWidget.png"));
  }
  if(pp->setCurrentTab(_tabLegend)) {
    pp->addReference(this);
  } else {
    LegendProperties * w=new LegendProperties;
    w->setPropertySections(LegendTable::All);
    pp->addTab(_tabLegend, tr("Legend"), w, this);
  }
  if(pp->setCurrentTab(_tabFormat)) {
    pp->addReference(this);
  } else {
    LegendFormatProperties * w=new LegendFormatProperties;
    pp->addTab(_tabFormat, tr("Format"), w, this);
  }
}

bool SciFigs::LegendWidget::adjustBox ( ) const [inline]

Referenced by properties().

{return _adjustBox;}

void SciFigs::LegendWidget::changed ( Legend leg ) [signal]

Referenced by load(), and setProperty().

QString SciFigs::LegendWidget::fontString ( ) const [inline]

{return font().toString();}

const Legend& SciFigs::LegendWidget::legend ( ) const [inline]

Referenced by Seismic1DThread::addModel(), MagnetoTelluricThread::addModel(), load(), properties(), and setProperty().

{return _legend;}

Legend& SciFigs::LegendWidget::legend ( ) [inline]

{return _legend;}

double SciFigs::LegendWidget::lineSize ( ) const [inline]

Referenced by paint(), and properties().

{return _lineSize;}

void SciFigs::LegendWidget::load ( QString fileName ) [slot]

References changed(), SciFigs::XMLSciFigs::Data, QGpCoreTools::XMLErrorReport::exec(), legend(), SciFigs::XMLSciFigs::restoreFile(), QGpCoreTools::XMLErrorReport::setFileName(), QGpCoreTools::XMLErrorReport::setTitle(), QGpCoreTools::tr(), and TRACE.

{
  TRACE;
  if(fileName.length()>0) {
    XMLErrorReport xmler(XMLErrorReport::Read);
    xmler.setTitle(tr("Load legend"));
    xmler.setFileName(fileName);
    XMLSciFigs s;
    xmler.exec(s.restoreFile(fileName,&_legend,XMLSciFigs::Data));
    emit changed(legend());
  }
}

LegendWidget & SciFigs::LegendWidget::operator= ( const LegendWidget & o )

References TRACE.

{
  TRACE;
  _legend=o._legend;
  GraphicObject::operator=(o);
  _title=o._title;
  _lineSize=o._lineSize;
  _adjustBox=o._adjustBox;
  return *this;
}

void SciFigs::LegendWidget::paint	(	QPainter &	p,
		double	dotpercm,
		int	w,
		int	h,
		bool	mask
	)		`[protected, virtual]`

Virtual function to be re-implemented for each type of object to paint specific content. It is different than the classical QWidget function of the same type. Actually, the needed resolution is passed as argument as well as the screen width and height of the object. It is called by print().

Nothing is done, calling it in re-implemented function is useless.

Reimplemented from SciFigs::GraphicObject.

References SciFigs::Legend::count(), font, lineSize(), MAX_INT, SciFigs::Symbol::paint(), SciFigs::Symbol::pen(), SciFigs::Legend::pen(), SciFigs::Pen::qpen(), SciFigs::Symbol::size(), SciFigs::Legend::symbol(), SciFigs::Legend::text(), SciFigs::Legend::textColor(), TRACE, and SciFigs::Pen::width().

{
  TRACE;
  p.save();
  // Calculate the height of text
  p.setFont(font());
  int fontHeight=p.fontMetrics().height();
  int y=0;
  int spacing=(int)round(0.2*dotpercm);
  QRect r;
  // Draw title
  if(!_title.isEmpty()) {
    r=p.boundingRect(0, 0, w, MAX_INT, Qt::AlignHCenter | Qt::AlignTop | Qt::TextWordWrap, _title);
    p.drawText(0, y, w, r.height(), Qt::AlignHCenter | Qt::AlignTop | Qt::TextWordWrap, _title);
    y+=r.height()+spacing;
  }
  // Draw items
  int lineSize=(int) floor(_lineSize * dotpercm + 0.5);
  QPen textPen(Qt::black, 1, Qt::SolidLine);
  for(int i=0 ; i<_legend.count(); i++) {
    int lineHeight=(int)round(_legend.pen(i).width()*0.1*dotpercm);
    int symHeight=(int)round((_legend.symbol(i).size()+_legend.symbol(i).pen().width())*0.1*dotpercm);
    int h=lineHeight<symHeight ? symHeight : lineHeight;
    if(!_legend.text(i).isEmpty()) {
      r=p.boundingRect(0, 0, w-lineSize-spacing, MAX_INT, Qt::AlignLeft | Qt::AlignTop | Qt::TextWordWrap,_legend.text(i));
      if(r.height()>h) h=r.height();
      r.translate(lineSize+spacing, y+((h-r.height()) >> 1));
      p.setPen(_legend.textColor(i));
      p.drawText(r, Qt::AlignLeft | Qt::AlignTop | Qt::TextWordWrap, _legend.text(i));
    } else {
      if(fontHeight>h) h=fontHeight;
    }
    int yc=y+(h >> 1);
    y+=h+spacing;
    p.save();
    p.setPen(_legend.pen(i).qpen(dotpercm));
    p.drawLine(0, yc, lineSize, yc);
    _legend.symbol(i).paint(p, QPointF(lineSize >> 1, yc), dotpercm);
    p.restore();
  }
  p.restore();
}

void SciFigs::LegendWidget::polish ( ) [virtual]

Ensure that the widget is at least updated once.

Reimplemented from SciFigs::GraphicObject.

References TRACE.

{
  TRACE;
  adjustSize();
  GraphicObject::polish();
}

void SciFigs::LegendWidget::properties ( PropertyWidget * w ) const [virtual]

Reimplemented from SciFigs::GraphicObject.

References SciFigs::LegendFormatProperties::AdjustBox, adjustBox(), SciFigs::LegendFormatProperties::Font, font, QGpGuiTools::PropertyWidget::id(), SciFigs::LegendProperties::Legend, legend(), SciFigs::LegendFormatProperties::LineSize, lineSize(), QGpGuiTools::PropertyWidget::setValue(), SciFigs::LegendFormatProperties::Title, title(), and TRACE.

{
  TRACE;
  if(w->id()==_tabLegend) {
    w->setValue(LegendProperties::Legend, QVariant::fromValue(legend()));
  } else if(w->id()==_tabFormat) {
    w->setValue(LegendFormatProperties::Title, title());
    w->setValue(LegendFormatProperties::Font, font().toString());
    w->setValue(LegendFormatProperties::LineSize, lineSize());
    w->setValue(LegendFormatProperties::AdjustBox, adjustBox());
  } else {
    GraphicObject::properties(w);
  }
}

void SciFigs::LegendWidget::removeProperties ( PropertyProxy * pp ) [virtual]

Cleanup property editor

Reimplemented from SciFigs::GraphicObject.

References QGpGuiTools::PropertyProxy::removeTab(), QGpGuiTools::PropertyProxy::setCurrentCategory(), and TRACE.

{
  TRACE;
  GraphicObject::removeProperties(pp);
  if(pp->setCurrentCategory(_category) ) {
    pp->removeTab(_tabLegend, this);
    pp->removeTab(_tabFormat, this);
  }
}

void SciFigs::LegendWidget::resize ( int n ) [inline]

{_legend.resize(n);}

void SciFigs::LegendWidget::save ( QString fileName ) [slot]

References SciFigs::XMLSciFigs::Data, QGpCoreTools::XMLErrorReport::exec(), SciFigs::XMLSciFigs::saveFile(), QGpCoreTools::XMLErrorReport::setFileName(), QGpCoreTools::XMLErrorReport::setTitle(), QGpCoreTools::tr(), and TRACE.

{
  TRACE;
  if(fileName.length()>0) {
    XMLErrorReport xmler(XMLErrorReport::Write);
    xmler.setTitle(tr("Save legend"));
    xmler.setFileName(fileName);
    XMLSciFigs s;
    xmler.exec(s.saveFile(fileName,&_legend,XMLSciFigs::Data));
  }
}

void SciFigs::LegendWidget::setAdjustBox ( bool t ) [inline]

Referenced by setProperty().

{_adjustBox=t;}

void SciFigs::LegendWidget::setFontString ( QString fs ) [inline]

{QFont f;f.fromString(fs);setFont(f);}

void SciFigs::LegendWidget::setLineSize ( double ls ) [inline]

Referenced by setProperty().

{_lineSize=ls;}

void SciFigs::LegendWidget::setPrintSize ( double dotpercm ) [protected, virtual]

Called before and after printing to adjust the size of object. Normally what you see is what you get, but there might be some slight modification due to rounding error when scaling fonts. All object that offer options to automatically adjust size and if it depends upon fonts must re-implement this function.

The basic implemetation does nothing.

Reimplemented from SciFigs::GraphicObject.

References SciFigs::GraphicObject::setPrintHeight(), SciFigs::GraphicObject::setPrintWidth(), and w.

{
  if(_adjustBox) {
    int w, h;
    adjustSize(dotpercm, w, h);
    setPrintWidth(( w + 1)/dotpercm);
    setPrintHeight(( h + 1)/dotpercm);
  }
}

void SciFigs::LegendWidget::setProperty	(	uint	wid,
		int	pid,
		QVariant	val
	)		`[virtual]`

Set value val to property id, after a user action in property editor

Reimplemented from SciFigs::GraphicObject.

References SciFigs::LegendFormatProperties::AdjustBox, changed(), SciFigs::LegendFormatProperties::Font, legend(), SciFigs::LegendFormatProperties::LineSize, setAdjustBox(), setLineSize(), setTitle(), SciFigs::LegendFormatProperties::Title, TRACE, and update().

{
  TRACE;
  if(wid==_tabLegend) {
    legend()= val.value<Legend>();
    update();
    emit changed(legend());
  } else if(wid==_tabFormat) {
    switch(pid) {
    case LegendFormatProperties::Title:
      setTitle(val.toString());
      break;
    case LegendFormatProperties::Font: {
        QFont f;
        if(f.fromString(val.toString()) ) {
          setFont(f);
        }
      }
      break;
    case LegendFormatProperties::LineSize:
      setLineSize(val.toDouble());
      break;
    case LegendFormatProperties::AdjustBox:
      setAdjustBox(val.toBool());
      break;
    default:
      break;
    }
    update();
  } else {
    GraphicObject::setProperty(wid, pid, val);
  }
}

void SciFigs::LegendWidget::setTitle ( QString t ) [inline]

Referenced by ResultsThread::createLegend(), LegendWidget(), and setProperty().

{_title=t;}

QString SciFigs::LegendWidget::title ( ) const [inline]

Referenced by properties().

{return _title;}

void SciFigs::LegendWidget::update ( ) [virtual]

Reimplemented from SciFigs::GraphicObject.

References TRACE.

Referenced by ResultsThread::createLegend(), and setProperty().

{
  TRACE;
  adjustSize();
  GraphicObject::update();
}

XMLMember SciFigs::LegendWidget::xml_member ( XML_MEMBER_ARGS ) [protected, virtual]

Re-implement this function to offer XML restore (children and properties) support to your class.

From tag and map (with contains the attibute value) return a unique identifier under the format of a XMLMember. XMLMember is initialized with 3 types of contructors:

An integer: id number of a property
A XMLClass * : a child of this object identified by tag
Default constructor: error, unknow child or property

Map of attributes can be inspected in this way (can be achived also in xml_setProperty()):

    static const QString tmp("childrenName");
    XMLRestoreAttributeIterator it=map.find(tmp);
    if(it!=map.end()) {
      // found attribute "childrenName"
    }

If the map of attributes is not used:

    Q_UNUSED(attributes);
    if(tag=="x1") return XMLMember(0);
    else if(tag=="y1") return XMLMember(1);
    else if(tag=="x2") return XMLMember(2);
    else if(tag=="y2") return XMLMember(3);
    else return XMLMember(XMLMember::Unknown);

Arithmetic operations + and - apply to XMLMember to avoid confusion of property id numbers between inherited objects. Offset 3 corresponds to the number of properties defined in this object.

    if(tag=="anInteger") return XMLMember(0);
    else if(tag=="aString") return XMLMember(1);
    else if(tag=="aDouble") return XMLMember(2);
    return AbstractLine::xml_member(tag, attributes, context)+3;

For the arguments of this function use Macro XML_MEMBER_ARGS.

Reimplemented from SciFigs::GraphicObject.

References SciFigs::XMLSciFigs::data(), and TRACE.

{
  TRACE;
  XMLSciFigs * scifigsContext=static_cast<XMLSciFigs *>(context);
  if(scifigsContext->data()) {
    if(tag=="Legend") return XMLMember(&_legend);
  }
  return GraphicObject::xml_member(tag, attributes, context);
}

virtual const QString& SciFigs::LegendWidget::xml_tagName ( ) const [inline, virtual]

Reimplemented from SciFigs::GraphicObject.

{return xmlLegendWidgetTag;}

void SciFigs::LegendWidget::xml_writeChildren ( XML_WRITECHILDREN_ARGS ) const [protected, virtual]

Reimplemented from QGpCoreTools::XMLClass.

References SciFigs::XMLSciFigs::data(), TRACE, and QGpCoreTools::XMLClass::xml_save().

{
  TRACE;
  XMLSciFigs * scifigsContext=static_cast<XMLSciFigs *>(context);
  if(scifigsContext->data()) _legend.xml_save(s, context);
}

Member Data Documentation

const QString SciFigs::LegendWidget::xmlLegendWidgetTag = "LegendWidget" [static]

Property Documentation

bool SciFigs::LegendWidget::adjustBox [read, write]

QString SciFigs::LegendWidget::font [read, write]

Referenced by paint(), and properties().

double SciFigs::LegendWidget::lineSize [read, write]

double SciFigs::LegendWidget::lineWidth [read, write]

QString SciFigs::LegendWidget::title [read, write]

The documentation for this class was generated from the following files:

SciFigs/LegendWidget.h
SciFigs/LegendWidget.cpp

Public Slots

Signals

Public Member Functions

Static Public Attributes

Protected Member Functions

Properties

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

Property Documentation
