SciFigs::XYValuePlot Class Reference

A XYValuePlot is a layer to draw dots of color (static) More...

#include <XYValuePlot.h>

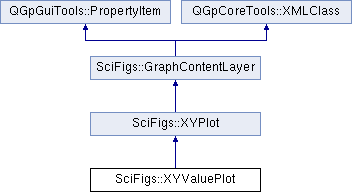

Inheritance diagram for SciFigs::XYValuePlot:
SciFigs::XYPlot SciFigs::GraphContentLayer QGpGuiTools::PropertyItem QGpCoreTools::XMLClass

List of all members.

Public Slots

void setPalette (const ColorPalette &pal)

Signals

void paletteChanged (const ColorPalette &pal)

Public Member Functions

virtual void addProperties (PropertyProxy *pp)
virtual bool hasProperties ()
const ColorPalette & palette () const
virtual void properties (PropertyWidget *w) const
virtual void removeProperties (PropertyProxy *pp)
void setLinearPalette (double minVal, double maxVal)
void setLogPalette (double minVal, double maxVal)
virtual void setProperty (uint wid, int pid, QVariant val)
void setValues (QVector< double > *val)
void valueRange (double &min, double &max) const
virtual const QString & xml_tagName () const
 XYValuePlot (AxisWindow *parent=0)
 ~XYValuePlot ()

Static Public Attributes

static const QString xmlXYValuePlotTag = "XYValuePlot"

Protected Member Functions

virtual void paintData (const LayerPainterRequest &lp, QPainter &p, double dotpercm) const
virtual XMLMember xml_member (XML_MEMBER_ARGS)
virtual void xml_polishChild (XML_POLISHCHILD_ARGS)
virtual bool xml_setBinaryData (XML_SETBINARYDATA_ARGS)
virtual void xml_writeBinaryData (XML_WRITEBINARYDATA_ARGS) const
virtual void xml_writeChildren (XML_WRITECHILDREN_ARGS) const

Protected Attributes

ColorPalette _pal
QVector< double > * _values

Static Protected Attributes

static uint _tabPalette = PropertyProxy::uniqueId()

Detailed Description

A XYValuePlot is a layer to draw dots of color (static)

The difference with XYColorPlot is that color can be directly set through a color palette. A color is not directly affected to points but a value, the color is calculated from the value and the palette.

Constructor & Destructor Documentation

SciFigs::XYValuePlot::XYValuePlot ( AxisWindow *  parent = 0)

References _pal, _values, QGpGuiTools::ColorPalette::defaultColors(), and TRACE.

                                            :
    XYPlot(parent)
{
  TRACE;
  _values=0;
  _pal.defaultColors(20);
}
SciFigs::XYValuePlot::~XYValuePlot ( )

References _values, and TRACE.

{
  TRACE;
  delete _values;
}

Member Function Documentation

void SciFigs::XYValuePlot::addProperties ( PropertyProxy *  pp) [virtual]

Setup property editor

Reimplemented from SciFigs::XYPlot.

References _tabPalette, QGpGuiTools::PropertyProxy::addReference(), QGpGuiTools::PropertyProxy::addTab(), QGpGuiTools::PropertyProxy::setCurrentTab(), QGpCoreTools::tr(), TRACE, and w.

{
  TRACE;
  XYPlot::addProperties(pp);
  if(pp->setCurrentTab(_tabPalette)) {
    pp->addReference(this);
  } else {
    PaletteProperties * w=new PaletteProperties;
    pp->addTab(_tabPalette, tr("Palette"), w, this);
  }
}
virtual bool SciFigs::XYValuePlot::hasProperties ( ) [inline, virtual]

Reimplemented from SciFigs::XYPlot.

{return true;}
void SciFigs::XYValuePlot::paintData ( const LayerPainterRequest &  lp,
QPainter &  p,
double  dotpercm
) const [protected, virtual]

Reimplemented from SciFigs::XYPlot.

References _pal, SciFigs::XYPlot::_symbol, _values, QGpGuiTools::ColorPalette::color(), SciFigs::XYPlot::count(), SciFigs::XYPlot::getPaintParam(), SciFigs::LayerPainterRequest::options(), SciFigs::GraphContentLayer::paint(), SciFigs::GraphContentOptions::r2sF(), TRACE, SciFigs::GraphContentOptions::xVisMax(), SciFigs::GraphContentOptions::xVisMin(), SciFigs::GraphContentOptions::yVisMax(), and SciFigs::GraphContentOptions::yVisMin().

{
  TRACE;
  // Make a copy of current palette (mandatory for multi-thread, palette are implicitly shared
  // objects so deep copy probably is not occuring right now, only upon user request for modification)
  ColorPalette pal=_pal;
  const GraphContentOptions& gc=lp.options();
  p.setRenderHints(QPainter::Antialiasing, true);
  int count;
  double pointSize, halfPointSize;
  getPaintParam(count, pointSize, halfPointSize, dotpercm);
  if(count>_values->count()) count=_values->count();
  for(int i=0; i<count; i++) {
    double x=(*_xData)[i];
    if(x>gc.xVisMin() && x<gc.xVisMax()) {
      double y=(*_yData)[i];
      if(y>gc.yVisMin() && y<gc.yVisMax()) {
        QColor c=pal.color(_values->at(i));
        p.setBrush(c);
        p.setPen(c);
        Symbol::paint(_symbol, p, gc.r2sF(x, y), pointSize, halfPointSize);
      }
    }
  }
}
const ColorPalette& SciFigs::XYValuePlot::palette ( ) const [inline]

Referenced by properties(), setLinearPalette(), and setLogPalette().

{return _pal;}
void SciFigs::XYValuePlot::paletteChanged ( const ColorPalette &  pal) [signal]

Referenced by setLinearPalette(), setLogPalette(), and setPalette().

void SciFigs::XYValuePlot::properties ( PropertyWidget *  w) const [virtual]

Reimplemented from SciFigs::XYPlot.

References _tabPalette, QGpGuiTools::PropertyWidget::id(), SciFigs::PaletteProperties::Palette, palette(), and QGpGuiTools::PropertyWidget::setValue().

{
  if(w->id()==_tabPalette) {
    w->setValue(PaletteProperties::Palette, QVariant::fromValue(palette()));
  } else {
    XYPlot::properties(w);
  }
}
void SciFigs::XYValuePlot::removeProperties ( PropertyProxy *  pp) [virtual]

Clean property editor

Reimplemented from SciFigs::XYPlot.

References _tabPalette, QGpGuiTools::PropertyProxy::removeTab(), and TRACE.

{
  TRACE;
  XYPlot::removeProperties(pp);
  pp->removeTab(_tabPalette, this);
}
void SciFigs::XYValuePlot::setLinearPalette ( double  minVal,
double  maxVal
)

Set a linear scale on palette. Safe for painting threads. For other modification of the palette see setPalette().

References _pal, palette(), paletteChanged(), QGpGuiTools::ColorPalette::setVLinear(), and TRACE.

Referenced by addDotPlot().

{
  TRACE;
  LayerLocker ll(this);
  _pal.setVLinear(minVal, maxVal);
  emit paletteChanged(palette());
}
void SciFigs::XYValuePlot::setLogPalette ( double  minVal,
double  maxVal
)

Set a log scale on palette. Safe for painting threads. For other modification of the palette see setPalette().

References _pal, palette(), paletteChanged(), QGpGuiTools::ColorPalette::setVLog(), and TRACE.

Referenced by MonoStation::AbstractSummary::setBubbleValues().

{
  TRACE;
  LayerLocker ll(this);
  _pal.setVLog(minVal, maxVal);
  emit paletteChanged(palette());
}
void SciFigs::XYValuePlot::setPalette ( const ColorPalette &  pal) [slot]

Set the palette. Safe for painting threads.

References _pal, SciFigs::GraphContent::deepUpdate(), SciFigs::GraphContentLayer::graphContent(), paletteChanged(), and TRACE.

Referenced by MonoStation::AbstractSummary::createBubbleGraph(), createDotsPlot(), setProperty(), and xml_polishChild().

{
  TRACE;
  // Avoid recurrent loop
  static bool locked=false;
  if(!locked) {
    locked=true;
    LayerLocker ll(this);
    _pal=pal;
    // This layer takes generally time to repaint (useless to repaint only this layer)
    graphContent()->deepUpdate();
    emit paletteChanged(pal);
    locked=false;
  }
}
void SciFigs::XYValuePlot::setProperty ( uint  wid,
int  pid,
QVariant  val
) [virtual]

Reimplemented from SciFigs::XYPlot.

References _tabPalette, SciFigs::PaletteProperties::Palette, and setPalette().

{
  if(wid==_tabPalette) {
    switch(pid) {
    case PaletteProperties::Palette:
      setPalette(val.value<ColorPalette>());
      break;
    default:
      break;
    }
  } else {
    XYPlot::setProperty(wid, pid, val);
  }
}
void SciFigs::XYValuePlot::setValues ( QVector< double > *  val)

Set the pointer to value Data

References _values, and TRACE.

Referenced by addDotPlot(), and MonoStation::AbstractSummary::setBubbleValues().

{
  TRACE;
  LayerLocker ll(this);
  if(_values) delete _values;
  _values=val;
}
void SciFigs::XYValuePlot::valueRange ( double &  min,
double &  max
) const

Get min and maximum of values (usually to adjust the palette). It is the responsability of the caller to initialize min and max to 1e99 and -1e99 respectively

References _values, and TRACE.

Referenced by addDotPlot(), and MonoStation::AbstractSummary::setBubbleValues().

{
  TRACE;
  if(_values->isEmpty()) return;
  double val=_values->at(0);
  if(val<min) min=val;
  if(val>max) max=val;
  for(int i=_values->count()-1;i>0;i--) {
    val=_values->at(i);
    if(val<min) min=val;
    else if(val>max) max=val;
  }
}
XMLMember SciFigs::XYValuePlot::xml_member ( XML_MEMBER_ARGS  ) [protected, virtual]

Re-implement this function to offer XML restore (children and properties) support to your class.

From tag and map (with contains the attibute value) return a unique identifier under the format of a XMLMember. XMLMember is initialized with 3 types of contructors:

  • An integer: id number of a property
  • A XMLClass * : a child of this object identified by tag
  • Default constructor: error, unknow child or property

Map of attributes can be inspected in this way (can be achived also in xml_setProperty()):

    static const QString tmp("childrenName");
    XMLRestoreAttributeIterator it=map.find(tmp);
    if(it!=map.end()) {
      // found attribute "childrenName"
    }

If the map of attributes is not used:

    Q_UNUSED(attributes);
    if(tag=="x1") return XMLMember(0);
    else if(tag=="y1") return XMLMember(1);
    else if(tag=="x2") return XMLMember(2);
    else if(tag=="y2") return XMLMember(3);
    else return XMLMember(XMLMember::Unknown);

Arithmetic operations + and - apply to XMLMember to avoid confusion of property id numbers between inherited objects. Offset 3 corresponds to the number of properties defined in this object.

    if(tag=="anInteger") return XMLMember(0);
    else if(tag=="aString") return XMLMember(1);
    else if(tag=="aDouble") return XMLMember(2);
    return AbstractLine::xml_member(tag, attributes, context)+3;

For the arguments of this function use Macro XML_MEMBER_ARGS.

Reimplemented from SciFigs::GraphContentLayer.

References SciFigs::XMLSciFigs::data(), and TRACE.

{
  TRACE;
  XMLSciFigs * scifigsContext=static_cast<XMLSciFigs *>(context);
  if(scifigsContext->data()) {
    if(tag=="ColorPalette") return XMLMember(new ColorPalette, true);
  }
  return XYPlot::xml_member(tag, attributes, context);
}
void SciFigs::XYValuePlot::xml_polishChild ( XML_POLISHCHILD_ARGS  ) [protected, virtual]

Reimplemented from QGpCoreTools::XMLClass.

References setPalette().

{
  Q_UNUSED(context);
  if(child->xml_tagName()=="ColorPalette") {
    ColorPalette * pal=static_cast<ColorPalette *>(child);
    setPalette( *pal);
  }
}
bool SciFigs::XYValuePlot::xml_setBinaryData ( XML_SETBINARYDATA_ARGS  ) [protected, virtual]

This function must be re-implemented in all classes dealing with binary data that cannot be saved in an ASCII xml file (e.g. due to the amount of data).

See also xml_writeBinaryData().

The difference between xml_setBinaryData() and xml_setBinaryData200410() is detected by the type of tag at the beginning of each block if it can be read with QString ==> 200510, else try with a normal C string, if it match the current tag then execute xml_setBinaryData200411().

See also xml_setBinaryData200411() to maintain compatibility with previous versions of xml storages.

For the arguments of this function use Macro XML_SETBINARYDATA_ARGS.

Reimplemented from SciFigs::XYPlot.

References _values, SciFigs::XYPlot::count(), TRACE, and SciFigs::XYPlot::xml_setBinaryData().

{
  TRACE;
  int n;
  if(XYPlot::xml_setBinaryData(s, context) && (n=count())>0) {
    QVector<double>::iterator it;
    QVector<double>::iterator itEnd;

    _values=new QVector<double>;
    _values->resize(n);
    itEnd=_values->end();
    for(it=_values->begin();it!=itEnd;++it) s >> *it;
  }
  return true;
}
virtual const QString& SciFigs::XYValuePlot::xml_tagName ( ) const [inline, virtual]

Reimplemented from SciFigs::XYPlot.

{return xmlXYValuePlotTag;}
void SciFigs::XYValuePlot::xml_writeBinaryData ( XML_WRITEBINARYDATA_ARGS  ) const [protected, virtual]

This function must be re-implemented in all classes dealing with binary data that cannot be saved in an ASCII xml file (e.g. due to the amount of data).

The way binary data is stored drastically changed in November 2006 with the introduction of tar.gz structures for xml files. Each class willing to store binary data can automatically generate a new file (with an automatic file name) in the .tar.gz structure by sending bytes to s.

See also xml_setBinaryData().

For the arguments of this function use Macro XML_WRITEBINARYDATA_ARGS.

Reimplemented from SciFigs::XYPlot.

References _values, and TRACE.

{
  TRACE;
  XYPlot::xml_writeBinaryData(s, context);
  QVector<double>::iterator it;
  QVector<double>::iterator itEnd;

  itEnd=_values->end();
  for(it=_values->begin();it!=itEnd;++it) s << *it;
}
void SciFigs::XYValuePlot::xml_writeChildren ( XML_WRITECHILDREN_ARGS  ) const [protected, virtual]

Reimplemented from QGpCoreTools::XMLClass.

References _pal, SciFigs::XMLSciFigs::data(), TRACE, and QGpCoreTools::XMLClass::xml_save().

{
  TRACE;
  XMLSciFigs * scifigsContext=static_cast<XMLSciFigs *>(context);
  if(scifigsContext->data()) {
    _pal.xml_save(s, context);
  }
}

Member Data Documentation

ColorPalette SciFigs::XYValuePlot::_pal [protected]

Referenced by paintData(), setLinearPalette(), setLogPalette(), setPalette(), xml_writeChildren(), and XYValuePlot().

uint SciFigs::XYValuePlot::_tabPalette = PropertyProxy::uniqueId() [static, protected]

Referenced by addProperties(), properties(), removeProperties(), and setProperty().

QVector<double>* SciFigs::XYValuePlot::_values [protected]

Referenced by paintData(), setValues(), valueRange(), xml_setBinaryData(), xml_writeBinaryData(), XYValuePlot(), and ~XYValuePlot().

const QString SciFigs::XYValuePlot::xmlXYValuePlotTag = "XYValuePlot" [static]
The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Properties Friends Defines

Modified 2013-10-22

Valid CSS! Valid XHTML 1.0!
