SciFigs::XYPlot Class Reference

A XYPlot is a layer to plot black dots (static) More...

#include <XYPlot.h>

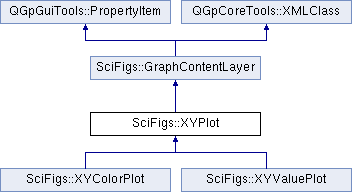

Inheritance diagram for SciFigs::XYPlot:
SciFigs::GraphContentLayer QGpGuiTools::PropertyItem QGpCoreTools::XMLClass SciFigs::XYColorPlot SciFigs::XYValuePlot

List of all members.

Public Slots

void swapXY ()

Public Member Functions

virtual void addProperties (PropertyProxy *pp)
virtual Rect boundingRect () const
int count () const
double dotDiameter () const
virtual bool hasProperties ()
virtual void properties (PropertyWidget *w) const
virtual void removeProperties (PropertyProxy *pp)
virtual void select (QVector< int > *indexList)
void setDotDiameter (double d)
virtual void setProperty (uint wid, int pid, QVariant val)
void setSymbol (Symbol::Type s)
void setSymbol (const QString &s)
void setXData (QVector< double > *x)
void setYData (QVector< double > *y)
Symbol::Type symbol () const
QString symbolString () const
virtual bool trackRectangle (int, double rx1, double ry1, double rx2, double ry2, Qt::KeyboardModifiers eventState)
virtual const QString & xml_tagName () const
 XYPlot (AxisWindow *parent=0)
 ~XYPlot ()

Static Public Attributes

static const QString xmlXYPlotTag = "XYPlot"

Protected Member Functions

void getPaintParam (int &count, double &pointSize, double &halfPointSize, double dotpercm) const
virtual void paintData (const LayerPainterRequest &lp, QPainter &p, double dotpercm) const
virtual bool xml_setBinaryData (XML_SETBINARYDATA_ARGS)
virtual void xml_writeBinaryData (XML_WRITEBINARYDATA_ARGS) const
virtual void xml_writeProperties (XML_WRITEPROPERTIES_ARGS) const

Protected Attributes

double _size
Symbol::Type _symbol
QVector< double > * _xData
QVector< double > * _yData

Static Protected Attributes

static uint _tab = PropertyProxy::uniqueId()

Properties

int count
double dotDiameter
QString symbol

Detailed Description

A XYPlot is a layer to plot black dots (static)

Basic plot of black dots defined by two pointer to QVector (_xData, _yData)

Constructor & Destructor Documentation

SciFigs::XYPlot::XYPlot ( AxisWindow *  parent = 0)

References _symbol, _xData, _yData, SciFigs::Symbol::Circle, setDotDiameter(), and TRACE.

                                  :
    GraphContentLayer(parent)
{
  TRACE;
  _xData=0;
  _yData=0;
  setDotDiameter(0.1); // 0.1 cm
  _symbol=Symbol::Circle;
}
SciFigs::XYPlot::~XYPlot ( )

References _xData, _yData, and TRACE.

{
  TRACE;
  delete _xData;
  delete _yData;
}

Member Function Documentation

void SciFigs::XYPlot::addProperties ( PropertyProxy *  pp) [virtual]

Setup property editor

Reimplemented from SciFigs::GraphContentLayer.

Reimplemented in SciFigs::XYValuePlot.

References _tab, QGpGuiTools::PropertyProxy::addReference(), QGpGuiTools::PropertyProxy::addTab(), QGpGuiTools::PropertyProxy::setCurrentTab(), QGpCoreTools::tr(), TRACE, and w.

{
  TRACE;
  if(pp->setCurrentTab(_tab)) {
    pp->addReference(this);
  } else {
    XYPlotProperties * w=new XYPlotProperties;
    pp->addTab(_tab, tr("Plot"), w, this);
  }
}
Rect SciFigs::XYPlot::boundingRect ( ) const [virtual]

Implements SciFigs::GraphContentLayer.

References _xData, _yData, QGpCoreTools::Rect::add(), and TRACE.

{
  TRACE;
  int minSize=_xData->size();
  if(minSize > _yData->size()) minSize=_yData->size();
  if(minSize >= 1) {
    double x=( *_xData) [ 0 ];
    double y=( *_yData) [ 0 ];
    Rect r(x, y, x, y);
    for(int i=1;i < minSize;i++ ) r.add(( *_xData) [ i ], ( *_yData) [ i ] );
    return r;
  } else return Rect();
}
int SciFigs::XYPlot::count ( ) const [inline]

Referenced by SciFigs::XYColorPlot::paintData(), SciFigs::XYValuePlot::paintData(), paintData(), SciFigs::XYColorPlot::xml_setBinaryData(), SciFigs::XYValuePlot::xml_setBinaryData(), and xml_writeBinaryData().

{if(_xData) return _xData->count(); else return 0;}
double SciFigs::XYPlot::dotDiameter ( ) const [inline]

Referenced by properties().

{return _size;}
void SciFigs::XYPlot::getPaintParam ( int &  count,
double &  pointSize,
double &  halfPointSize,
double  dotpercm
) const [inline, protected]

References _size, _xData, _yData, and TRACE.

Referenced by SciFigs::XYColorPlot::paintData(), SciFigs::XYValuePlot::paintData(), and paintData().

{
  TRACE;
  count=_xData->size();
  if(count>_yData->size()) {
    count=_yData->size();
  }
  pointSize=_size*dotpercm;
  halfPointSize=0.5*pointSize;
}
virtual bool SciFigs::XYPlot::hasProperties ( ) [inline, virtual]

Reimplemented from SciFigs::GraphContentLayer.

Reimplemented in SciFigs::XYValuePlot.

{return true;}
void SciFigs::XYPlot::paintData ( const LayerPainterRequest &  lp,
QPainter &  p,
double  dotpercm
) const [protected, virtual]

Implements SciFigs::GraphContentLayer.

Reimplemented in SciFigs::XYValuePlot, and SciFigs::XYColorPlot.

References _symbol, count(), getPaintParam(), SciFigs::LayerPainterRequest::options(), SciFigs::GraphContentLayer::paint(), SciFigs::GraphContentOptions::r2s(), TRACE, SciFigs::GraphContentOptions::xVisMax(), SciFigs::GraphContentOptions::xVisMin(), SciFigs::GraphContentOptions::yVisMax(), and SciFigs::GraphContentOptions::yVisMin().

{
  TRACE;
  const GraphContentOptions& gc=lp.options();
  p.setRenderHints(QPainter::Antialiasing, true);
  int count;
  double pointSize, halfPointSize;
  getPaintParam(count, pointSize, halfPointSize, dotpercm);
  for(int i=0; i<count; i++) {
    double x=(*_xData)[i];
    if(x>gc.xVisMin() && x<gc.xVisMax()) {
      double y=(*_yData)[i];
      if(y>gc.yVisMin() && y<gc.yVisMax()) {
        Symbol::paint(_symbol, p, gc.r2s(x, y), pointSize, halfPointSize);
      }
    }
  }
}
void SciFigs::XYPlot::properties ( PropertyWidget *  w) const [virtual]

Reimplemented from SciFigs::GraphContentLayer.

Reimplemented in SciFigs::XYValuePlot.

References _symbol, SciFigs::XYPlotProperties::DotDiameter, dotDiameter(), QGpGuiTools::PropertyWidget::setValue(), SciFigs::XYPlotProperties::Symbol, SciFigs::LegendTable::symbolItem(), and TRACE.

{
  TRACE;
  w->setValue(XYPlotProperties::DotDiameter, dotDiameter()*10.0);
  w->setValue(XYPlotProperties::Symbol, LegendTable::symbolItem(_symbol));
}
void SciFigs::XYPlot::removeProperties ( PropertyProxy *  pp) [virtual]

Clean property editor

Reimplemented from SciFigs::GraphContentLayer.

Reimplemented in SciFigs::XYValuePlot.

References _tab, QGpGuiTools::PropertyProxy::removeTab(), and TRACE.

{
  TRACE;
  pp->removeTab(_tab, this);
}
void SciFigs::XYPlot::select ( QVector< int > *  indexList) [virtual]

Can be redefined in sub classes. This function is triggered when user wants to select points

References TRACE.

Referenced by trackRectangle().

{
  TRACE;
  // Basic functionnality to test method
  /*fprintf(stdout, "%i selected\n", indexList->size());
  for(int i=0;i < indexList->size();i++ ) {
    int ind=( *indexList) [ i ];
    fprintf(stdout, "%g %g\n", ( *_xData) [ ind ], ( *_yData) [ ind ] );
  }*/
}
void SciFigs::XYPlot::setDotDiameter ( double  d) [inline]

Referenced by MonoStation::AbstractSummary::createBubbleGraph(), setProperty(), and XYPlot().

{_size=d;}
void SciFigs::XYPlot::setProperty ( uint  wid,
int  pid,
QVariant  val
) [virtual]

Reimplemented from SciFigs::GraphContentLayer.

Reimplemented in SciFigs::XYValuePlot.

References SciFigs::GraphContent::deepUpdate(), SciFigs::XYPlotProperties::DotDiameter, SciFigs::GraphContentLayer::graphContent(), setDotDiameter(), setSymbol(), SciFigs::XYPlotProperties::Symbol, SciFigs::LegendTable::symbolType(), and TRACE.

{
  TRACE;
  switch(pid) {
  case XYPlotProperties::DotDiameter:
    setDotDiameter(val.toDouble()*0.1);
    graphContent()->deepUpdate();
    break;
  case XYPlotProperties::Symbol:
    setSymbol(LegendTable::symbolType(val.toInt()));
    graphContent()->deepUpdate();
    break;
  default:
    break;
  }
}
void SciFigs::XYPlot::setSymbol ( Symbol::Type  s) [inline]

Referenced by setProperty().

{_symbol=s;}
void SciFigs::XYPlot::setSymbol ( const QString &  s) [inline]

References SciFigs::Symbol::symbolValue().

{_symbol=Symbol::symbolValue(s);}
void SciFigs::XYPlot::setXData ( QVector< double > *  x)

Set the pointer to X Data

References _xData.

Referenced by addDotPlot(), and MonoStation::AbstractSummary::setBubbleValues().

{
  LayerLocker ll(this);
  delete _xData;
  _xData=x;
}
void SciFigs::XYPlot::setYData ( QVector< double > *  y)

Set the pointer to Y Data

References _yData.

Referenced by addDotPlot(), and MonoStation::AbstractSummary::setBubbleValues().

{
  LayerLocker ll(this);
  delete _yData;
  _yData=y;
}
void SciFigs::XYPlot::swapXY ( ) [slot]

References _xData, _yData, SciFigs::GraphContent::deepUpdate(), SciFigs::GraphContentLayer::graphContent(), and TRACE.

{
  TRACE;
  QVector<double> * tmp=_xData;
  _xData=_yData;
  _yData=tmp;
  graphContent() ->deepUpdate();
}
Symbol::Type SciFigs::XYPlot::symbol ( ) const [inline]
{return _symbol;}
QString SciFigs::XYPlot::symbolString ( ) const [inline]

References SciFigs::Symbol::symbolName().

{return Symbol::symbolName(_symbol);}
bool SciFigs::XYPlot::trackRectangle ( int  ,
double  rx1,
double  ry1,
double  rx2,
double  ry2,
Qt::KeyboardModifiers  eventState
) [virtual]

Reimplemented from SciFigs::GraphContentLayer.

References _xData, _yData, QGpCoreTools::Rect::includes(), select(), and TRACE.

{
  TRACE;
  // Select the points inside the rectangle and call trackRectangle(QVector * indexList)
  // This select function can redefined in sub-classes
  Rect r(rx1, ry1, rx2, ry2);
  QVector<int> * indexList=new QVector<int>;
  int minSize=_xData->size();
  if(minSize>_yData->size()) {
    minSize=_yData->size();
  }
  for(int i=0; i<minSize; i++) {
    Point p=Point((*_xData)[i], (*_yData)[i]);
    if(r.includes(p)) indexList->push_back(i);
  }
  if(indexList->size()>0) {
    select(indexList);
  }
  delete indexList;
  return true;
}
bool SciFigs::XYPlot::xml_setBinaryData ( XML_SETBINARYDATA_ARGS  ) [protected, virtual]

This function must be re-implemented in all classes dealing with binary data that cannot be saved in an ASCII xml file (e.g. due to the amount of data).

See also xml_writeBinaryData().

The difference between xml_setBinaryData() and xml_setBinaryData200410() is detected by the type of tag at the beginning of each block if it can be read with QString ==> 200510, else try with a normal C string, if it match the current tag then execute xml_setBinaryData200411().

See also xml_setBinaryData200411() to maintain compatibility with previous versions of xml storages.

For the arguments of this function use Macro XML_SETBINARYDATA_ARGS.

Reimplemented from QGpCoreTools::XMLClass.

Reimplemented in SciFigs::XYValuePlot, and SciFigs::XYColorPlot.

References _xData, _yData, and TRACE.

Referenced by SciFigs::XYColorPlot::xml_setBinaryData(), and SciFigs::XYValuePlot::xml_setBinaryData().

{
  TRACE;
  Q_UNUSED(context);
  int n;
  s >> n;
  if(n>0) {
    QVector<double>::iterator it;
    QVector<double>::iterator itEnd;

    _xData=new QVector<double>;
    _xData->resize(n);
    itEnd=_xData->end();
    for(it=_xData->begin();it!=itEnd;++it) s >> *it;

    _yData=new QVector<double>;
    _yData->resize(n);
    itEnd=_yData->end();
    for(it=_yData->begin();it!=itEnd;++it) s >> *it;
  }
  return true;
}
virtual const QString& SciFigs::XYPlot::xml_tagName ( ) const [inline, virtual]

Reimplemented from SciFigs::GraphContentLayer.

Reimplemented in SciFigs::XYValuePlot, and SciFigs::XYColorPlot.

{return xmlXYPlotTag;}
void SciFigs::XYPlot::xml_writeBinaryData ( XML_WRITEBINARYDATA_ARGS  ) const [protected, virtual]

This function must be re-implemented in all classes dealing with binary data that cannot be saved in an ASCII xml file (e.g. due to the amount of data).

The way binary data is stored drastically changed in November 2006 with the introduction of tar.gz structures for xml files. Each class willing to store binary data can automatically generate a new file (with an automatic file name) in the .tar.gz structure by sending bytes to s.

See also xml_setBinaryData().

For the arguments of this function use Macro XML_WRITEBINARYDATA_ARGS.

Reimplemented from QGpCoreTools::XMLClass.

Reimplemented in SciFigs::XYValuePlot, and SciFigs::XYColorPlot.

References _xData, _yData, count(), and TRACE.

{
  TRACE;
  Q_UNUSED(context);
  s << count();
  QVector<double>::iterator it;
  QVector<double>::iterator itEnd;

  itEnd=_xData->end();
  for(it=_xData->begin();it!=itEnd;++it) s << *it;

  itEnd=_yData->end();
  for(it=_yData->begin();it!=itEnd;++it) s << *it;
}
void SciFigs::XYPlot::xml_writeProperties ( XML_WRITEPROPERTIES_ARGS  ) const [protected, virtual]

Reimplemented from SciFigs::GraphContentLayer.

References SciFigs::XMLSciFigs::data(), TRACE, and QGpCoreTools::XMLClass::writeBinaryData().

{
  TRACE;
  GraphContentLayer::xml_writeProperties(s, context);
  XMLSciFigs * scifigsContext=static_cast<XMLSciFigs *>(context);
  if(scifigsContext->data()) writeBinaryData(s, context);
}

Member Data Documentation

double SciFigs::XYPlot::_size [protected]

Referenced by getPaintParam().

Symbol::Type SciFigs::XYPlot::_symbol [protected]

Referenced by SciFigs::XYColorPlot::paintData(), SciFigs::XYValuePlot::paintData(), paintData(), properties(), and XYPlot().

uint SciFigs::XYPlot::_tab = PropertyProxy::uniqueId() [static, protected]

Referenced by addProperties(), and removeProperties().

QVector<double>* SciFigs::XYPlot::_xData [protected]

Referenced by boundingRect(), getPaintParam(), setXData(), swapXY(), trackRectangle(), xml_setBinaryData(), xml_writeBinaryData(), XYPlot(), and ~XYPlot().

QVector<double>* SciFigs::XYPlot::_yData [protected]

Referenced by boundingRect(), getPaintParam(), setYData(), swapXY(), trackRectangle(), xml_setBinaryData(), xml_writeBinaryData(), XYPlot(), and ~XYPlot().

const QString SciFigs::XYPlot::xmlXYPlotTag = "XYPlot" [static]

Property Documentation

int SciFigs::XYPlot::count [read]
double SciFigs::XYPlot::dotDiameter [read, write]
QString SciFigs::XYPlot::symbol [read, write]
The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Properties Friends Defines

Modified 2013-10-22

Valid CSS! Valid XHTML 1.0!
