SciFigs::XUniqueYColorLines Class Reference

A layer optimized for huge number of curves having all the same X sampling. More...

#include <XUniqueYColorLines.h>

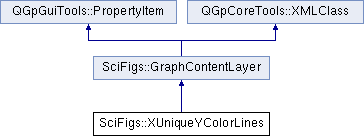

Inheritance diagram for SciFigs::XUniqueYColorLines:

List of all members.

Public Slots
void	setColor (int curveIndex, int red, int green, int blue)
Signals
void	dataSelected (int id, const QVector< int > *indexList)
Public Member Functions
virtual void	addProperties (PropertyProxy *pp)
Rect	boundingRect () const
void	clear ()
const QColor *	colors () const
int	curveCount ()
void	divYbyX (double constant)
virtual bool	hasProperties ()
double	lineWeight () const
double	lineWeightMM () const
void	mulYbyX (double constant)
virtual void	properties (PropertyWidget *w) const
virtual void	removeProperties (PropertyProxy *pp)
void	setColor (int index, const QColor &col)
void	setColors (QColor *col)
void	setLineWeight (double lw)
void	setPointCount (int nCurve, int nX)
virtual void	setProperty (uint wid, int pid, QVariant val)
virtual bool	trackRectangle (int, double rx1, double ry1, double rx2, double ry2, Qt::KeyboardModifiers)
const double *	x () const
double *	x ()
virtual const QString &	xml_tagName () const
	XUniqueYColorLines (AxisWindow *parent=0)
const double *	y () const
double *	y ()
	~XUniqueYColorLines ()
Static Public Attributes
static const QString	xmlXUniqueYColorLinesTag = "XUniqueYColorLines"
Protected Member Functions
virtual void	paintData (const LayerPainterRequest &lp, QPainter &p, double dotpercm) const
virtual bool	xml_setBinaryData (XML_SETBINARYDATA_ARGS)
virtual void	xml_writeBinaryData (XML_WRITEBINARYDATA_ARGS) const
virtual void	xml_writeProperties (XML_WRITEPROPERTIES_ARGS) const
Protected Attributes
QColor *	_colors
int	_curveCount
double	_lineWeight
XYColorLinesProperties *	_propertiesTab
double *	_x
int	_xCount
double *	_y
Properties
double	lineWeight

---

Detailed Description

A layer optimized for huge number of curves having all the same X sampling.

---

Constructor & Destructor Documentation

SciFigs::XUniqueYColorLines::XUniqueYColorLines

(

AxisWindow *

parent = 0

)

Description of constructor still missing

References _colors, _curveCount, _lineWeight, _propertiesTab, _x, _xCount, _y, and TRACE.

                                                          :
    GraphContentLayer(parent)
{
  TRACE;
  _curveCount=0;
  _xCount=0;
  _x=0;
  _y=0;
  _colors=0;
  _lineWeight=0.1;
  _propertiesTab=0;
}

SciFigs::XUniqueYColorLines::~XUniqueYColorLines

(

)

Description of destructor still missing

References clear(), and TRACE.

{
  TRACE;
  clear();
}

---

Member Function Documentation

void SciFigs::XUniqueYColorLines::addProperties

(

PropertyProxy *

pp

)

[virtual]

Setup property editor

Reimplemented from SciFigs::GraphContentLayer.

References SciFigs::XYColorLines::_tab, QGpGuiTools::PropertyProxy::addReference(), QGpGuiTools::PropertyProxy::addTab(), QGpGuiTools::PropertyProxy::setCurrentTab(), QGpCoreTools::tr(), TRACE, and w.

{
  TRACE;
  if(pp->setCurrentTab(XYColorLines::_tab)) {
    pp->addReference(this);
  } else {
    XYColorLinesProperties * w=new XYColorLinesProperties;
    pp->addTab(XYColorLines::_tab, tr("Color Lines"), w, this);
  }
}

Rect SciFigs::XUniqueYColorLines::boundingRect

(

)

const [virtual]

Implements SciFigs::GraphContentLayer.

References _curveCount, _x, _xCount, _y, QGpCoreTools::Rect::add(), TRACE, and y().

{
  TRACE;
  if(_curveCount==0 || !_xCount) return Rect();
  Rect r(_x[0], _y[0], _x[0], _y[0] );
  double * y=_y;
  for(int i=0;i < _curveCount;i++ ) {
    for(int j=0;j < _xCount;j++ ) r.add(_x[j], y[j] );
    y+=_xCount;
  }
  return r;
}

void SciFigs::XUniqueYColorLines::clear

(

)

References _colors, _curveCount, _x, _xCount, _y, and TRACE.

Referenced by MonoStation::StationResults::clear(), ArrayGui::ArrayResponse::setArray(), setPointCount(), MonoStation::StationResults::setWindows(), PtMotionResults::updateSignals(), and ~XUniqueYColorLines().

{
  TRACE;
  LayerLocker ll(this);
  delete [] _x;
  delete [] _y;
  delete [] _colors;
  _x=0;
  _y=0;
  _colors=0;
  _curveCount=0;
  _xCount=0;
}

const QColor* SciFigs::XUniqueYColorLines::colors

(

)

const [inline]

Referenced by MonoStation::StationResults::addWindows().

{return _colors;}

int SciFigs::XUniqueYColorLines::curveCount

(

)

[inline]

{return _curveCount;}

void SciFigs::XUniqueYColorLines::dataSelected	(	int	id,
		const QVector< int > *	indexList
	)		[signal]

Referenced by trackRectangle().

void SciFigs::XUniqueYColorLines::divYbyX

(

double

constant

)

References _curveCount, _x, _xCount, _y, TRACE, and y().

Referenced by MonoStation::StationResults::integrate().

{
  TRACE;
  LayerLocker ll(this);
  double * y=_y;
  for(int i=0;i < _curveCount;i++ ) {
    for(int j=0;j < _xCount;j++ ) {
      y[j] /= constant * _x[j];
    }
    y+=_xCount;
  }
}

virtual bool SciFigs::XUniqueYColorLines::hasProperties

(

)

[inline, virtual]

Reimplemented from SciFigs::GraphContentLayer.

{return true;}

double SciFigs::XUniqueYColorLines::lineWeight

(

)

const [inline]

Referenced by paintData().

{return _lineWeight;}

double SciFigs::XUniqueYColorLines::lineWeightMM

(

)

const [inline]

Referenced by properties().

{return _lineWeight*10.0;}

void SciFigs::XUniqueYColorLines::mulYbyX

(

double

constant

)

References _curveCount, _x, _xCount, _y, TRACE, and y().

Referenced by MonoStation::StationResults::derivate().

{
  TRACE;
  LayerLocker ll(this);
  double * y=_y;
  for(int i=0;i < _curveCount;i++ ) {
    for(int j=0;j < _xCount;j++ ) {
      y[j] *= constant * _x[j];
    }
    y+=_xCount;
  }
}

void SciFigs::XUniqueYColorLines::paintData	(	const LayerPainterRequest &	lp,
		QPainter &	p,
		double	dotpercm
	)		const [protected, virtual]

Implements SciFigs::GraphContentLayer.

References _colors, _curveCount, _lineWeight, _x, _xCount, _y, SciFigs::GraphContentOptions::checkOrigin(), lineWeight(), SciFigs::LayerPainterRequest::options(), QGpCoreTools::Point2D::setX(), QGpCoreTools::Point2D::setY(), SciFigs::LayerPainterRequest::size(), SciFigs::LayerPainterRequest::terminated(), TRACE, SciFigs::GraphContentOptions::xr2s(), y(), and SciFigs::GraphContentOptions::yr2s().

{
  TRACE;
  if( !_curveCount || !_xCount) return ;

  const GraphContentOptions& gc=lp.options();
  int h=lp.size().height();
  Point2D * realPoints=new Point2D[_xCount];
  int * screenX=new int[_xCount];
  for(int i=0;i < _xCount;i++ ) {
    realPoints[i].setX(_x[i]);
    screenX[i]=gc.xr2s(_x[i]);
  }
  double * y=_y;
  QPoint pscreen1, pscreen2;
  int lineWeight=(int) floor(_lineWeight * dotpercm + 0.5);
  if(lineWeight<1) lineWeight=1;
  QPen currentPen(Qt::black, lineWeight, Qt::SolidLine, Qt::SquareCap, Qt::RoundJoin);
  for(int i=0;i < _curveCount;i++ ) {
    if(lp.terminated()) {
      delete [] realPoints;
      delete [] screenX;
      return;
    }
    QPolygon ap(_xCount);
    if(_colors) currentPen.setColor(_colors[ i ] );
    p.setPen(currentPen);
    for(int j=0;j < _xCount;j++ ) {
      realPoints[j].setY(y[j]);
    }
    y+=_xCount;
    Point2D * p1=realPoints, *p2;
    pscreen2.setX(screenX[0]);
    int subCurveCount=0;
    for(int j=1;j < _xCount;j++ ) {
      p2=p1 + 1;
      pscreen1.setX(screenX[j-1] );
      pscreen2.setX(screenX[j] );
      if(gc.yr2s( *p1, *p2, pscreen1, pscreen2) ) {
        gc.checkOrigin(pscreen1, pscreen2, h);
        if(subCurveCount==0) {
          ap.setPoint(0, pscreen1);
          subCurveCount=1;
        } else {
          if(ap.point(subCurveCount - 1)!=pscreen1) {
            p.drawPolyline (ap.data(), subCurveCount);
            ap.setPoint(0, pscreen1);
            subCurveCount=1;
          }
        }
        ap.setPoint(subCurveCount, pscreen2);
        subCurveCount++;
      } else if(subCurveCount > 1) {
        p.drawPolyline (ap.data(), subCurveCount);
        subCurveCount=0;
      }
      p1=p2;
    }
    if(subCurveCount > 1) p.drawPolyline (ap.data(), subCurveCount);
  }
  delete [] realPoints;
  delete [] screenX;
}

void SciFigs::XUniqueYColorLines::properties

(

PropertyWidget *

w

)

const [virtual]

Reimplemented from SciFigs::GraphContentLayer.

References SciFigs::XYColorLinesProperties::LineWeight, lineWeightMM(), QGpGuiTools::PropertyWidget::setValue(), and TRACE.

{
  TRACE;
  w->setValue(XYColorLinesProperties::LineWeight, lineWeightMM());
}

void SciFigs::XUniqueYColorLines::removeProperties

(

PropertyProxy *

pp

)

[virtual]

Clean property editor

Reimplemented from SciFigs::GraphContentLayer.

References SciFigs::XYColorLines::_tab, QGpGuiTools::PropertyProxy::removeTab(), and TRACE.

{
  TRACE;
  pp->removeTab(XYColorLines::_tab, this);
}

void SciFigs::XUniqueYColorLines::setColor	(	int	index,
		const QColor &	col
	)

References _colors, and TRACE.

Referenced by MonoStation::StationResults::setWindowColor().

{
  TRACE;
  LayerLocker ll(this);
  _colors[index]=col;
}

void SciFigs::XUniqueYColorLines::setColor	(	int	curveIndex,
		int	red,
		int	green,
		int	blue
	)		[slot]

References _colors, _curveCount, and TRACE.

{
  TRACE;
  LayerLocker ll(this);
  if(curveIndex < 0 || curveIndex >= _curveCount || !_colors) return ;
  _colors[ curveIndex ]=QColor(red, green, blue);
}

void SciFigs::XUniqueYColorLines::setColors

(

QColor *

col

)

References _colors, and TRACE.

Referenced by MonoStation::StationResults::addWindows(), and MonoStation::StationResults::setWindows().

{
  TRACE;
  LayerLocker ll(this);
  delete _colors;
  _colors=col;
}

void SciFigs::XUniqueYColorLines::setLineWeight

(

double

lw

)

[inline]

Referenced by ArrayGui::ArrayResponse::createObjects(), setProperty(), and MonoStation::StationResults::setWindows().

{_lineWeight=lw;}

void SciFigs::XUniqueYColorLines::setPointCount	(	int	nCurves,
		int	nX
	)

This is the unique function you have to call to populate this layer with lines.

References _curveCount, _x, _xCount, _y, clear(), and TRACE.

Referenced by MonoStation::StationResults::addWindows(), MonoStation::StationResults::setWindows(), and PtMotionResults::updateSignals().

{
  TRACE;
  LayerLocker ll(this);
  if(_curveCount>0 && nX==_xCount) {
    if(nCurves==0) {
      clear();
      return;
    }
    int minNCurves=nCurves;
    if(_curveCount<minNCurves) minNCurves=_curveCount;
    double * new_y=new double [ nCurves*nX ];
    memcpy(new_y, _y, minNCurves * nX * sizeof(double));
    delete [] _y;
    _y=new_y;
    _curveCount=nCurves;
  } else {
    clear();
    _curveCount=nCurves;
    _xCount=nX;
    if(_xCount > 0) _x=new double[ _xCount ];
    if(_curveCount > 0) _y=new double [ _xCount * _curveCount ];
  }
}

void SciFigs::XUniqueYColorLines::setProperty	(	uint	wid,
		int	pid,
		QVariant	val
	)		[virtual]

Reimplemented from SciFigs::GraphContentLayer.

References SciFigs::GraphContent::deepUpdate(), SciFigs::GraphContentLayer::graphContent(), SciFigs::XYColorLinesProperties::LineWeight, setLineWeight(), and TRACE.

{
  TRACE;
  switch(pid) {
  case XYColorLinesProperties::LineWeight:
    setLineWeight(val.toDouble() * 0.1);
    graphContent()->deepUpdate();
    break;
  default:
    break;
  }
}

bool SciFigs::XUniqueYColorLines::trackRectangle	(	int	id,
		double	rx1,
		double	ry1,
		double	rx2,
		double	ry2,
		Qt::KeyboardModifiers
	)		[virtual]

When the user select curve using the mouse pointer

Reimplemented from SciFigs::GraphContentLayer.

References _curveCount, _x, _xCount, _y, dataSelected(), QGpCoreTools::Rect::includes(), TRACE, and y().

{
  TRACE;
  // Select the points inside the rectangle and call dataSelected(QVector * indexList)
  // This trackRectangle function can be redefined in sub-classes
  Rect r(rx1, ry1, rx2, ry2);
  QVector<int> * indexList=new QVector<int>;
  double * y=_y;
  for(int i=0;i < _curveCount;i++ ) {
    for(int j=1;j < _xCount;j++ ) {
      if(r.includes(_x[j-1], y[j-1], _x[j], y[j] )) {
        indexList->push_back(i);
        break;
      }
    }
    y+=_xCount;
  }
  if(!indexList->isEmpty()) emit dataSelected(id, indexList);
  delete indexList;
  return true;
}

const double* SciFigs::XUniqueYColorLines::x

(

)

const [inline]

Referenced by MonoStation::StationResults::addPeak(), MonoStation::StationResults::printWindows(), MonoStation::StationResults::setAverageLayer(), MonoStation::StationResults::setPeak(), MonoStation::StationResults::setPeakLayer(), MonoStation::StationResults::setWindow(), MonoStation::StationResults::setWindows(), and PtMotionResults::updateSignals().

{return _x;}

double* SciFigs::XUniqueYColorLines::x

(

)

[inline]

{return _x;}

bool SciFigs::XUniqueYColorLines::xml_setBinaryData

(

XML_SETBINARYDATA_ARGS

)

[protected, virtual]

This function must be re-implemented in all classes dealing with binary data that cannot be saved in an ASCII xml file (e.g. due to the amount of data).

See also xml_writeBinaryData().

The difference between xml_setBinaryData() and xml_setBinaryData200410() is detected by the type of tag at the beginning of each block if it can be read with QString ==> 200510, else try with a normal C string, if it match the current tag then execute xml_setBinaryData200411().

See also xml_setBinaryData200411() to maintain compatibility with previous versions of xml storages.

For the arguments of this function use Macro XML_SETBINARYDATA_ARGS.

Reimplemented from QGpCoreTools::XMLClass.

References _colors, _curveCount, _x, _xCount, _y, SciFigs::XYColorLines::restoreBinaryColorVector(), and TRACE.

{
  TRACE;
  Q_UNUSED(context);
  s >> _curveCount;
  s >> _xCount;
  if(_curveCount > 0) {
    XYColorLines::restoreBinaryColorVector(s, _colors, _curveCount, context);
    _x=new double [ _xCount ];
    s.readRawData(( char * ) _x, sizeof(double) * _xCount);
    _y=new double [ _xCount * _curveCount ];
    s.readRawData(( char * ) _y, sizeof(double) * _xCount * _curveCount);
  }
  return true;
}

virtual const QString& SciFigs::XUniqueYColorLines::xml_tagName

(

)

const [inline, virtual]

Reimplemented from SciFigs::GraphContentLayer.

{return xmlXUniqueYColorLinesTag;}

void SciFigs::XUniqueYColorLines::xml_writeBinaryData

(

XML_WRITEBINARYDATA_ARGS

)

const [protected, virtual]

This function must be re-implemented in all classes dealing with binary data that cannot be saved in an ASCII xml file (e.g. due to the amount of data).

The way binary data is stored drastically changed in November 2006 with the introduction of tar.gz structures for xml files. Each class willing to store binary data can automatically generate a new file (with an automatic file name) in the .tar.gz structure by sending bytes to s.

See also xml_setBinaryData().

For the arguments of this function use Macro XML_WRITEBINARYDATA_ARGS.

Reimplemented from QGpCoreTools::XMLClass.

References _colors, _curveCount, _x, _xCount, _y, SciFigs::XYColorLines::saveBinaryColorVector(), and TRACE.

{
  TRACE;
  Q_UNUSED(context);
  s << _curveCount;
  s << _xCount;
  XYColorLines::saveBinaryColorVector(s, _colors, _curveCount);
  s.writeRawData(( const char * ) _x, sizeof(double) * _xCount);
  s.writeRawData(( const char * ) _y, sizeof(double) * _xCount * _curveCount);
}

void SciFigs::XUniqueYColorLines::xml_writeProperties

(

XML_WRITEPROPERTIES_ARGS

)

const [protected, virtual]

Reimplemented from SciFigs::GraphContentLayer.

References SciFigs::XMLSciFigs::data(), TRACE, and QGpCoreTools::XMLClass::writeBinaryData().

{
  TRACE;
  GraphContentLayer::xml_writeProperties(s, context);
  XMLSciFigs * scifigsContext=static_cast<XMLSciFigs *>(context);
  if(scifigsContext->data()) writeBinaryData(s, context);
}

const double* SciFigs::XUniqueYColorLines::y

(

)

const [inline]

Referenced by boundingRect(), divYbyX(), mulYbyX(), paintData(), MonoStation::StationResults::printWindows(), MonoStation::StationResults::setAverageLayer(), MonoStation::StationResults::setWindow(), trackRectangle(), and PtMotionResults::updateSignals().

{return _y;}

double* SciFigs::XUniqueYColorLines::y

(

)

[inline]

{return _y;}

---

Member Data Documentation

QColor* SciFigs::XUniqueYColorLines::_colors [protected]

Referenced by clear(), paintData(), setColor(), setColors(), xml_setBinaryData(), xml_writeBinaryData(), and XUniqueYColorLines().

int SciFigs::XUniqueYColorLines::_curveCount [protected]

Referenced by boundingRect(), clear(), divYbyX(), mulYbyX(), paintData(), setColor(), setPointCount(), trackRectangle(), xml_setBinaryData(), xml_writeBinaryData(), and XUniqueYColorLines().

double SciFigs::XUniqueYColorLines::_lineWeight [protected]

Referenced by paintData(), and XUniqueYColorLines().

XYColorLinesProperties* SciFigs::XUniqueYColorLines::_propertiesTab [protected]

Referenced by XUniqueYColorLines().

double* SciFigs::XUniqueYColorLines::_x [protected]

Referenced by boundingRect(), clear(), divYbyX(), mulYbyX(), paintData(), setPointCount(), trackRectangle(), xml_setBinaryData(), xml_writeBinaryData(), and XUniqueYColorLines().

int SciFigs::XUniqueYColorLines::_xCount [protected]

Referenced by boundingRect(), clear(), divYbyX(), mulYbyX(), paintData(), setPointCount(), trackRectangle(), xml_setBinaryData(), xml_writeBinaryData(), and XUniqueYColorLines().

double* SciFigs::XUniqueYColorLines::_y [protected]

Referenced by boundingRect(), clear(), divYbyX(), mulYbyX(), paintData(), setPointCount(), trackRectangle(), xml_setBinaryData(), xml_writeBinaryData(), and XUniqueYColorLines().

const QString SciFigs::XUniqueYColorLines::xmlXUniqueYColorLinesTag = "XUniqueYColorLines" [static]

---

Property Documentation

double SciFigs::XUniqueYColorLines::lineWeight [read, write]

---

The documentation for this class was generated from the following files:

• SciFigs/XUniqueYColorLines.h
• SciFigs/XUniqueYColorLines.cpp
