Brief description of class still missing. More...

#include <AsciiSignalFormat.h>

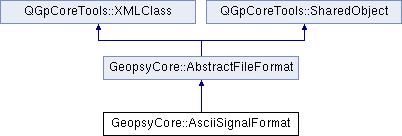

Inheritance diagram for GeopsyCore::AsciiSignalFormat:

Public Types
enum	HeaderType { NoHeader, FixedHeader, HeaderPattern, EndHeaderPattern }
Public Member Functions
	AsciiSignalFormat ()
	AsciiSignalFormat (const AsciiSignalFormat &o)
void	assign (Signal *sig)
virtual int	complexity () const
const AsciiSignalFormatComponent &	component (int index) const
AsciiSignalFormatComponent &	component (int index)
int	componentCount () const
virtual SignalFileFormat::Format	format () const
QString	header (QTextStream &s, int &lineNumber, QAtomicInt *terminate=0)
int	headerLineCount () const
const QString &	headerPattern () const
HeaderType	headerType () const
QString	headerTypeString () const
void	insertComponent (int index, const AsciiSignalFormatComponent &c)
void	insertRule (int index, const AsciiSignalFormatRule &r)
virtual bool	isValid (const QString &fileName) const
void	operator= (const AsciiSignalFormat &o)
bool	parseHeader (const QString &headerText, QAtomicInt *terminate=0)
void	removeComponent (int index)
void	removeRule (int index)
const AsciiSignalFormatRule &	rule (int index) const
AsciiSignalFormatRule &	rule (int index)
int	ruleCount () const
void	setHeaderLineCount (int h)
void	setHeaderPattern (const QString &h)
void	setHeaderType (HeaderType t)
void	setHeaderType (const QString &t)
void	setTimeFormat (const QString &t)
double	t0 () const
const QString &	timeFormat () const
QDateTime	timeReference () const
virtual const QString &	xml_tagName () const
Static Public Attributes
static const QString	xmlAsciiSignalFormatTag = "AsciiSignalFormat"
Protected Member Functions
virtual XMLMember	xml_member (XML_MEMBER_ARGS)
virtual bool	xml_setProperty (XML_SETPROPERTY_ARGS)
virtual void	xml_writeChildren (XML_WRITECHILDREN_ARGS) const
virtual void	xml_writeProperties (XML_WRITEPROPERTIES_ARGS) const

Detailed Description

Brief description of class still missing.

Description of plain ascii parsing: how to determine header size, how to get information from header. Patterns are all regular expressions. Patterns related to data fields must enclose interesting information between '(' and ')' and specify the index.

Member Enumeration Documentation

enum GeopsyCore::AsciiSignalFormat::HeaderType

Enumerator:

NoHeader
FixedHeader
HeaderPattern
EndHeaderPattern

{NoHeader, FixedHeader, HeaderPattern, EndHeaderPattern};

Constructor & Destructor Documentation

GeopsyCore::AsciiSignalFormat::AsciiSignalFormat ( )

Constructs a basic ascii format without header

References NoHeader.

{
  _headerType=NoHeader;
  _headerLineCount=0;
  _headerPattern="#";
  _timeFormat="yyyy-MM-dd hh:mm:ss";
}

GeopsyCore::AsciiSignalFormat::AsciiSignalFormat ( const AsciiSignalFormat & o )

Description of constructor still missing

References TRACE.

    : AbstractFileFormat(o), _rules(o._rules)
{
  TRACE;
  _headerType=o._headerType;
  _headerLineCount=o._headerLineCount;
  _headerPattern=o._headerPattern;
  _timeFormat=o._timeFormat;
  _components=o._components;
  _rules=o._rules;
}

Member Function Documentation

void GeopsyCore::AsciiSignalFormat::assign ( Signal * sig )

Sets header information to signal sig.

References GeopsyCore::AsciiSignalFormatRule::channel(), GeopsyCore::MetaDataFactory::Component, GeopsyCore::AsciiSignalFormatRule::data(), QGpCoreTools::endl(), QGpCoreTools::exp(), GeopsyCore::AsciiSignalFormatRule::factor(), GeopsyCore::MetaDataIndex::id(), GeopsyCore::MetaDataFactory::instance(), GeopsyCore::AbstractFileFormat::name(), GeopsyCore::Signal::numberInFile(), GeopsyCore::Signal::setComponent(), GeopsyCore::Signal::setHeader(), GeopsyCore::MetaDataFactory::T0, GeopsyCore::MetaDataFactory::TimeReference, QGpCoreTools::tr(), TRACE, and GeopsyCore::AsciiSignalFormatRule::value().

{
  TRACE;
  for(QVector<AsciiSignalFormatRule>::const_iterator it=_rules.begin();it!=_rules.end();it++) {
    const AsciiSignalFormatRule& r=*it;
    if((r.channel()==-1 || sig->numberInFile()==r.channel()) && r.value().isValid()) {
      switch(r.data().id()) {
      case MetaDataFactory::Component: {
          for(QVector<AsciiSignalFormatComponent>::const_iterator it=_components.begin();it!=_components.end();it++) {
            QRegExp exp(it->pattern());
            if(exp.exactMatch(r.value().toString())) {
              sig->setComponent(it->component());
            }
          }
        }
        break;
      case MetaDataFactory::T0: // Does nothing here get them directly with t0() and timeReference()
      case MetaDataFactory::TimeReference:
        break;
      default: {
          bool ret;
          if(r.value().convert(QVariant::Double)) {
            ret=sig->setHeader(r.data(), r.value().toDouble()*r.factor());
          } else {
            ret=sig->setHeader(r.data(), r.value());
          }
          if(!ret) {
            App::stream() << tr("Cannot set '%1' from ascii file header")
                .arg(MetaDataFactory::instance()->name(r.data())) << endl;
          }
        }
        break;
      }
    }
  }
}

int GeopsyCore::AsciiSignalFormat::complexity ( ) const [virtual]

Count the number of mandatory rules. This is used to determine format from header content. The formats with more rules (more complex) are first checked to avoid less restrictive formats to be selected instead.

Reimplemented from GeopsyCore::AbstractFileFormat.

References TRACE.

{
  TRACE;
  int n=0;
  for(QVector<AsciiSignalFormatRule>::const_iterator it=_rules.begin();it!=_rules.end();it++) {
    if(it->mandatory()) {
      n++;
    }
  }
  return n;
}

const AsciiSignalFormatComponent& GeopsyCore::AsciiSignalFormat::component ( int index ) const [inline]

Referenced by GeopsyGui::AsciiSignalComponentItem::data(), and GeopsyGui::AsciiSignalComponentItem::setData().

{return _components.at(index);}

AsciiSignalFormatComponent& GeopsyCore::AsciiSignalFormat::component ( int index ) [inline]

{return _components[index];}

int GeopsyCore::AsciiSignalFormat::componentCount ( ) const [inline]

Referenced by GeopsyGui::AsciiSignalComponentItem::rowCount().

{return _components.count();}

virtual SignalFileFormat::Format GeopsyCore::AsciiSignalFormat::format ( ) const [inline, virtual]

Reimplemented from GeopsyCore::AbstractFileFormat.

References GeopsyCore::SignalFileFormat::Ascii.

{return SignalFileFormat::Ascii;}

QString GeopsyCore::AsciiSignalFormat::header	(	QTextStream &	s,
		int &	lineNumber,
		QAtomicInt *	terminate = `0`
	)

Returns the full header and stream (s) pos is set just after the end of header. Optionaly terminate is a flag that can be turned to true to stop the parser.

References EndHeaderPattern, QGpCoreTools::endl(), FixedHeader, HeaderPattern, NoHeader, QGpCoreTools::tr(), and TRACE.

Referenced by isValid().

{
  TRACE;
  QString headerText;
  // Identify the whole header before extracting information
  switch(_headerType) {
  case NoHeader:
    return QString::null;
  case FixedHeader:
    while(!s.atEnd() && lineNumber<_headerLineCount) {
      lineNumber++;
      headerText+=s.readLine()+"\n";
      if(terminate && terminate->testAndSetOrdered(true, true)) {
        return QString::null;
      }
    }
    if(lineNumber<_headerLineCount) {
      App::stream() << tr("File contains %1 lines while header must be %2 lines long").arg(lineNumber).arg(_headerLineCount) << endl;
      return QString::null;
    }
    break;
  case HeaderPattern: {
      QRegExp rexp(_headerPattern);
      qint64 offset=s.pos();
      QString line=s.readLine();
      while(!s.atEnd() && rexp.indexIn(line)>-1) {
        headerText+=line+"\n";
        lineNumber++;
        offset=s.pos();
        line=s.readLine();
        if(terminate && terminate->testAndSetOrdered(true, true)) {
          return QString::null;
        }
      }
      s.seek(offset); // back to last line which matched regexp
    }
    break;
  case EndHeaderPattern: { // Line just after match contains data
      QRegExp rexp(_headerPattern);
      QString line=s.readLine();
      lineNumber++;
      while(!s.atEnd() && rexp.indexIn(line)==-1) {
        headerText+=line+"\n";
        line=s.readLine();
        lineNumber++;
        if(terminate && terminate->testAndSetOrdered(true, true)) {
          return QString::null;
        }
      }
      // Check if next lines match EndHeaderPattern
      qint64 offset=s.pos();
      line=s.readLine();
      while(!s.atEnd() && rexp.indexIn(line)>-1) {
        lineNumber++;
        offset=s.pos();
        line=s.readLine();
        if(terminate && terminate->testAndSetOrdered(true, true)) {
          return QString::null;
        }
      }
      s.seek(offset); // back to last line which matched regexp
    }
    break;
  }
  return headerText;
}

int GeopsyCore::AsciiSignalFormat::headerLineCount ( ) const [inline]

Referenced by GeopsyGui::AsciiSignalFormatEditor::setFormat().

{return _headerLineCount;}

const QString& GeopsyCore::AsciiSignalFormat::headerPattern ( ) const [inline]

Referenced by GeopsyGui::AsciiSignalFormatEditor::setFormat().

{return _headerPattern;}

HeaderType GeopsyCore::AsciiSignalFormat::headerType ( ) const [inline]

Referenced by GeopsyGui::AsciiSignalFormatEditor::setFormat().

{return _headerType;}

QString GeopsyCore::AsciiSignalFormat::headerTypeString ( ) const

References EndHeaderPattern, FixedHeader, HeaderPattern, NoHeader, and TRACE.

Referenced by xml_writeProperties().

{
  TRACE;
  switch(_headerType) {
  case NoHeader:
    break;
  case FixedHeader:
    return "FixedHeader";
  case HeaderPattern:
    return "HeaderPattern";
  case EndHeaderPattern:
    return "EndHeaderPattern";
  }
  return "NoHeader";
}

void GeopsyCore::AsciiSignalFormat::insertComponent	(	int	index,
		const AsciiSignalFormatComponent &	c
	)		`[inline]`

Referenced by GeopsyGui::AsciiSignalComponentItem::insertRows().

{_components.insert(index, c);}

void GeopsyCore::AsciiSignalFormat::insertRule	(	int	index,
		const AsciiSignalFormatRule &	r
	)		`[inline]`

Referenced by GeopsyGui::AsciiSignalRulesItem::insertRows(), and TitanProcess::TitanProcess().

{_rules.insert(index, r);}

bool GeopsyCore::AsciiSignalFormat::isValid ( const QString & fileName ) const [virtual]

Returns true if the file fileName contains a header that can be correctly parsed.

Reimplemented from GeopsyCore::AbstractFileFormat.

References header(), parseHeader(), and TRACE.

{
  TRACE;
  QFile f(fileName);
  if(!f.open(QIODevice::ReadOnly)) {
    return false;
  }
  QTextStream s(&f);
  int lineNumber=0;
  AsciiSignalFormat fileFormat(*this);
  QString h=fileFormat.header(s, lineNumber);
  return !h.isEmpty() && fileFormat.parseHeader(h);
}

void GeopsyCore::AsciiSignalFormat::operator= ( const AsciiSignalFormat & o )

References TRACE.

{
  TRACE;
  AbstractFileFormat::operator=(o);
  _headerType=o._headerType;
  _headerLineCount=o._headerLineCount;
  _headerPattern=o._headerPattern;
  _timeFormat=o._timeFormat;
  _components=o._components;
  _rules=o._rules;
}

bool GeopsyCore::AsciiSignalFormat::parseHeader	(	const QString &	headerText,
		QAtomicInt *	terminate = `0`
	)

Optionaly terminate is a flag that can be turned to true to stop the parser.

References GeopsyCore::AsciiSignalFormatRule::constant(), GeopsyCore::AsciiSignalFormatRule::data(), QGpCoreTools::endl(), GeopsyCore::MetaDataFactory::instance(), GeopsyCore::AsciiSignalFormatRule::mandatory(), GeopsyCore::AbstractFileFormat::name(), GeopsyCore::AsciiSignalFormatRule::pattern(), GeopsyCore::AsciiSignalFormatRule::patternIndex(), GeopsyCore::AsciiSignalFormatRule::setValue(), QGpCoreTools::tr(), and TRACE.

Referenced by isValid(), and GeopsyGui::AsciiSignalRulesItem::setHeader().

{
  TRACE;
  //App::stream() << headerText << endl;
  for(QVector<AsciiSignalFormatRule>::iterator it=_rules.begin();it!=_rules.end();it++) {
    AsciiSignalFormatRule& r=*it;
    if(!r.constant()) {
      QRegExp rexp(r.pattern());
      if(rexp.indexIn(headerText)>-1) {
        r.setValue(rexp.cap(r.patternIndex()));
      } else if(r.mandatory()) {
        App::stream() << tr("Cannot identify '%1' in ascii file header from regular expression '%2'")
            .arg(MetaDataFactory::instance()->name(r.data()))
                    .arg(r.pattern()) << endl;
        r.setValue(QVariant());
        return false;
      }
    }
    if(terminate && terminate->testAndSetOrdered(true, true)) {
      return false;
    }
  }
  return true;
}

void GeopsyCore::AsciiSignalFormat::removeComponent ( int index ) [inline]

Referenced by GeopsyGui::AsciiSignalComponentItem::removeRows().

{_components.remove(index);}

void GeopsyCore::AsciiSignalFormat::removeRule ( int index ) [inline]

Referenced by GeopsyGui::AsciiSignalRulesItem::removeRows().

{_rules.remove(index);}

const AsciiSignalFormatRule& GeopsyCore::AsciiSignalFormat::rule ( int index ) const [inline]

Referenced by GeopsyGui::AsciiSignalRulesItem::data(), GeopsyGui::AsciiSignalRulesItem::flags(), and GeopsyGui::AsciiSignalRulesItem::setData().

{return _rules.at(index);}

AsciiSignalFormatRule& GeopsyCore::AsciiSignalFormat::rule ( int index ) [inline]

{return _rules[index];}

int GeopsyCore::AsciiSignalFormat::ruleCount ( ) const [inline]

Referenced by GeopsyGui::AsciiSignalRulesItem::rowCount().

{return _rules.count();}

void GeopsyCore::AsciiSignalFormat::setHeaderLineCount ( int h ) [inline]

{_headerLineCount=h;}

void GeopsyCore::AsciiSignalFormat::setHeaderPattern ( const QString & h ) [inline]

Referenced by TitanProcess::TitanProcess().

{_headerPattern=h;}

void GeopsyCore::AsciiSignalFormat::setHeaderType ( HeaderType t ) [inline]

Referenced by TitanProcess::TitanProcess(), and xml_setProperty().

{_headerType=t;}

void GeopsyCore::AsciiSignalFormat::setHeaderType ( const QString & t )

References EndHeaderPattern, FixedHeader, HeaderPattern, NoHeader, and TRACE.

{
  TRACE;
  if(t.isEmpty()) return;
  switch(t[0].unicode()) {
  case 'N':
    _headerType=NoHeader;
    break;
  case 'F':
    _headerType=FixedHeader;
    break;
  case 'H':
    _headerType=HeaderPattern;
    break;
  case 'E':
    _headerType=EndHeaderPattern;
    break;
  default:
    break;
  }
}

void GeopsyCore::AsciiSignalFormat::setTimeFormat ( const QString & t ) [inline]

Referenced by TitanProcess::TitanProcess().

{_timeFormat=t;}

double GeopsyCore::AsciiSignalFormat::t0 ( ) const

References GeopsyCore::AsciiSignalFormatRule::data(), GeopsyCore::AsciiSignalFormatRule::factor(), GeopsyCore::MetaDataIndex::id(), GeopsyCore::MetaDataFactory::T0, TRACE, and GeopsyCore::AsciiSignalFormatRule::value().

{
  TRACE;
  for(int i=_rules.count()-1; i>=0; i--) {
    const AsciiSignalFormatRule& r=_rules.at(i);
    if(r.data().id()==MetaDataFactory::T0) {
      //App::stream() << "t0 " << r.value().toDouble() << endl;
      return r.value().toDouble()*r.factor();
    }
  }
  return 0.0;
}

const QString& GeopsyCore::AsciiSignalFormat::timeFormat ( ) const [inline]

Referenced by GeopsyGui::AsciiSignalFormatEditor::setFormat().

{return _timeFormat;}

QDateTime GeopsyCore::AsciiSignalFormat::timeReference ( ) const

References GeopsyCore::AsciiSignalFormatRule::data(), GeopsyCore::MetaDataIndex::id(), GeopsyCore::MetaDataFactory::TimeReference, TRACE, and GeopsyCore::AsciiSignalFormatRule::value().

{
  TRACE;
  for(int i=_rules.count()-1; i>=0; i--) {
    const AsciiSignalFormatRule& r=_rules.at(i);
    if(r.data().id()==MetaDataFactory::TimeReference) {
      //App::stream() << "tref " << r.value().toString() << endl;
      return QDateTime::fromString(r.value().toString(), _timeFormat);
    }
  }
  return QDateTime();
}

XMLMember GeopsyCore::AsciiSignalFormat::xml_member ( XML_MEMBER_ARGS ) [protected, virtual]

Re-implement this function to offer XML restore (children and properties) support to your class.

From tag and map (with contains the attibute value) return a unique identifier under the format of a XMLMember. XMLMember is initialized with 3 types of contructors:

An integer: id number of a property
A XMLClass * : a child of this object identified by tag
Default constructor: error, unknow child or property

Map of attributes can be inspected in this way (can be achived also in xml_setProperty()):

    static const QString tmp("childrenName");
    XMLRestoreAttributeIterator it=map.find(tmp);
    if(it!=map.end()) {
      // found attribute "childrenName"
    }

If the map of attributes is not used:

    Q_UNUSED(attributes);
    if(tag=="x1") return XMLMember(0);
    else if(tag=="y1") return XMLMember(1);
    else if(tag=="x2") return XMLMember(2);
    else if(tag=="y2") return XMLMember(3);
    else return XMLMember(XMLMember::Unknown);

Arithmetic operations + and - apply to XMLMember to avoid confusion of property id numbers between inherited objects. Offset 3 corresponds to the number of properties defined in this object.

    if(tag=="anInteger") return XMLMember(0);
    else if(tag=="aString") return XMLMember(1);
    else if(tag=="aDouble") return XMLMember(2);
    return AbstractLine::xml_member(tag, attributes, context)+3;

For the arguments of this function use Macro XML_MEMBER_ARGS.

Reimplemented from GeopsyCore::AbstractFileFormat.

References TRACE, GeopsyCore::AsciiSignalFormatComponent::xmlComponentTag, and GeopsyCore::AsciiSignalFormatRule::xmlRuleTag.

{
  TRACE;
  if(tag==AsciiSignalFormatRule::xmlRuleTag) {
    _rules.append(AsciiSignalFormatRule());
    return XMLMember(&_rules.last());
  } else if(tag==AsciiSignalFormatComponent::xmlComponentTag) {
    _components.append(AsciiSignalFormatComponent());
    return XMLMember(&_components.last());
  }  else if(tag=="headerType") return XMLMember(0);
  else if(tag=="headerPattern") return XMLMember(1);
  else if(tag=="headerLineCount") return XMLMember(2);
  else if(tag=="timeFormat") return XMLMember(3);
  else return AbstractFileFormat::xml_member(tag, attributes, context)+4;
}

bool GeopsyCore::AsciiSignalFormat::xml_setProperty ( XML_SETPROPERTY_ARGS ) [protected, virtual]

Re-implement this function to offer XML restore properties support to your class.

From memberID set the corresponding property with value content. The map of attributes is given as a supplementary information (not useful in all cases).

For a general case:

  Q_UNUSED(attributes);
  double val=content.toDouble();
  switch (memberID) {
  case 0:
    _x1=val;
    return true;
  case 1:
    _y1=val;
    return true;
  case 2:
    _x2=val;
    return true;
  case 3:
    _y2=val;
    return true;
  default:
    return false;
  }

For classes inheriting other classes (see also xml_member())

  switch (memberID) {
  case 0:
    _anInteger=content.toString();
    return true;
  case 1:
    _aString=content.toInt();
    return true;
  case 2:
    _aDouble=content.toDouble();
    return true;
  default:
    return AbstractLine::xml_setProperty(memberID-3, map, content);

For the arguments of this function use Macro XML_SETPROPERTY_ARGS.

Reimplemented from GeopsyCore::AbstractFileFormat.

References setHeaderType(), and TRACE.

{
  TRACE;
  switch (memberID) {
  case 0: setHeaderType(content.toString()); return true;
  case 1: _headerPattern=content.toString(); return true;
  case 2: _headerLineCount=content.toInt(); return true;
  case 3: _timeFormat=content.toString(); return true;
  default:
    break;
  }
  return AbstractFileFormat::xml_setProperty(memberID-4, tag, attributes, content, context);
}

virtual const QString& GeopsyCore::AsciiSignalFormat::xml_tagName ( ) const [inline, virtual]

Implements QGpCoreTools::XMLClass.

{return xmlAsciiSignalFormatTag;}

void GeopsyCore::AsciiSignalFormat::xml_writeChildren ( XML_WRITECHILDREN_ARGS ) const [protected, virtual]

Reimplemented from QGpCoreTools::XMLClass.

References TRACE.

{
  TRACE;
  for(QVector<AsciiSignalFormatComponent>::const_iterator it=_components.begin();it!=_components.end();it++) {
    it->xml_save(s, context);
  }
  for(QVector<AsciiSignalFormatRule>::const_iterator it=_rules.begin();it!=_rules.end();it++) {
    it->xml_save(s, context);
  }
}

void GeopsyCore::AsciiSignalFormat::xml_writeProperties ( XML_WRITEPROPERTIES_ARGS ) const [protected, virtual]

Reimplemented from GeopsyCore::AbstractFileFormat.

References headerTypeString(), TRACE, and QGpCoreTools::XMLClass::writeProperty().

{
  TRACE;
  AbstractFileFormat::xml_writeProperties(s, context);
  writeProperty(s, "headerType", headerTypeString());
  writeProperty(s, "headerPattern", _headerPattern);
  writeProperty(s, "headerLineCount", _headerLineCount);
  writeProperty(s, "timeFormat", _timeFormat);
}

Member Data Documentation

const QString GeopsyCore::AsciiSignalFormat::xmlAsciiSignalFormatTag = "AsciiSignalFormat" [static]

Referenced by GeopsyCore::CustomFileFormats::xml_member(), and GeopsyCore::CustomFileFormats::xml_writeChildren().

The documentation for this class was generated from the following files:

GeopsyCore/AsciiSignalFormat.h
GeopsyCore/AsciiSignalFormat.cpp

Public Types

Public Member Functions

Static Public Attributes

Protected Member Functions

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
