QGpGuiTools::Dialog Class Reference

Dialog class for saving current rect in registry When a dialog box is not visible on the screen, it is not possible to retrieve its correct rectangle and state (maximized, minimized,...). This class dynamically store the rectangle while the dialog box is visible and save it to registry upon request, usually after Settings::setWidget(). More...

#include <Dialog.h>

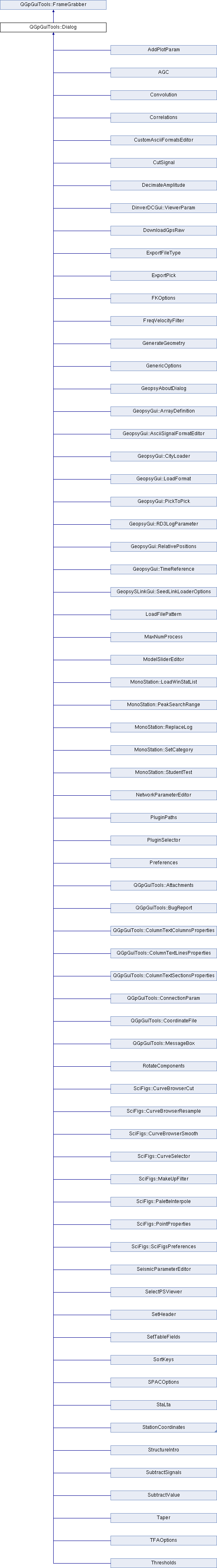

Inheritance diagram for QGpGuiTools::Dialog:

List of all members.

Public Types
enum	Buttons { None, OkCancel, Close, TitleClose }
Public Member Functions
void	addButtons (Buttons b=OkCancel)
void	addWidget (QWidget *w)
	Dialog (QWidget *parent=0, Qt::WFlags f=0)
void	getRect (QString name)
void	setMainWidget (QWidget *w, Buttons b=OkCancel)
void	setRect (QString name)
Protected Member Functions
virtual void	closeEvent (QCloseEvent *e)
virtual void	moveEvent (QMoveEvent *e)
virtual void	resizeEvent (QResizeEvent *e)

---

Detailed Description

Dialog class for saving current rect in registry When a dialog box is not visible on the screen, it is not possible to retrieve its correct rectangle and state (maximized, minimized,...). This class dynamically store the rectangle while the dialog box is visible and save it to registry upon request, usually after Settings::setWidget().

---

Member Enumeration Documentation

enum QGpGuiTools::Dialog::Buttons

Enumerator:

None
OkCancel
Close
TitleClose

{None, OkCancel, Close, TitleClose};

---

Constructor & Destructor Documentation

QGpGuiTools::Dialog::Dialog	(	QWidget *	parent = 0,
		Qt::WFlags	f = 0
	)

References None, and TRACE.

Referenced by QGpGuiTools::CoordinateFile::write().

  : QDialog(parent, f)
{
  TRACE;
  _vboxLayout=0;
  _buttons=None;
}

---

Member Function Documentation

void QGpGuiTools::Dialog::addButtons

(

Buttons

b = OkCancel

)

Shows any number of widgets (vertical layout) in a modal dialog box with bottom buttons. At least one call to addWidget is required by calling this function.

See also:

addWidget(), setMainWidget()

References Close, None, OkCancel, TitleClose, and TRACE.

Referenced by setMainWidget().

{
  TRACE;
  ASSERT(_vboxLayout);

  QDialogButtonBox * buttonBox=0;
  switch(b) {
  case OkCancel:
    buttonBox=new QDialogButtonBox(this);
    buttonBox->addButton(QDialogButtonBox::Ok);
    buttonBox->addButton(QDialogButtonBox::Cancel);
    connect (buttonBox, SIGNAL(accepted()), this, SLOT(accept()));
    connect (buttonBox, SIGNAL(rejected()), this, SLOT(reject()));
    _vboxLayout->addWidget(buttonBox);
    resize(minimumSizeHint());
    break;
  case Close:
    buttonBox=new QDialogButtonBox(this);
    buttonBox->addButton(QDialogButtonBox::Close);
    connect (buttonBox, SIGNAL(rejected()), this, SLOT(accept()));
    _vboxLayout->addWidget(buttonBox);
    resize(minimumSizeHint());
    break;
  case TitleClose:
  case None:
    break;
  }
  _buttons=b;
}

void QGpGuiTools::Dialog::addWidget

(

QWidget *

w

)

Shows any number of widgets (vertical layout) in a modal dialog box with bottom buttons.

See also:

addButtons(), setMainWidget()

References TRACE.

Referenced by setMainWidget().

{
  TRACE;
  if(!_vboxLayout) {
    _vboxLayout=new QVBoxLayout(this);
    _vboxLayout->setObjectName(QString::fromUtf8("vboxLayout"));
  }
  _vboxLayout->addWidget(w);

  if(windowTitle().isEmpty()) setWindowTitle(w->windowTitle());
}

void QGpGuiTools::Dialog::closeEvent

(

QCloseEvent *

e

)

[protected, virtual]

Reimplemented in SetHeader.

References TitleClose, and TRACE.

{
  TRACE;
  if(_buttons==TitleClose) {
    emit(accept());
    e->accept();
  } else {
    QDialog::closeEvent(e);
  }
}

void QGpGuiTools::Dialog::getRect

(

QString

name

)

[inline]

References QGpGuiTools::Settings::getRect().

Referenced by QGpGuiTools::BugReport::BugReport(), QGpGuiTools::CoordinateFile::CoordinateFile(), and QGpGuiTools::CoordinateFile::write().

{Settings::getRect(this, name);}

void QGpGuiTools::Dialog::moveEvent

(

QMoveEvent *

e

)

[protected, virtual]

References QGpGuiTools::FrameGrabber::setFrame(), and TRACE.

{
  TRACE;
  setFrame(this);
  QDialog::moveEvent(e);
}

void QGpGuiTools::Dialog::resizeEvent

(

QResizeEvent *

e

)

[protected, virtual]

References QGpGuiTools::FrameGrabber::setFrame(), and TRACE.

{
  TRACE;
  setFrame(this);
  QDialog::resizeEvent(e);
}

void QGpGuiTools::Dialog::setMainWidget	(	QWidget *	w,
		Buttons	b = OkCancel
	)

Shows any widget in a modal dialog box with bottom buttons. Convenient function for dialogs containing only one widget.

References addButtons(), addWidget(), Close, None, OkCancel, TitleClose, and TRACE.

Referenced by MainWindow::about(), ProcessStatus::changeLegend(), GeopsyMainWindow::createNewGroup(), MonoStation::WinResults::editPeaks(), WaveformConsole::filter(), MonoStation::WinResults::groupsToCategories(), DinverGui::helpAbout(), SciFigs::CurveBrowser::legend(), SciFigs::CurveBrowser::loadMultiColumns(), MonoStation::WinResults::options(), GroupView::properties(), WaveformConsole::waveletTransform(), and QGpGuiTools::CoordinateFile::write().

{
  TRACE;
  addWidget(w);
  switch(b) {
  case None:
  case TitleClose:
    _buttons=b;
    break;
  case OkCancel:
  case Close:
    addButtons(b);
    break;
  }
}

void QGpGuiTools::Dialog::setRect

(

QString

name

)

[inline]

References QGpGuiTools::FrameGrabber::setRect().

Referenced by QGpGuiTools::CoordinateFile::read(), QGpGuiTools::Settings::setRect(), QGpGuiTools::CoordinateFile::write(), and QGpGuiTools::BugReport::~BugReport().

{FrameGrabber::setRect(this, name);}

---

The documentation for this class was generated from the following files:

• QGpGuiTools/Dialog.h
• QGpGuiTools/Dialog.cpp
