Vector of double to store frequency samples and abstract modal object. More...

#include <CompatModalFrequency.h>

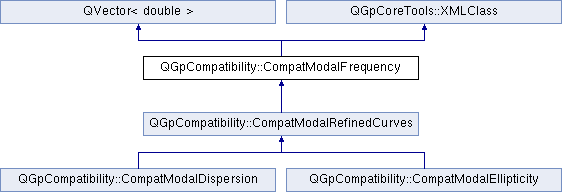

Inheritance diagram for QGpCompatibility::CompatModalFrequency:

Public Member Functions
void	addLoveModes (int nNewModes)
virtual void	addRayleighModes (int nNewModes)=0
	CompatModalFrequency ()
QVector< double > *	frequencies () const
void	insertOmegas (const CompatModalFrequency &samples)
bool	isSameOmegas (const CompatModalFrequency &o) const
int	nLoveModes () const
virtual int	nModes () const =0
int	nOmegas () const
int	nRayleighModes () const
double &	omega (int iOmega)
const double &	omega (int iOmega) const
void	operator= (CompatModalFrequency &o)
void	setFrequencies (QVector< double > &values)
virtual void	setNModes (int nm)=0
virtual void	setNOmegas (int nf)
void	setNRayleighModes (int nRm)
virtual const QString &	xml_tagName () const
virtual	~CompatModalFrequency ()
Static Public Attributes
static const QString	xmlModalFrequencyTag = "ModalFrequency"
Protected Member Functions
virtual void	addInvalid ()=0
virtual void	insertInvalidAt (int i)=0
virtual XMLMember	xml_member (XML_MEMBER_ARGS)
virtual bool	xml_setProperty (XML_SETPROPERTY_ARGS)
virtual void	xml_writeProperties (XML_WRITEPROPERTIES_ARGS) const
Protected Attributes
int	_nRayleighModes

Detailed Description

Vector of double to store frequency samples and abstract modal object.

Constructor & Destructor Documentation

QGpCompatibility::CompatModalFrequency::CompatModalFrequency ( )

References _nRayleighModes, and TRACE.

{
  TRACE;
  _nRayleighModes=0;
}

virtual QGpCompatibility::CompatModalFrequency::~CompatModalFrequency ( ) [inline, virtual]

{};

Member Function Documentation

virtual void QGpCompatibility::CompatModalFrequency::addInvalid ( ) [protected, pure virtual]

Implemented in QGpCompatibility::CompatModalRefinedCurves.

Referenced by insertOmegas().

void QGpCompatibility::CompatModalFrequency::addLoveModes ( int nNewModes )

Because Love modes are located at the end, there is nothing else to do than adding new modes

References nModes(), setNModes(), and TRACE.

{
  TRACE;
  if(nNewModes==0) return;
  setNModes(nModes()+nNewModes);
}

QGpCompatibility::CompatModalFrequency::addRayleighModes ( int nNewModes ) [pure virtual]

if there are Love modes, the task is a bit more complex...

Implemented in QGpCompatibility::CompatModalRefinedCurves.

QVector< double > * QGpCompatibility::CompatModalFrequency::frequencies ( ) const

References nOmegas(), and omega().

{
  QVector<double> * list=new QVector<double>;
  list->reserve(nOmegas());
  double fac=0.5/M_PI;
  for(int i=0;i<nOmegas();i++)
    list->push_back(omega(i)*fac);
  return list;
}

virtual void QGpCompatibility::CompatModalFrequency::insertInvalidAt ( int i ) [protected, pure virtual]

Implemented in QGpCompatibility::CompatModalRefinedCurves.

Referenced by insertOmegas().

void QGpCompatibility::CompatModalFrequency::insertOmegas ( const CompatModalFrequency & o )

Make sure that all samples of samples are included in this sample set. If a sample already exists nothing is performed. If not, an invalid sample is added.

References addInvalid(), insertInvalidAt(), nOmegas(), omega(), and TRACE.

{
  TRACE;
  int nf2Add=o.nOmegas();
  int i=0;
  for(int i2Add=0;i2Add<nf2Add;i2Add++) {
    double f2Add=o.omega(i2Add);
    while(i<nOmegas() && omega(i)<f2Add) i++;
    if(i>=nOmegas()) {
      append(f2Add);
      addInvalid();
    } else if(omega(i)>f2Add) {
      insert(i,f2Add);
      insertInvalidAt(i);
      i++;
    }
  }
}

bool QGpCompatibility::CompatModalFrequency::isSameOmegas ( const CompatModalFrequency & o ) const

References nOmegas(), omega(), and TRACE.

{
  TRACE;
  if(nOmegas()!=o.nOmegas()) return false;
  for(int i=0;i<nOmegas();i++) {
    if(omega(i)!=o.omega(i)) return false;
  }
  return true;
}

int QGpCompatibility::CompatModalFrequency::nLoveModes ( ) const [inline]

{return nModes()-_nRayleighModes;}

virtual int QGpCompatibility::CompatModalFrequency::nModes ( ) const [pure virtual]

Implemented in QGpCompatibility::CompatModalRefinedCurves.

Referenced by addLoveModes().

int QGpCompatibility::CompatModalFrequency::nOmegas ( ) const [inline]

Referenced by frequencies(), insertOmegas(), isSameOmegas(), QGpCompatibility::CompatModalEllipticity::oldStyle(), QGpCompatibility::CompatModalDispersion::oldStyle(), QGpCompatibility::operator<<(), setFrequencies(), QGpCompatibility::CompatModalRefinedCurves::toPointVector(), QGpCompatibility::CompatModalRefinedCurves::toStream(), and QGpCompatibility::CompatModalRefinedCurves::writeReport().

{return count();}

int QGpCompatibility::CompatModalFrequency::nRayleighModes ( ) const [inline]

Referenced by QGpCompatibility::CompatModalRefinedCurves::addRayleighModes(), QGpCompatibility::operator<<(), QGpCompatibility::CompatModalRefinedCurves::writeReport(), and DinverDCCore::TargetList::xml_polishChild().

{return _nRayleighModes;}

double& QGpCompatibility::CompatModalFrequency::omega ( int iOmega ) [inline]

Referenced by frequencies(), insertOmegas(), isSameOmegas(), QGpCompatibility::CompatModalEllipticity::oldStyle(), QGpCompatibility::CompatModalDispersion::oldStyle(), QGpCompatibility::operator<<(), QGpCompatibility::operator>>(), setFrequencies(), QGpCompatibility::CompatModalRefinedCurves::toPointVector(), QGpCompatibility::CompatModalRefinedCurves::toStream(), QGpCompatibility::CompatModalRefinedCurves::writeReport(), and DinverDCCore::TargetList::xml_polishChild().

{return operator[] (iOmega);}

const double& QGpCompatibility::CompatModalFrequency::omega ( int iOmega ) const [inline]

{return operator[] (iOmega);}

void QGpCompatibility::CompatModalFrequency::operator= ( CompatModalFrequency & o )

References _nRayleighModes, and TRACE.

{
  TRACE;
  QVector<double>::operator=(o);
  _nRayleighModes=o._nRayleighModes;
}

void QGpCompatibility::CompatModalFrequency::setFrequencies ( QVector< double > & values )

References QGpCoreTools::endl(), nOmegas(), omega(), QGpCoreTools::tr(), and TRACE.

{
  TRACE;
  if(nOmegas()==(int)values.size()) {
    for(int i=0;i<nOmegas();i++) omega(i)=2*M_PI*values[i];
  }
  else App::stream() << tr("Number of frequency do not match in %1, at line %2").arg(__FILE__).arg(__LINE__) << endl;
  ASSERT (at(0)<at(nOmegas()-1));
}

virtual void QGpCompatibility::CompatModalFrequency::setNModes ( int nm ) [pure virtual]

Implemented in QGpCompatibility::CompatModalEllipticity, and QGpCompatibility::CompatModalRefinedCurves.

Referenced by addLoveModes().

virtual void QGpCompatibility::CompatModalFrequency::setNOmegas ( int nf ) [inline, virtual]

Reimplemented in QGpCompatibility::CompatModalRefinedCurves.

Referenced by QGpCompatibility::operator>>().

{resize(nf);}

void QGpCompatibility::CompatModalFrequency::setNRayleighModes ( int nRm ) [inline]

Referenced by QGpCompatibility::CompatModalRefinedCurves::addRayleighModes(), and QGpCompatibility::operator>>().

{_nRayleighModes=nRm;}

XMLMember QGpCompatibility::CompatModalFrequency::xml_member ( XML_MEMBER_ARGS ) [protected, virtual]

Re-implement this function to offer XML restore (children and properties) support to your class.

From tag and map (with contains the attibute value) return a unique identifier under the format of a XMLMember. XMLMember is initialized with 3 types of contructors:

An integer: id number of a property
A XMLClass * : a child of this object identified by tag
Default constructor: error, unknow child or property

Map of attributes can be inspected in this way (can be achived also in xml_setProperty()):

    static const QString tmp("childrenName");
    XMLRestoreAttributeIterator it=map.find(tmp);
    if(it!=map.end()) {
      // found attribute "childrenName"
    }

If the map of attributes is not used:

    Q_UNUSED(attributes);
    if(tag=="x1") return XMLMember(0);
    else if(tag=="y1") return XMLMember(1);
    else if(tag=="x2") return XMLMember(2);
    else if(tag=="y2") return XMLMember(3);
    else return XMLMember(XMLMember::Unknown);

Arithmetic operations + and - apply to XMLMember to avoid confusion of property id numbers between inherited objects. Offset 3 corresponds to the number of properties defined in this object.

    if(tag=="anInteger") return XMLMember(0);
    else if(tag=="aString") return XMLMember(1);
    else if(tag=="aDouble") return XMLMember(2);
    return AbstractLine::xml_member(tag, attributes, context)+3;

For the arguments of this function use Macro XML_MEMBER_ARGS.

Reimplemented from QGpCoreTools::XMLClass.

Reimplemented in QGpCompatibility::CompatModalRefinedCurves, and QGpCompatibility::CompatModalEllipticity.

References QGpCoreTools::tr(), and TRACE.

{
  TRACE;
  Q_UNUSED(attributes)
  Q_UNUSED(context);
  if(tag=="values") return XMLMember(0);
  else if(tag=="val") return XMLMember(1);
  else if(tag=="DoubleVector") {
    App::stream() << tr("## WARNING ## : old style for list of frequencies, replace\n"
                 "<DoubleVector>\n"
                 "   <val>f1</val>\n"
                 "   <val>f2</val>\n"
                 "   ...\n"
                 " </DoubleVector>\n"
                 "by\n"
                 "<val>f1</val>\n"
                 "<val>f2</val>\n"
                 "  ...\n");
    return XMLMember(XMLMember::Unknown);
  } else if(tag=="nRayleighModes") return XMLMember(2);
  else return XMLMember(XMLMember::Unknown);
}

bool QGpCompatibility::CompatModalFrequency::xml_setProperty ( XML_SETPROPERTY_ARGS ) [protected, virtual]

Re-implement this function to offer XML restore properties support to your class.

From memberID set the corresponding property with value content. The map of attributes is given as a supplementary information (not useful in all cases).

For a general case:

  Q_UNUSED(attributes);
  double val=content.toDouble();
  switch (memberID) {
  case 0:
    _x1=val;
    return true;
  case 1:
    _y1=val;
    return true;
  case 2:
    _x2=val;
    return true;
  case 3:
    _y2=val;
    return true;
  default:
    return false;
  }

For classes inheriting other classes (see also xml_member())

  switch (memberID) {
  case 0:
    _anInteger=content.toString();
    return true;
  case 1:
    _aString=content.toInt();
    return true;
  case 2:
    _aDouble=content.toDouble();
    return true;
  default:
    return AbstractLine::xml_setProperty(memberID-3, map, content);

For the arguments of this function use Macro XML_SETPROPERTY_ARGS.

Reimplemented from QGpCoreTools::XMLClass.

Reimplemented in QGpCompatibility::CompatModalEllipticity.

References _nRayleighModes, QGpCoreTools::StringSection::isValid(), QGpCoreTools::StringSection::nextField(), QGpCoreTools::StringSection::toDouble(), and TRACE.

{
  TRACE;
  Q_UNUSED(tag);
  Q_UNUSED(attributes)
  Q_UNUSED(context);
  switch (memberID) {
  case 0: {
      const QChar * ptr=0;
      static const QString sep=" \n\t\r";
      StringSection f;
      clear();
      while(true) {
        f=content.nextField(ptr, sep, true);
        if(f.isValid()) append(f.toDouble()); else break;
      }
    }
    return true;
  case 1:
    append(content.toDouble());
    return true;
  case 2:
    _nRayleighModes=content.toInt();
    return true;
  default:
    return false;
  }
}

virtual const QString& QGpCompatibility::CompatModalFrequency::xml_tagName ( ) const [inline, virtual]

Implements QGpCoreTools::XMLClass.

Reimplemented in QGpCompatibility::CompatModalRefinedCurves, QGpCompatibility::CompatModalEllipticity, and QGpCompatibility::CompatModalDispersion.

{return xmlModalFrequencyTag;}

void QGpCompatibility::CompatModalFrequency::xml_writeProperties ( XML_WRITEPROPERTIES_ARGS ) const [protected, virtual]

Reimplemented from QGpCoreTools::XMLClass.

Reimplemented in QGpCompatibility::CompatModalEllipticity.

References _nRayleighModes, QGpCoreTools::endl(), TRACE, and QGpCoreTools::XMLClass::writeProperty().

{
  TRACE;
  Q_UNUSED(context);
  writeProperty(s, "nRayleighModes",_nRayleighModes);
  QString tmp;
  tmp+=s.indent();
  tmp+="<values>\n";
  int n=count();
  for(int i=0;i<n;i++) {
    tmp+=s.indent();
    tmp+="    ";
    tmp+=QString::number(at(i));
    tmp+="\n";
  }
  tmp+=s.indent();
  tmp+="</values>";
  s << tmp << endl;
}

Member Data Documentation

int QGpCompatibility::CompatModalFrequency::_nRayleighModes [protected]

Referenced by CompatModalFrequency(), operator=(), xml_setProperty(), and xml_writeProperties().

const QString QGpCompatibility::CompatModalFrequency::xmlModalFrequencyTag = "ModalFrequency" [static]

The documentation for this class was generated from the following files:

QGpCompatibility/CompatModalFrequency.h
QGpCompatibility/CompatModalFrequency.cpp
