Abstract class to define an arbitrary condition between parameters. More...

#include <AbstractCondition.h>

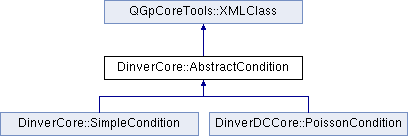

Inheritance diagram for DinverCore::AbstractCondition:

Public Member Functions
virtual bool	adjustRanges ()
uint	checksum () const
virtual void	getLimits (int parameterIndex, double &min, double &max) const =0
virtual void	humanInfo () const =0
int	indexOf (Parameter *p) const
virtual bool	operator== (const AbstractCondition &o) const
virtual const QString &	xml_tagName () const
Static Public Attributes
static const QString	xmlAbstractConditionTag = "AbstractCondition"
Protected Member Functions
void	addParameter (Parameter *p)
int	count () const
virtual uint	internalChecksum () const =0
Parameter &	parameter (int index)
const Parameter &	parameter (int index) const
QList< Parameter * > &	parameterList ()
virtual XMLMember	xml_member (XML_MEMBER_ARGS)
virtual bool	xml_setProperty (XML_SETPROPERTY_ARGS)
virtual void	xml_writeProperties (XML_WRITEPROPERTIES_ARGS) const

Detailed Description

Abstract class to define an arbitrary condition between parameters.

Implement function getLimits() to define your own type of condition

Member Function Documentation

void DinverCore::AbstractCondition::addParameter ( Parameter * p ) [inline, protected]

Referenced by DinverCore::SimpleCondition::SimpleCondition().

{_paramList.append(p);}

bool DinverCore::AbstractCondition::adjustRanges ( ) [inline, virtual]

Return true if original ranges of parameter are touched. Ranges can be reduced, never enlarged

Reimplemented in DinverCore::SimpleCondition.

Referenced by DinverCore::RealSpace::adjustRanges().

{return false;}

uint DinverCore::AbstractCondition::checksum ( ) const

Return a number that uniquely identify this condition.

See also:: internalChecksum()

References internalChecksum(), DinverCore::qHash(), and TRACE.

{
  TRACE;
  uint cs=0;
  for(QList<Parameter *>::const_iterator it=_paramList.begin(); it!=_paramList.end(); it++ ) {
    cs += qHash((*it)->name());
  }
  cs+=internalChecksum();
  return cs;
}

int DinverCore::AbstractCondition::count ( ) const [inline, protected]

{return _paramList.count();}

virtual void DinverCore::AbstractCondition::getLimits	(	int	parameterIndex,
		double &	min,
		double &	max
	)		const `[pure virtual]`

Implemented in DinverDCCore::PoissonCondition, and DinverCore::SimpleCondition.

Referenced by DinverCore::ParamCondition::getLimits().

virtual void DinverCore::AbstractCondition::humanInfo ( ) const [pure virtual]

Implemented in DinverDCCore::PoissonCondition, and DinverCore::SimpleCondition.

int DinverCore::AbstractCondition::indexOf ( Parameter * p ) const [inline]

Referenced by DinverCore::Parameter::addCondition().

{return _paramList.indexOf(p);}

virtual uint DinverCore::AbstractCondition::internalChecksum ( ) const [protected, pure virtual]

Implemented in DinverDCCore::PoissonCondition, and DinverCore::SimpleCondition.

Referenced by checksum().

bool DinverCore::AbstractCondition::operator== ( const AbstractCondition & o ) const [virtual]

Reimplemented in DinverDCCore::PoissonCondition, and DinverCore::SimpleCondition.

References TRACE.

{
  TRACE;
  return _paramList==o._paramList;
}

Parameter& DinverCore::AbstractCondition::parameter ( int index ) [inline, protected]

Referenced by DinverCore::SimpleCondition::adjustRanges(), DinverCore::SimpleCondition::getLimits(), and DinverCore::SimpleCondition::humanInfo().

{return *_paramList.at(index);}

const Parameter& DinverCore::AbstractCondition::parameter ( int index ) const [inline, protected]

{return *_paramList.at(index);}

QList<Parameter *>& DinverCore::AbstractCondition::parameterList ( ) [inline, protected]

Referenced by DinverDCCore::PoissonCondition::PoissonCondition().

{return _paramList;}

XMLMember DinverCore::AbstractCondition::xml_member ( XML_MEMBER_ARGS ) [protected, virtual]

Re-implement this function to offer XML restore (children and properties) support to your class.

From tag and map (with contains the attibute value) return a unique identifier under the format of a XMLMember. XMLMember is initialized with 3 types of contructors:

An integer: id number of a property
A XMLClass * : a child of this object identified by tag
Default constructor: error, unknow child or property

Map of attributes can be inspected in this way (can be achived also in xml_setProperty()):

    static const QString tmp("childrenName");
    XMLRestoreAttributeIterator it=map.find(tmp);
    if(it!=map.end()) {
      // found attribute "childrenName"
    }

If the map of attributes is not used:

    Q_UNUSED(attributes);
    if(tag=="x1") return XMLMember(0);
    else if(tag=="y1") return XMLMember(1);
    else if(tag=="x2") return XMLMember(2);
    else if(tag=="y2") return XMLMember(3);
    else return XMLMember(XMLMember::Unknown);

Arithmetic operations + and - apply to XMLMember to avoid confusion of property id numbers between inherited objects. Offset 3 corresponds to the number of properties defined in this object.

    if(tag=="anInteger") return XMLMember(0);
    else if(tag=="aString") return XMLMember(1);
    else if(tag=="aDouble") return XMLMember(2);
    return AbstractLine::xml_member(tag, attributes, context)+3;

For the arguments of this function use Macro XML_MEMBER_ARGS.

Reimplemented from QGpCoreTools::XMLClass.

Reimplemented in DinverCore::SimpleCondition.

References TRACE.

{
  TRACE;
  Q_UNUSED(attributes)
  Q_UNUSED(context);
  if(tag=="param" )
    return XMLMember(0);
  else
    return XMLMember(XMLMember::Unknown);
}

bool DinverCore::AbstractCondition::xml_setProperty ( XML_SETPROPERTY_ARGS ) [protected, virtual]

Re-implement this function to offer XML restore properties support to your class.

From memberID set the corresponding property with value content. The map of attributes is given as a supplementary information (not useful in all cases).

For a general case:

  Q_UNUSED(attributes);
  double val=content.toDouble();
  switch (memberID) {
  case 0:
    _x1=val;
    return true;
  case 1:
    _y1=val;
    return true;
  case 2:
    _x2=val;
    return true;
  case 3:
    _y2=val;
    return true;
  default:
    return false;
  }

For classes inheriting other classes (see also xml_member())

  switch (memberID) {
  case 0:
    _anInteger=content.toString();
    return true;
  case 1:
    _aString=content.toInt();
    return true;
  case 2:
    _aDouble=content.toDouble();
    return true;
  default:
    return AbstractLine::xml_setProperty(memberID-3, map, content);

For the arguments of this function use Macro XML_SETPROPERTY_ARGS.

Reimplemented from QGpCoreTools::XMLClass.

Reimplemented in DinverCore::SimpleCondition.

References TRACE.

{
  TRACE;
  Q_UNUSED(tag)
  Q_UNUSED(attributes)
  Q_UNUSED(context);
  switch (memberID) {
  case 0:
    _paramNameList.append(content.toString());
    return true;
  default:
    return false;
  }
}

virtual const QString& DinverCore::AbstractCondition::xml_tagName ( ) const [inline, virtual]

Implements QGpCoreTools::XMLClass.

Reimplemented in DinverDCCore::PoissonCondition, and DinverCore::SimpleCondition.

Referenced by DinverCore::SimpleCondition::operator==(), and DinverDCCore::PoissonCondition::operator==().

{return xmlAbstractConditionTag;}

void DinverCore::AbstractCondition::xml_writeProperties ( XML_WRITEPROPERTIES_ARGS ) const [protected, virtual]

Reimplemented from QGpCoreTools::XMLClass.

Reimplemented in DinverCore::SimpleCondition.

References TRACE, and QGpCoreTools::XMLClass::writeProperty().

{
  TRACE;
  Q_UNUSED(context);
  for(QList<Parameter *>::const_iterator it=_paramList.begin(); it!=_paramList.end(); it++ ) {
    writeProperty(s, "param", (*it)->name());
  }
}

Member Data Documentation

const QString DinverCore::AbstractCondition::xmlAbstractConditionTag = "AbstractCondition" [static]

The documentation for this class was generated from the following files:

DinverCore/AbstractCondition.h
DinverCore/AbstractCondition.cpp
