ArrayCore::KmaxSolver Class Reference

Computes Kmax according to Wathelet et al. (2008) More...

#include <KmaxSolver.h>

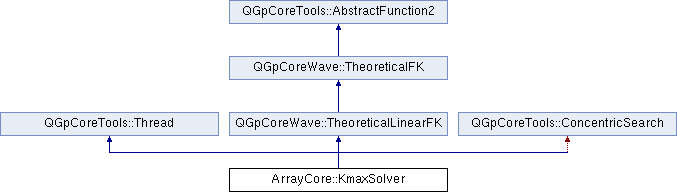

Inheritance diagram for ArrayCore::KmaxSolver:

List of all members.

Public Member Functions
void	calculate ()
double	kmax (bool &ok) const
	KmaxSolver (const QVector< Point2D > &stations, double kmin)
void	terminate ()
	~KmaxSolver ()

---

Detailed Description

Computes Kmax according to Wathelet et al. (2008)

Todo:

Do not inherit TheoreticalLinearFK but rather use a pointer

TheoreticalFK is used for peak search. TheoreticalLinearFK to find the intersection with level line at 0.5 around found peak (fixing azimuth).

---

Constructor & Destructor Documentation

ArrayCore::KmaxSolver::KmaxSolver	(	const QVector< Point2D > &	stations,
		double	kmin
	)

References QGpCoreTools::ConcentricSearch::setCenter(), QGpCoreTools::Function2Search::setFunction(), QGpCoreTools::ConcentricSearch::setGrid(), QGpCoreTools::ConcentricSearch::setNoiseLevel(), and TRACE.

    : TheoreticalLinearFK(stations)
{
  TRACE;
  _kmax=1e99;
  _kminHalf=0.5*kmin;
  _dk=0.25*kmin;
  _terminated=false;
  _valid=false;

  setCenter(0.0, 0.0);
  setGrid(2.0*kmin, 1e99, _dk);
  // Disregard any peak with amplitude lower than 0.1
  // Even if we are interested in peaks exceeding 0.5, the coarse grid search has
  // a step of kmin/4, hence first peak estimates might be less than 0.5 even if peak is
  // above 0.5.
  setNoiseLevel(0.1);
  // Doing this forces us to takeFunction() in destructor
  setFunction(this);
}

ArrayCore::KmaxSolver::~KmaxSolver

(

)

References QGpCoreTools::Function2Search::takeFunction(), and TRACE.

{
  TRACE;
  // Concentric search is the owner of this, remove this ownership
  takeFunction();
}

---

Member Function Documentation

void ArrayCore::KmaxSolver::calculate

(

)

[inline]

Referenced by Simulator::init(), ArrayGui::ArrayResponse::setArray(), and ToolFK::setDefaultGridParameters().

{start();}

double ArrayCore::KmaxSolver::kmax

(

bool &

ok

)

const

References QGpCoreTools::ConcentricSearch::r0(), and TRACE.

Referenced by ToolFK::setComputedKmax(), Simulator::setKmax(), and ToolFK::setTemporaryKmax().

{
  TRACE;
  QMutexLocker ml(&_kMutex);
  ok=_valid;
  if(ok) {
    return _kmax;
  } else {
    return r0();
  }
}

void ArrayCore::KmaxSolver::terminate

(

)

References TRACE.

Referenced by ArrayGui::ArrayResponse::setArray(), ToolFK::setDefaultGridParameters(), ToolFK::setTemporaryKmax(), ArrayGui::ArrayResponse::~ArrayResponse(), and ToolFK::~ToolFK().

{
  TRACE;
  _terminated.fetchAndStoreOrdered(true);
  wait();
}

---

The documentation for this class was generated from the following files:

• ArrayCore/KmaxSolver.h
• ArrayCore/KmaxSolver.cpp
