Array processing kernel. More...

#include <ArrayProcess.h>

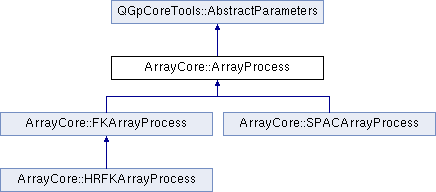

Inheritance diagram for ArrayCore::ArrayProcess:

Public Member Functions
const FrequencyBand &	frequency () const
bool	lockTimeWindow (const TimeRange *win)
const ArrayParameters *	parameters () const
bool	setFrequency (double f, QString *log=0)
bool	setFrequency (int iOmega, QString log=0, QString status=0)
void	setHorizontalDirection (double az)
void	setTimeRangeList (TimeRangeList *rl)
const QList < StationProcessSignals * > &	stations () const
const ArrayParameters *	takeParameters ()
TimeRangeList *	timeRangeList ()
const TimeRangeList *	timeRangeList () const
void	unlockTimeWindow ()
virtual	~ArrayProcess ()
Protected Member Functions
	ArrayProcess ()
bool	setParameters (const ArrayParameters *param, bool doNSampleWarning=true)
Protected Attributes
double	_horizontalDirection
QList< StationProcessSignals * >	_stations

Detailed Description

Array processing kernel.

Must be initialized with setTimeRangeList().

Constructor & Destructor Documentation

ArrayCore::ArrayProcess::~ArrayProcess ( ) [virtual]

Description of destructor still missing

References _stations, TRACE, and unlockTimeWindow().

{
  TRACE;
  unlockTimeWindow();
  qDeleteAll(_stations);
  delete _keep;
  _keep=0;
  delete _parameters;
  delete _timeRangeList;
}

ArrayCore::ArrayProcess::ArrayProcess ( ) [protected]

Description of constructor still missing

References TRACE.

{
  TRACE;
  _keep=0;
  _parameters=0;
  _signalsLocked=false;
  _timeRangeList=0;
}

Member Function Documentation

const FrequencyBand& ArrayCore::ArrayProcess::frequency ( ) const [inline]

Referenced by FKTimeWindows::currentVelocitySlowness(), FKLoopTask::exportMax(), FKLoopTask::exportResults(), HRFKLoopTask::getPower(), FKLoopTask::getPower(), FKTimeWindows::on_kEdit_valueChanged(), FKTimeWindows::on_vEdit_valueChanged(), SPACLoopTask::run(), HRFKTimeWindows::setComponent(), FKTimeWindows::setComponent(), FKTimeWindows::setGrid(), and ArrayCore::SPACStationSignals::setProcessed().

{return _frequency;}

bool ArrayCore::ArrayProcess::lockTimeWindow ( const TimeRange * win )

Calculate processed signals (filter, fft, offset removal, taper,...) on time window win and lock this signals for all stations of the array. If successful, you must call unlockTimeWindow() to release the memory. Calling unlockTimeWindow() is not mandatory even between two successive calls.

References _stations, GeopsyCore::StationProcessSignals::lockSamples(), GeopsyCore::StationProcessSignals::setProcessed(), and unlockTimeWindow().

Referenced by LinearFKPassiveLoopTask::run(), FKLoopTask::run(), SPACLoopTask::run(), and FKTimeWindows::setCurrentWindow().

{
  // Make sure nothing is currently locked
  unlockTimeWindow();
  StationProcessSignals * stat;
  int n=_stations.count();
  for(int i=0; i<n; i++ ) {
    stat=_stations.at(i);
    stat->setProcessed( *win, this);
    if( !stat->lockSamples()) {
      for(i--;i>=0;i--) _stations.at(i)->unlockSamples();
      return false;
    }
  }
  _signalsLocked=true;
  return true;
}

const ArrayParameters* ArrayCore::ArrayProcess::parameters ( ) const [inline]

Reimplemented in ArrayCore::FKArrayProcess, ArrayCore::HRFKArrayProcess, and ArrayCore::SPACArrayProcess.

{return _parameters;}

bool ArrayCore::ArrayProcess::setFrequency	(	double	f,
		QString *	log = `0`
	)

Calculate the list of time windows for a given frequency f.

References GeopsyCore::TimeRangeList::add(), GeopsyCore::TimeRangeList::clear(), QGpCoreTools::endl(), QGpCoreTools::log(), GeopsyCore::WindowingParameters::maximumLength(), GeopsyCore::SparseTimeRange::range(), ArrayCore::FrequencyBand::setCenter(), GeopsyCore::SparseKeepSignal::timeRange(), QGpCoreTools::tr(), and ArrayCore::ArrayParameters::windowing().

Referenced by LinearFKPassiveLoopTask::run(), FKLoopTask::run(), SPACLoopTask::run(), setFrequency(), and FKTimeWindows::setParameters().

{
  ASSERT(_keep);
  _frequency.setCenter(f);
  _timeRangeList->clear();
  if(_parameters->windowing().maximumLength(f)==0.0) {
    if(log) {
      (*log) += tr("Null time window length at %1 Hz\n").arg(f);
    } else {
      App::stream() << tr("Null time window length at %1 Hz").arg(f) << endl;
    }
    return false;
  }
  _timeRangeList->add(f, _parameters->windowing(), *_keep, _keep->timeRange().range(), log);
  return true;
}

bool ArrayCore::ArrayProcess::setFrequency	(	int	iOmega,
		QString *	log = `0`,
		QString *	status = `0`
	)

Calculate the list of time windows. Frequency is set from the frequency sampling at index iOmega.

References QGpCoreTools::SamplingParameters::count(), GeopsyCore::TimeRangeList::count(), ArrayCore::ArrayParameters::frequencySampling(), GeopsyCore::WindowingParameters::maximumLength(), GeopsyCore::WindowingParameters::minimumLength(), setFrequency(), QGpCoreTools::tr(), TRACE, QGpCoreTools::SamplingParameters::value(), and ArrayCore::ArrayParameters::windowing().

{
  TRACE;
  double f=_parameters->frequencySampling().value(iOmega);
  if(!setFrequency(f, log)) return false;
  const WindowingParameters& winParam=_parameters->windowing();
  int nWin=_timeRangeList->count();
  if(log) {
    (*log) += tr("Frequency %1/%2 %3\n")
              .arg(_parameters->frequencySampling().count()-iOmega)
              .arg(_parameters->frequencySampling().count())
              .arg(f);
    (*log) += tr("Min Window length %1 seconds\n").arg(winParam.minimumLength(f));
    (*log) += tr("Max Window length %1 seconds\n").arg(winParam.maximumLength(f));
    (*log) += tr(" %1 Time windows\n").arg(nWin);
  }
  if(status) {
    (*status)=tr("%1/%2 %3 Hz, %4 windows")
                   .arg(_parameters->frequencySampling().count()-iOmega)
                   .arg(_parameters->frequencySampling().count())
                   .arg(f)
                   .arg(nWin);
  }
  return true;
}

void ArrayCore::ArrayProcess::setHorizontalDirection ( double az ) [inline]

Referenced by FKTimeWindows::setComponent().

{_horizontalDirection=az;}

bool ArrayCore::ArrayProcess::setParameters	(	const ArrayParameters *	param,
		bool	doNSampleWarning = `true`
	)		`[protected]`

References ArrayCore::ArrayParameters::frequencyBandWidth(), ArrayCore::FrequencyBand::setRelativeWidth(), and TRACE.

{
  TRACE;
  delete _parameters;
  _parameters=param;
  _frequency.setRelativeWidth(_parameters->frequencyBandWidth());
  if(!setTimeLimits(doNSampleWarning)) return false;
  setGlobalKeep();
  return true;
}

void ArrayCore::ArrayProcess::setTimeRangeList ( TimeRangeList * rl ) [inline]

Referenced by HRFKTimeWindows::setArray(), FKTimeWindows::setArray(), HRFKLoopTask::setArray(), FKLoopTask::setArray(), and SPACLoopTask::setArray().

{_timeRangeList=rl;}

const QList<StationProcessSignals *>& ArrayCore::ArrayProcess::stations ( ) const [inline]

Referenced by ArrayCore::HRFKArrayProcess::function(), ArrayCore::FKArrayProcess::function(), FKLoopTask::setParameters(), and SPACLoopTask::setParameters().

{return _stations;}

const ArrayParameters * ArrayCore::ArrayProcess::takeParameters ( )

References TRACE.

Referenced by FKLoopTask::~FKLoopTask(), and SPACLoopTask::~SPACLoopTask().

{
  TRACE;
  const ArrayParameters * param=_parameters;
  _parameters=0;
  return param;
}

TimeRangeList* ArrayCore::ArrayProcess::timeRangeList ( ) [inline]

Referenced by LinearFKPassiveLoopTask::run(), FKLoopTask::run(), SPACLoopTask::run(), HRFKTimeWindows::setComponent(), FKTimeWindows::setComponent(), FKTimeWindows::setCurrentWindow(), and FKTimeWindows::timeWindowList().

{return _timeRangeList;}

const TimeRangeList* ArrayCore::ArrayProcess::timeRangeList ( ) const [inline]

{return _timeRangeList;}

void ArrayCore::ArrayProcess::unlockTimeWindow ( )

Can be called only after a successful lockTimeWindow().

References _stations.

Referenced by lockTimeWindow(), LinearFKPassiveLoopTask::run(), FKLoopTask::run(), SPACLoopTask::run(), and ~ArrayProcess().

{
  if(_signalsLocked) {
    QList<StationProcessSignals *>::iterator it;
    for(it=_stations.begin();it!=_stations.end();++it) (*it)->unlockSamples();
    _signalsLocked=false;
  }
}

Member Data Documentation

double ArrayCore::ArrayProcess::_horizontalDirection [protected]

Referenced by ArrayCore::FKArrayProcess::function().

QList<StationProcessSignals *> ArrayCore::ArrayProcess::_stations [protected]

Referenced by ArrayCore::FKArrayProcess::FKArrayProcess(), ArrayCore::HRFKArrayProcess::function(), ArrayCore::FKArrayProcess::function(), lockTimeWindow(), ArrayCore::SPACArrayProcess::SPACArrayProcess(), unlockTimeWindow(), and ~ArrayProcess().

The documentation for this class was generated from the following files:

ArrayCore/ArrayProcess.h
ArrayCore/ArrayProcess.cpp
