Warangps - Overview
Warangps is a graphical tool for displaying the status and coordinates of gps devices in a distributed sensor network. Among other things (to be described later), warangps can be used to display the array response function for a specific array geometry.
Loading coordinates
After starting up warangps, you should switch to the Map tab of the graphical user interface and set the radio button from Auto to Manual. Only then you are able to push the Load button to open a free format ASCII coordinate file.

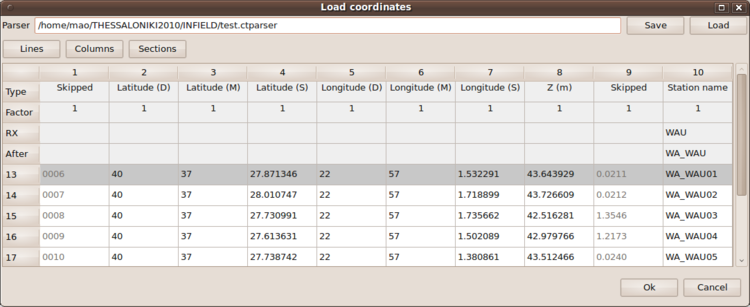

After locating an appropriate file with the file browser, a file parser window will be opened. The flexibel parser is described in detail in the multi-column parser page. Here we provide an example coordinate file and a corresponding parser file.
After laoding the pre-configured parser file or after specfying the different column entries by yourself for your own data example, you will load the coordinates by confirming with the Ok button. The displays in warangps will change immediately displaying the coordinates in a table (upper left), on a map (lower left) and further showing the array response function in the wavenumber domain for the corresponding array geometry.
