Line 1: Line 1:
−
The results are presented for the H/V computation of ambient vibration signals recorded at eight sites.
+



Windowing and processing have been performed after adjusting parameters in the [[Geopsy: H/V and Spectrum Toolboxes|H/V Toolbox]].

Windowing and processing have been performed after adjusting parameters in the [[Geopsy: H/V and Spectrum Toolboxes|H/V Toolbox]].
−

−
As more than one station with 3 components are processed geopsy produce two series of results that appear in two windows:

−
* Individual H/V curves for each of the processed station

−
* Summary

−



Line 18: Line 13:

[[Image:HV_RESULTS_signal_2.png|thumb|right|300px|Signal and selected windows before processing]]

[[Image:HV_RESULTS_signal_2.png|thumb|right|300px|Signal and selected windows before processing]]

−
After processing, each selected windows appear with its own colour on the signal sheet.
+
After processing, each selected windows appear with its own color on the signal sheet.
 +
<br style="clear: both"/>
 +

 +

 +
= H/V graph =
 +

 +
[[Image:HV_RESULTS_HV_curve1.png|thumb|right|300px|Signal and selected windows before processing]]
 +

 +
The H/V graph shows:
 +
* individual H/V curves from the selected windows, with the color corresponding to the clour of the window in the signal sheet
 +
* the average H/V curve (black line)
 +
* the amplitude standard deviation curves (dashed lines)
 +
* the H/V peak frequency standard deviation domains (the two vertical gray areas)
 +

 +
The frequency of the H/V peak is at the limit between the two gray areas.
 +

 +
The name of the reciever appear above the top right corner of the H/V graph.
 +

 +
<br style="clear: both"/>
 +

 +

 +
= Processing several receivers =

−
= H/V curves =


 +
=== Individual H/V curves ===

[[Image:HV_RESULTS_HV_curves.png|thumb|right|300px|Individual H/V curves]]

[[Image:HV_RESULTS_HV_curves.png|thumb|right|300px|Individual H/V curves]]
−



<br style="clear: both"/>

<br style="clear: both"/>


−
= H/V summary =
+
=== H/V summary ===


[[Image:HV_RESULTS_HV_summary.png|thumb|right|300px|H/V summary]]

[[Image:HV_RESULTS_HV_summary.png|thumb|right|300px|H/V summary]]
 +
<br style="clear: both"/>

Revision as of 15:35, 10 January 2013


Windowing and processing have been performed after adjusting parameters in the H/V Toolbox.


Signal and selected windows

Signal and selected windows before processing

After applying the windowing selection criteria, the selected windows appear in green on the signal sheet.

Signal and selected windows before processing

After processing, each selected windows appear with its own color on the signal sheet.


H/V graph

Signal and selected windows before processing

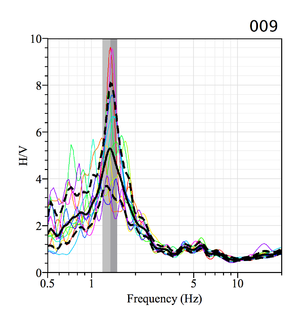

The H/V graph shows:

  • individual H/V curves from the selected windows, with the color corresponding to the clour of the window in the signal sheet
  • the average H/V curve (black line)
  • the amplitude standard deviation curves (dashed lines)
  • the H/V peak frequency standard deviation domains (the two vertical gray areas)

The frequency of the H/V peak is at the limit between the two gray areas.

The name of the reciever appear above the top right corner of the H/V graph.



Processing several receivers

Individual H/V curves

Individual H/V curves



H/V summary

H/V summary
