F-K Toolbox (conventional f-k)

Opening f-k toolbox - overview

Signal viewer for one group of simultaneously recorded waveforms ready for array processing

If you have followed all steps above you should have now a set of simultaneously recorded waveforms building a group and containing coordinates for each waveform. You can view this group of waveforms in the data viewer and should get a picture like the one shown to the right.

Now you can open the conventional frequency wavenumber toolbox by pushing the plugin icon .

The f-k toolbox should open and is now attached to the signal viewer. No other toolbox will now open with the signals you have loaded to the signal viewer. In order to process the same data set by another tool, you have to open them in a different signal viewer window. Note also, that once you close either the f-k toolbox window or the signal viewer, there is no way to undo this action - you will have to start again by opening a new signal viewer and attaching the f-k toolbox to it. Alternatively you can drag your group directly into the f-k toolbox icon. Geopsy will automatically open a new exclusively attached signal viewer for you.

Conventional f-k toolbox

Let's now have a close look to the individual parameters to be set in the f-k toolbox. There are four main groups of parameters to be considered.

• Pre-processing parameters for excluding data from processing.
• Processing parameters for selecting time windows on the remaining data.
• Processing parameters for selecting narrow frequency bands for processing
• Parameters related to the output of results from f-k processing.

These parameters are laid out in different parts of the f-k toolbox widget. Note, that the toolbox has three main tabs: Time, Processing and Status.

The pre-processing parameters for excluding data from processing follow the same argumentation as the data selection for other toolboxes like H/V processing and can be found in the Time tab.

E.g. one can apply the so-called anti-trigger approach for removing transient signals from the continuous recordings (i.e. excluding those time chunks from processing). The anti-trigger approach can be applied to raw or filtered data. For the detailed settings please look into the description of anti-trigger. Another, second, approach for excluding data from processing is provided via the bad sample approach. For details in setting parameters with the bad sample approach check this page.

Parameter settings

Parameters for time window settings

Time limits layout group

There are two distinct inputs in the f-k toolbox for selecting time windows for processing. First, it is necessary to specify start and end times of the overall data window for processing by selecting entries From and To in the Time limits part of the Time tab of the fk-toolbox.

There are three options each for the drop boxes From and To. For the From entry you can select among .

• this time (entries in form xx h xx m xx.xxx s)
• T0 (selects earliest common start time of all traces in group)
• during (selects time duration before end of the signals - either specified with End or this time as explained below)

For the To entry there are the options :

• this time (entries in form xx h xx m xx.xxx s)
• End (selects latest common end time of all traces in group)
• during (selects time duration from start time as given above - either specified by this time or T0)

Note: a selection of time limits as From: during && To: during is NOT valid.

General tab

After selecting the overall data window for processing you finally have to specify the window length for each single analysis window to be processed. You can find this Length parameter in the General tab inside the Time tab. There are again three options provided in a drop box .

• Exactly (takes exactly the time window length as provided in the corresponding editable box - unit is in seconds).
• At least (takes at least the time window length as given in the editable box, if possible it takes more - unit is in seconds).
• Freq. dep. (read: frequency dependent. Scales window length to the center frequency of each frequency band to be processed. The number given in the editable box corresponds to a window length in number of cycles for each frequency band. T is the center period of the band).

Note: the most common setting for the Length parameter is Freq. dep. with values between 20.00 to 50.00 meaning that 20 to 50 cycles of the central signal period per frequency bands are used as window length. Example: for a frequency band with center frequency 2.5 Hz, the central period is 1/2.5 = 0.4 s. Therefore, with a frequency dependent Length setting of 30.00 T, the window length will be chosen as 12.00 s.

Parameters for frequency band selection

Processing tab of f-k toolbox

The selection of the frequency bands to be processed is driven by parameter inputs inside the Processing tab of the f-k toolbox. In the Frequency sampling layout group you can specify the minimum and the maximum (central) frequencies for processing. Between these two limits, the frequency axis will then be sampled according to the settings in the next line .

There are two options to be specified, namely Step and Number of Samples. For the Step parameter, there are two options to be selected from a drop box: Log or Linear. You might have guessed the meaning right away. When choosing Linear then the frequency axis is sampled linearly between the given limits and exactly Number of Samples will be distributed along the axis. Choosing Log accordingly samples the frequency axis logarithmically, i.e. frequency bands are close spaced at lower frequencies.

Note: the sampled frequencies are taken as center frequencies in the processing scheme. Therefore, it is necessary to specify additionally a bandwidth so that the processing can be performed in a finite but narrow frequency band. The bandwidth parameter is chosen as relative half-bandwidth in the FK-gridding layout group in the processing tab .

The frequency limits for each frequency band are computed as $[(1-bw)\cdot f_{c},(1+bw)\cdot f_{c}]$ where $f_{c}$ is the central frequency and $bw$ is the bandwidth parameter.

Example: a setting of 0.10 for the bandwidth, a Linear spacing of 10 samples along the frequency axis from 1 Hz to 10 Hz will create the following frequency bands:

Frequency band creation using Step: Linear, Bandwidth: 0.10, From: 1 Hz, to: 10 Hz

Freq. band index	Lower frequency limit	Center frequency	Upper frequency limit
1	0.9 Hz	1.0 Hz	1.1 Hz
2	1.8 Hz	2.0 Hz	2.2 Hz
3	2.7 Hz	3.0 Hz	3.3 Hz
4	3.6 Hz	4.0 Hz	4.4 Hz
5	4.5 Hz	5.0 Hz	5.5 Hz
6	5.4 Hz	6.0 Hz	6.6 Hz
7	6.3 Hz	7.0 Hz	7.7 Hz
8	7.2 Hz	8.0 Hz	8.8 Hz
9	8.1 Hz	9.0 Hz	9.9 Hz
10	9.0 Hz	10.0 Hz	11.0 Hz

Parameters influencing the sampling of the wavenumber space

The basic idea of f-k processing consists of delaying the observed recordings at different stations according to a particular horizontal wavenumber vector ${\vec {k}}=(k_{x},k_{y})^{T}$ and computing the semblance coefficient $Semb(\omega ,{\vec {k}})$ (coherence measure, see Neiddell and Taner (1971) or Douze and Laster (1979) ) and/or beam power $BP(\omega ,{\vec {k}})$ of the shifted stacked output of all array stations. Beampower and Semblance are defined as follows:

• Beampower:

$BP(\omega ,{\vec {k}})=\sum _{\omega =\omega _{l}}^{\omega =\omega _{h}}\left[\sum _{i=1}^{i=N}X_{i}(\omega )\exp(j{\vec {k}}{\vec {r}}_{i})\right]^{2}$

• Semblance:

$Semb(\omega ,{\vec {k}})={\frac {\sum _{\omega =\omega _{l}}^{\omega =\omega _{h}}\left[\sum _{i=1}^{i=N}X_{i}(\omega )\exp(j{\vec {k}}{\vec {r}}_{i})\right]^{2}}{N\sum _{\omega =\omega _{l}}^{\omega =\omega _{h}}\sum _{i=1}^{i=N}\left[X_{i}(\omega )\exp(j{\vec {k}}{\vec {r}}_{i})\right]^{2}}}$

In the above formulas $X_{i}(\omega )$ is the observed record at station $i$ at frequency $\omega$. The station coordinates in the array plane (usually earth's surface) are given by ${\vec {r}}_{i}$. Therefore, the time delays of a harmonic plane wave propagating along the horizontal plane in direction of ${\vec {k}}$ and apparent propagation velocity $c$ related to the absolute length of the wavenumber vector $\|{\vec {k}}\|=2\pi /\lambda =2\pi f/c=\omega /c$ can be computed as $\tau ={\vec {k}}{\vec {r}}_{i}$. Thus, the beampower/semblance measure the power/coherence of a plane wave propagating with wavenumber vector ${\vec {k}}$. By testing many wavenumber vectors in the wavenumber plane one tries to find those wavenumber vectors which maximize the array output. The wavenumber found corresponds to a plane wave along the surface crossing the seismometer array.

So, the problem at hand is a general optimization problem trying to find the maximum of a function of two parameters (here $(k_{x},k_{y})^{T}$). In order to optimize the grid search approach, the f-k toolbox relies on an iterative refined sampling strategy. In the first iteration potential maxima are identified within the search limits of the wavenumber plane using a coarse grid step in both axis directions $(k_{x},k_{y})$. Note, that coarse is relative and must be fine enough in order to match the goal: identifying potential maxima in the wavenumber plane. Therefore, the grid step must be as small enough as to sample the peaky structure of the array reponse sufficiently fine for not missing any small maximum in the optimization procedure. The array response is closely related to the 2-dimensional array geometry (please check also the tools gpfksimulator and warangps for this issue). In particular the width of the main lobe peak - we refer to it as $k_{min}$ - in the array response (which is the one we are looking for) is approximately related to the overall aperture of the array $D_{max}$ by $k_{min}\approx 2\pi /D_{max}$.

In the current version of the f-k toolbox, the grid_step for sampling is automatically calculated as $grid\_step=k_{min}/4$. Thus, any potential peak to be indentified in the wavenumber domain will be sampled in either direction at least with four samples.

In a similar way, the maximum search radius in the wavenumber space (we call it grid_size) is related on one hand to the minimal wave speed that is expected to be observable in the wave field. The second limit to be considered is related to the existence of strong side lobes or grating lobes in the array reponse function. However, this limit is much more ambiguous than the grid_step. Taking the viewpoint of scanning the whole wavenumber space up to physical limits of wave propagation velocities will lead often to an unnecessary computation time for lower frequency bands. On the other hand, restricting the grid_size too strongly on the apparent side lobes in the array reponse function will not allow for high frequencies to obtain any result for slowly propagating waves. For an in-depth discussion of this issue look here.

Gridding parameters for the wavenumber plane

The setting for the parameters regarding the gridding of the wavenumber plane are summarized in the FK gridding layout group of the processing tab in the f-k toolbox (see picture to the left). The values for grid_step and grid_size are computed automatically following the comments provided about the minimum physical propagation velocity is set per default to 100 m/s. Depending on the knowledge about your site conditions, you may or may not modify this setting. Be aware that soft soil sites may find Rayleigh wave propagation velocities for the fundamental mode fundamental mode well below 100 m/s!

Parameter settings for output / saving results

Power spectrum maxima group

There will be two output files created. The name of the output file and the location (path) for storing the output files is specified in the lowest layout group of the Processing tab titled Power spectrum maxima with the option Output file. Pushing the button to the right of the editable textbox entry will open a file browser and allows you to navigate to some location in your directory tree and specify an output file name.

The extension of the main output file is .max. Additionally an other output file is created containing the processing parameters and information created during the processing run. The extension of this file is set to .log. Parameters can be reloaded from an existing .log file in the Load parameters option form the Time tab of the f-k toolbox .

Note: the option Maximum number allows you to store more than the highest maximum found in the optimized grid search in the wavenumber plane. In order to identify dispersion curve branches at higher frequencies where a lot of aliasing may occur, it may prove beneficial to use this option (e.g. by replacing the defualt number 1 to a value of 2 to 4).

There are two additional output filtering options that can be used to store not every result into the output files. The options are named Absolute th. and Relative th. and are explained in detail in max2curve. The default values are 0 in both cases meaning that no filtering on the output results will occur. As one is able to filter the result output at a later stage of the processing chain using max2curve we certainly recommend not to change these values. As it is a post-processing filtering there will be also no gain in processing speed.

Testing parameter settings and starting f-k processing

Test button for checking parameter settings and controlling data quality interactively

Once you finished all parameter settings as described above, you may check the impact of the settings on the f-k processing by using the Test button in the Time tab of the f-k toolbox.

interactive frequency wavenumber window browser

Pushing the Test button will open a frequency wavenumber window browser which allows you to explore the f-k analysis for individual time windows and different frequency bands.

You can move the Time window slider to scroll in time over the selected data and selecting the individually processed data windows. The results of the wavenumber analysis will be displayed in the browser window as a colored map. The color scale is following the physical rainbow light spectrum, associating violet with high and red with low power values. While sliding through time, you will notice that the wavenumber results will change depending on the direction of wave propagation and number of identifiable plane wave sources in the wave field.

Note: please be aware of caveats for the interpretation of multiple plane waves propagating at the same time with distinct propagation properties (check the page on Multiple plane waves and explore this issue using gpfksimulator).

An interesting feature of this wavenumber browser window is the capability to control the consistency of apparent wave velocity / horizontal slowness estimation. The black circle, which is displayed on top of the wavenumber plane corresponds to a single propagation velocity / slowness without considering the propagation azimuth. For a wave field completely composed of a mixture of a single mode surface wave (e.g. Rayleigh for vertical component analysis), we would therefore expect the peak in the wavenumber domain always to be located at the same distance from the center of the wavenumber map. Using the black circles helps to locate the relative distance of dominant peak(s) in the wavenumber domain with respect to the center of the figure. For a single frequeny, we expect only the direction to change, but finding the peak maximum always below the circle line.

Contents of output file

The contents of the output file are best explained by having a look into the plain ascii file. Header lines are marked with a # as the first character of the line. The header entries of the max files provide the list of frequency bands that were processed. Other entries are obsolete but are kept for compatibility with former file formats used in other codes during the SESAME project.

# File generated by Geopsy, FK processing
# The process log is saved in file lep_ring01.log
# Header
# GRID_LAYOUT 0
# GRID_TYPE 0
# NPHI 72
# GRID_RESOL 250
# GRID_MAX 10
# NUM_BANDS 100
# Number of freq bands: 100
# Band 0 lower 0.45 center 0.5 upper 0.55
# Band 1 lower 0.468138 center 0.520153 upper 0.572169
# Band 2 lower 0.487007 center 0.541119 upper 0.595231
# Band 3 lower 0.506636 center 0.562929 upper 0.619222
# Band 4 lower 0.527057 center 0.585619 upper 0.644181
# Band 5 lower 0.548301 center 0.609223 upper 0.670146
# Band 6 lower 0.570401 center 0.633779 upper 0.697157
...............
...............
# Band 95 lower 19.2104 center 21.3449 upper 23.4794
# Band 96 lower 19.9847 center 22.2053 upper 24.4258
# Band 97 lower 20.7903 center 23.1003 upper 25.4103
# Band 98 lower 21.6282 center 24.0314 upper 26.4345
# Band 99 lower 22.5 center 25 upper 27.5
# seconds from start | cfreq | slow | az | math-phi | semblance | beampow
30378.9 0.940916 5.15376 21.9177 68.0823 0.491473 63.9522
30442.7 0.940916 3.18228 38.3304 51.6696 0.210185 65.6729
30474.6 0.940916 3.85247 121.714 328.286 0.298423 69.8839
30121.3 0.978841 4.66624 276.785 173.215 0.22663 70.1559
30366.6 0.978841 6.27949 18.5945 71.4055 0.188424 71.1481
30397.3 0.978841 6.79274 263.773 186.227 0.177627 63.9104
30354.7 1.0183 5.79576 65.0153 24.9847 0.192576 71.5275
30384.2 1.0183 6.28673 265.305 184.695 0.604842 71.942
30458.6 0.978841 4.57822 4.44118 85.5588 0.23338 69.5334
...........
...........

The more interesting lines of the the .max output file start right below the header lines. The final header line describes the entries in the different columns:

• Time from start of processed data window in seconds
• Center frequency of the processed data window
• Estimated Slowness in s/km (this unit is also kept for compatibility reasons)
• Azimuth of propagation direction (direction of wavenumber/slowness vector) as measured from North via East
• Same angle as before, but now given in mathematical orientation (measured from East via North)
• Semblance coefficient
• Beampower value given in dB ( $10\cdot \log(BP(\omega ,{\vec {k}}))$

The Log file contents as displayed below contain three different sections, Init. Parameter and Process. The init section reports which signals of which stations are included for processing and the relative coordinates in units of m are reported for each station. The parameter section contains a summary of all settings specified in the f-k toolbox setting and which are used for the processing. The process section finally contains the summary of all windows processed for each frequency bands. Examples for the three sections are given below:

### Init Log ###
*********** vertical ***********
Add signal id 3 to component Vertical of station WA_WAU01 at 0.940538 -0.0688223 43.6439
Add signal id 6 to component Vertical of station WA_WAU02 at 5.32643 4.2312 43.7266
Add signal id 9 to component Vertical of station WA_WAU03 at 5.72042 -4.39827 42.5163
Add signal id 12 to component Vertical of station WA_WAU04 at 0.230693 -8.01841 42.9798
Add signal id 15 to component Vertical of station WA_WAU05 at -2.61856 -4.15918 43.5125
Add signal id 18 to component Vertical of station WA_WAU06 at -6.41618 0.965644 43.5362
Add signal id 21 to component Vertical of station WA_WAU07 at -3.53215 4.06034 43.6112
Add signal id 24 to component Vertical of station WA_WAU08 at 0.34882 7.3875 43.6973
Found 8 different stations
### End Init Log ###

Parameter section - Note: when loading the log file via the Load Params button, those parameters will be loaded into the f-k toolbox.

### Parameters ###
WINDOW MIN LENGTH (s) = 50
WINDOW MAX LENGTH (s) = 30
WINDOW LENGTH TYPE (at least/exactly/freq. dep.) = freq. dep.
DO BAD SAMPLE TOLERANCE (y/n) = n
BAD SAMPLE TOLERANCE (s) = 0
DO WINDOW OVERLAP (y/n) = n
WINDOW OVERLAP (%) = 5
DO BAD SAMPLE THRESHOLD (y/n) = n
BAD SAMPLE THRESHOLD (%) = 99
ANTI-TRIGGERING ON RAW SIGNAL (y/n) = n
USED RAW COMPONENTS = y, n, y, y, y, y, y, y, y, y
RAW STA (s) = 1
RAW LTA (s) = 30
RAW MIN SLTA = 0.2
RAW MAX SLTA = 2.5
MINIMUM FREQUENCY = 0.5
MAXIMUM FREQUENCY = 25
INVERSED FREQUENCY = n
SAMPLES NUMBER FREQUENCY = 100
SAMPLING TYPE FREQUENCY (0=log, 1=linear)= 0
FROM TIME TYPE = 0
FROM TIME TEXT = 8h21m0s
TO TIME TYPE = 0
TO TIME TEXT = 9h29m0s
MIN K = 0.015
MAX K = 0.5
MIN V = 100
FREQ BAND WIDTH = 0.1
N MAXIMA = 3
OUTPUT FILE = /home/mao/GEOPSY_DOC_WORKSHOP/lep_ring01.max
### End Parameters ###

Process Log section

### Process Log ###
Process started at 2010-03-08 10:54:47
Adding window from 30060 to 30120 s.
Adding window from 30120 to 30180 s.
Adding window from 30180 to 30240 s.
Adding window from 30240 to 30300 s.
Adding window from 30300 to 30360 s.
Adding window from 30360 to 30420 s.
Adding window from 30420.1 to 30480.1 s.
Adding window from 30480.1 to 30540.1 s.
Adding window from 30540.1 to 30600.1 s.
Adding window from 30600.1 to 30660.1 s.
Adding window from 30660.1 to 30720.1 s.
Adding window from 30720.1 to 30780.1 s.
Adding window from 30780.1 to 30840.1 s.
Adding window from 30840.1 to 30900.1 s.
Frequency 1/100 0.5
Min Window length 60 seconds
Max Window length 60 seconds
 14 Time windows
.......
Adding window from 30919.1 to 30920.3 s.
Adding window from 30920.3 to 30921.5 s.
Adding window from 30921.5 to 30922.7 s.
Frequency 100/100 25
Min Window length 1.2 seconds
Max Window length 1.2 seconds
 713 Time windows
Process run in 00:01:20
Process ended at 2010-03-08 10:56:08
### End Process Log ###

Graphical display of f-k results using max2curve

For the interpretation of the results of the f-k processing one can use the graphical tool max2curve or a combination of gphistogram and max2curve.

You may call max2curve on the command line directly with the output file (.max file) produced from your f-k processing.

$> max2curve your_output_file.max

Startup of max2curve for selecting histogram parameters

The utility program max2curve reads the contents of the f-k processing output file and computes a probability density function (pdf) for slowness values for each individual frequency band. In order to produce the pdf from re-normalization of a binned histogram, max2curve needs to know about the slowness limits and the number of bins to use. As you have already looked at the picture on the left you will say: stop - you probably mean an apparent velocity histogram or pdf of apparent velocity values for a given frequency.

Smart thought, because the entries for the limits to be specified (Minimum velocity and Maximum velocity) are specified in (apparent) velocity. And additionally one has to specify the Number of velocity classes. Despite these confusing entries, the computation indeed takes place in the slowness domain.

As you are probably now fully confused, let me explain the thoughts behind it: the computation takes place in slowness domain, because our estimates are obtained from measuring time delays. Thus, the error of this measurement goes linear with the time delay estimates and therefore is linear in slowness. So, in terms of error propagation the computation makes clearly sense in slowness domain and not(!) in the inversely related velocity domain.

So why, you may ask, give the limiting values in apparent velocity anyway? Well, this is a concession to the (still) large part of the community who this used to think in wave velocities and not the inverse property.

As already explained before in section xxx, it is possible to filter the result output (.max file(s)) according to two extra criteria. Using the two entries under Sample selection, i.e. specify percentage values for Semblance and Beam power, it is possible to filter individual time window results falling below thresholds for the semblance coefficients and beam power values. Although semblance is a normalized quantity, we choose to develop a relative threshold scheme for filtering results for both semblance and beam power values.

The percentage values should be understood as follows: for all entries in the .max output file, the minimum and maximum values for the semblance coefficient and the beam power values are used as lower (0\%) and upper (100\%) limits. Any given percentage value will compute the threshold as absolute value in between these two limits by linear interpolation. Note that the conditions are combined in the sense of a Wikipedia:logical and. Only time window that surpass the threshold for both values (semblance and beam power) will be kept and passed to the histogram computation. Any other time value will be skipped.

max2curve main window after startup

Grid statistics window of max2curve

High resolution frequency wavenumber Toolbox (Capon's method)

The high resolution frequency wavenumber (hrfk) algorithm follows the ideas of Capon (1969)

. The corresponding toolbox that can be called using the following plugin icon can be used straightforward in nearly the same way as the conventional f-k toolbox.

There is just one more (optional!) parameter that can be set. The calcuation for the hrfk algorithm involves the inversion of the cross spectral matrix estimate from the data. In order to guarantee a numerically stable solution for the Matrix inversion, a regularization parameter (damping constant) can be provided to load the diagonal of the cross spectral matrix before inversion.

Note: by doing so (using a damping constant), you will smooth out your wavenumber power spectra and eventually not obtain much better results compared to the conventional beamforming approach.

Modified Spatial Autocorrelation (MSPAC) Toolbox

Overview

The Modified Spatial Autocorrelation (MSPAC) was introduced by Bettig et al. (2001) after pioneer paper of Aki (1957). This method allows computing spatial autocorrelation coefficients for any arbitary array layouts.

After viewing the group of waveforms in the data viewer, open the MSPAC toolbox by pushing the following plugin icon . Alternatively you can drag your group directly into the SPAC toolbox icon. The SPAC toolbox is now attached to the signal viewer. Four windows should then open as displayed in the figure on the right: (1) a signal time viewer, (2) a map displaying array station locations, (3) a map displaying co-array stations location and (4) the SPAC processing toolbox. This processing toolbox is composed of four tabs:

• Rings tab allows to design rings from the co-array sensors map;
• Time tab allows to select the time limits and part of the signals to be processed and the time window length;
• Output tab is used to set up the frequency band to be processed together with the sampling scale type (linear, log) and number of frequencies, and the output filename
• Status tab provides information about computing status.

Steps involved in the design of the rings.

Defining rings

Few words about selection of the rings ....

In Rings tab:

• Push on button to add a ring
• Specify the inner and outer circles radii of the ring (see step (1) in the figure on the left)
• Press on buttom to adjust the inner and outer circles radii in order to fit at best sensors pairs location (see step (2) in the figure on the left). This ring is composed of 10 pairs of sensors as specified in the "Pairs" column.
• Define the next rings (see step (3) in the figure on the left). Note that you can associate a specific color to each ring.
• Note that you add or remove specific ring by pushing on the or buttons
• Once done, click on to save your rings definition.

• The rings definition can next be loaded by pushing on the button
• The rings definition are saved in ascii format with the following format: inner circle radius (in meters), outer circle radius (in meters), RGB color code associated to the ring

# MinRadius     MaxRadius       Red     Green   Blue
4.23    6.58    255     0       0       10
7.42    9.33    0       255     0       8
11.17   15.41   0       0       255     10

Parameters settings

Time limits

In Time tab:

• Select the time limits to be processed. You can either use the begin (To) and end time (End) of the time series, either specify the begin and end time ( This Time ) or specify the time duration (Duration)

• Specify the time window length for each single analysis window to be processed. You can either choose a window length that is inversely proportionnal to the center frequency of interest (Freq. Dep.) or a fixed time window length (Exactly). Note that the most common setting if Freq. Dep. with values ranging from 50 to 100.

• By pushing on , you can also load the .log file containing all the input parameters saved from a previous computation (see Editing spatial autocorrelation curves for complementary information).

Defining the outputs and starting the computation

In Output tab:

• Choose the minimum and the maximum center frequencies for processing.
• Specify the number of frequencies and the sampling scale type (constant on a linear or logarithmic scale) between the minimum and maximum center frequencies previously defined.

There are two ways for saving computation results:

• check the Dinver target box and provide the output file name in the editing box. The .target output file will contain only the statistics: mean, standard deviation and number of processed windows for each autocorrelation sample. This file contains also the list of selected rings. This file can be further edited by using spac2disp tool.
• check the All results for each time window box and provide the output file name in the editing box. The .max output file will contain the autocorrelation results for each processed time window. This file can be further edited by using max2curve tool.

• Then, click on to start the computation. Status of the computation can be checked in the "Status" sub-menu as displayed below.

Graphical display of spatial autocorrelation curves / contents of output files

The spatial autocorrelation coefficients and the parameters used for the computation are saved in a .target (or .max) file and a .log ascii file, respectively. The .log file is saved in the same folder as the .target (.max) file and contains all parameters used for the computation (see below). This .log file can be re-used in further computation by pushing on button in the MSPAC toolbox.

### Init Log ###
*********** Selected from All signals ***********
Add signal id 3 to component Vertical of station WA_WAU01 at 0.940538 -0.0688223 0
Add signal id 6 to component Vertical of station WA_WAU02 at 5.32643 4.2312 0
Add signal id 9 to component Vertical of station WA_WAU03 at 5.72042 -4.39827 0
Add signal id 12 to component Vertical of station WA_WAU04 at 0.230693 -8.01841 0
Add signal id 15 to component Vertical of station WA_WAU05 at -2.61856 -4.15918 0
Add signal id 18 to component Vertical of station WA_WAU06 at -6.41618 0.965644 0
Add signal id 21 to component Vertical of station WA_WAU07 at -3.53215 4.06034 0
Add signal id 24 to component Vertical of station WA_WAU08 at 0.34882 7.3875 0
Found 8 different stations
Found 28 couples
### End Init Log ###
### Parameters ###
WINDOW MIN LENGTH (s) = 50
WINDOW MAX LENGTH (s) = 100
WINDOW LENGTH TYPE (at least/exactly/freq. dep.) = freq. dep.
DO BAD SAMPLE TOLERANCE (y/n) = n
BAD SAMPLE TOLERANCE (s) = 0
DO WINDOW OVERLAP (y/n) = n
WINDOW OVERLAP (%) = 5
DO BAD SAMPLE THRESHOLD (y/n) = n
BAD SAMPLE THRESHOLD (%) = 99
ANTI-TRIGGERING ON RAW SIGNAL (y/n) = n
USED RAW COMPONENTS = y, n, y, y, y, y, y, y, y, y
RAW STA (s) = 1
RAW LTA (s) = 30
RAW MIN SLTA = 0.2
RAW MAX SLTA = 2.5
MINIMUM FREQUENCY = 2
MAXIMUM FREQUENCY = 30
INVERSED FREQUENCY = n
SAMPLES NUMBER FREQUENCY = 100
SAMPLING TYPE FREQUENCY (0=log, 1=linear)= 0
FROM TIME TYPE = 1
FROM TIME TEXT = 8h19m55.0000s
TO TIME TYPE = 1
TO TIME TEXT = 8h35m22.8400s
OUTPUT TARGET FILE = y
OUTPUT STMAP FILE = n
OUTPUT MAX FILE = n
OUTPUT FILE = D:/WIKI-GEOPSY/DOCWORKSHOP/PROCESSING/LEP_ARRAY01_SPAC
### End Parameters ###
### Process Log ###
--- Ring (4.23 m, 6.58 m)
WA_WAU03-WA_WAU04 azimuth=33.4024 weight=37.0045
WA_WAU07-WA_WAU08 azimuth=40.6065 weight=5.5156
WA_WAU01-WA_WAU02 azimuth=44.4336 weight=3.20576
WA_WAU06-WA_WAU07 azimuth=47.018 weight=2.26964
WA_WAU01-WA_WAU05 azimuth=48.9729 weight=39.7101
WA_WAU04-WA_WAU05 azimuth=126.438 weight=38.7832
WA_WAU05-WA_WAU06 azimuth=126.539 weight=5.42433
WA_WAU01-WA_WAU07 azimuth=137.287 weight=5.64569
WA_WAU01-WA_WAU03 azimuth=137.831 weight=5.16714
WA_WAU02-WA_WAU08 azimuth=147.621 weight=37.274

Graphical display of spatial autocorrelation estimates and corresponding phase velocities

The .target file is Xml file. Graphical display of this file can be done by importing the .target file in the target menu of Dinver(Importing the autocorrelation curve to fit) or by using a post-processing tool called spac2disp that can be launched either from the windows Geopsy menu either from command line.

$ spac2disp LEP_ARRAY01_SPAC.target

• Spatial autocorrelation curves are displayed for each ring in the right panel.
• Histograms of phase velocities derived from overallset of spatial autocorrelation values are displayed in the lower left panel. Histograms are computed within the velocity range [Vmin - Vmax] - equidistandly sampled in slowness, however - with a number of cells Cells specified in the lower panel.

• .....

Graphical display of all spatial autocorrelation estimates

The .max ASCII file contains spatial autocorrelation estimates for all processed windows, component and ring. Format of this file is the following:

• seconds from start' indicates the begin time of the processed window
• cfreq indicates (center) frequency in Hz
• icomp indicates component index (0: vertical, 1: radial, 2: transverse)
• iring indicates the ring index (from 0), in the same order as the one specified in the Rings tab of the MSPAC toolbox.
• autocorr is the spatial autocorrelation value

# File generated by Geopsy, SPAC processing
# The process log is saved in file D:/WIKI-GEOPSY/DOCWORKSHOP/PROCESSING/LEP_ARRAY01_SPAC.log
# icomp can take values 0 (vertical), 1 (radial), and 2 (transverse)
# seconds from start | cfreq | icomp | iring | autocorr
30020 2 0 0 0.718134
30020 2 0 1 0.839546
30020 2 0 2 0.654078
30020 2.05546 0 0 0.681075
30020 2.05546 0 1 0.801923
30020 2.05546 0 2 0.710762
30070 2 0 0 0.839481

The .max file can also be edited by using max2curve tool on a command line or from the Windows Geopsy menu.

$max2curve LEP_ARRAY01_SPAC.max

Loading parameters when using max2curve to display MSPAC results

A popup window will then appear allowing to specify:

• component and ring indices as defined above
• the miminum and maximum mspac values and the number of cells to be used for defining the histogram properties

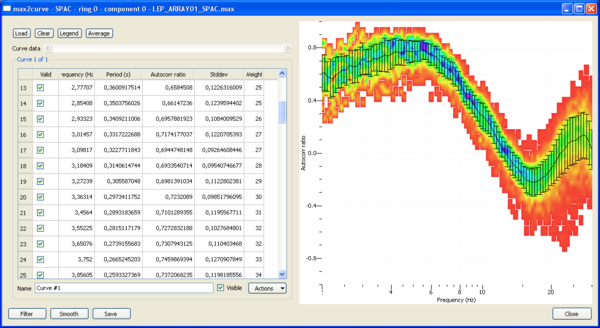

Histograms of mspac estimates

Histograms are displayed on the right panel. The color scale indicates the histogram values. By default, histograms are overlaid by the mean spatial autocorrelation +/- standard deviation curves whose corresponding values are indicated in the left panel. This 'by default' curves can be either hidden by unchecking the visible box on the bottom part of the left panel or remove by using the Remove option in the Actions tab attached to the curve. Note also that you can perform several actions on this curve.

Statistics toolbox
